Industrial Grade | 15kV Air | 8kV Contact | Metal | Mountable | DIN Rail |480 Mbps

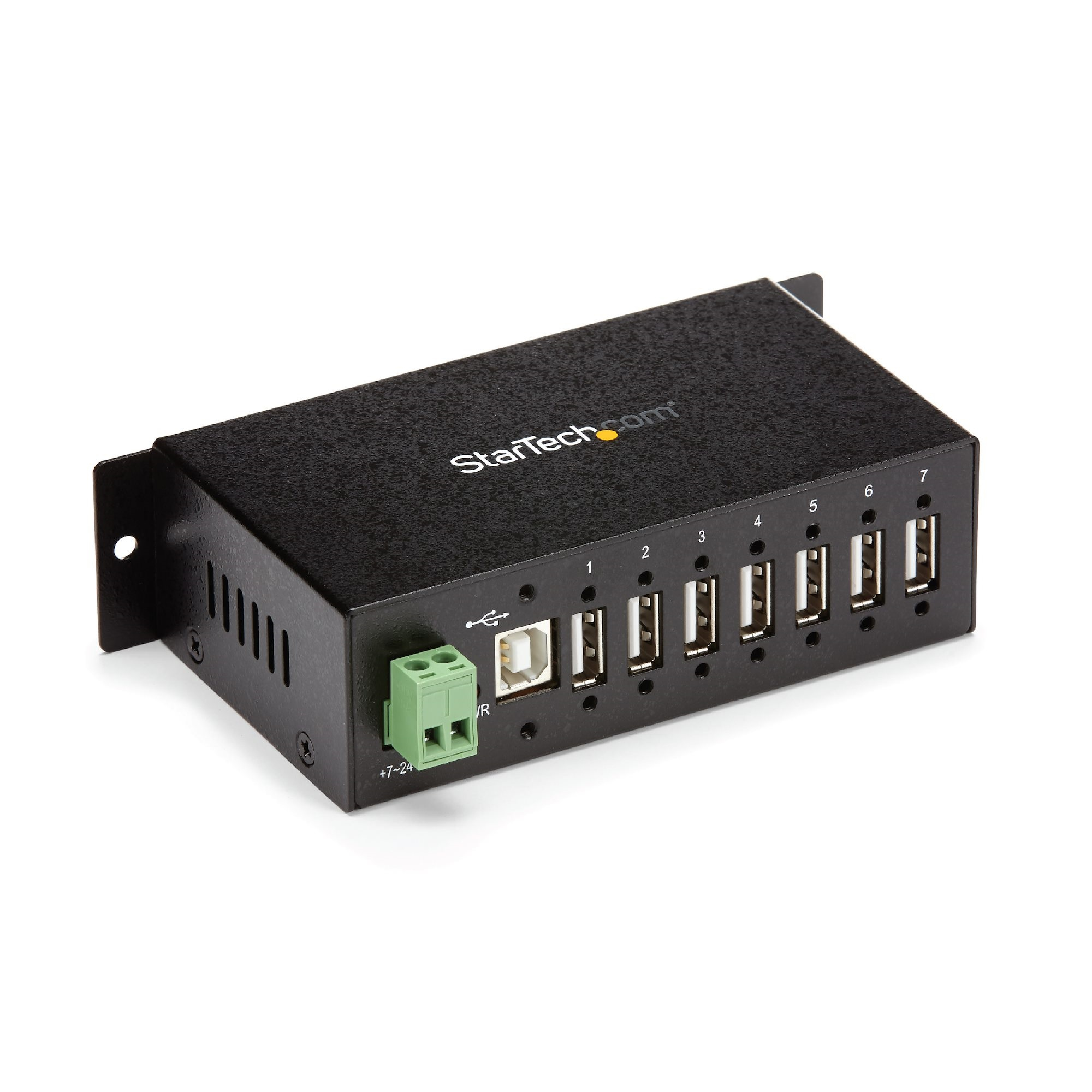

This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect More USB Devices
Designed for a high volume of connections, this robust USB 2.0 hub offers 7 connection ports, for connecting more USB devices and peripherals.
Locate the Hub Where You Need It Most
With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.
Works with Older USB Devices
The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.
The ST7200USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- A single USB host connection provides 7 additional USB ports with per port surge protection
- Surface and DIN mounting options and terminal block power input to suit a wide range of industrial applications
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Power |
| Input voltage |
7 - 24 V |
| Weight & dimensions |
| Width |
61.5 mm |
| Depth |
133 mm |
| Height |
36.3 mm |
| Weight |
283 g |
| Ports & interfaces |
| Ports quantity |
7 |
| Host interface |
USB 2.0 Type-B |
| Hub interfaces |
USB 2.0 |
| USB 2.0 ports quantity |
7 |
| Terminal block port |
Y |
| Other features |
| Chipset |
Terminus - FE2.1 |
| Packaging content |
| Cables included |
USB |
| Manual |
Y |
| DIN rail kit included |
Y |
| Performance |
| Mean time between failures (MTBF) |
170227 h |
| Packaging data |
| Package width |
216 mm |
| Package depth |
151 mm |
| Package height |
51 mm |
| Package weight |
500 g |
| Features |
| Data transfer rate |
480 Mbit/s |
| Product colour |
Black |
| Housing material |
Steel |
| Surge protection |
Y |
| LED indicators |
Y |
| Hot-swap |
Y |
| Plug and Play |
Y |
| Certification |
CE, FCC, RoHS, REACH, TAA |
Features
StarTech.com 7-Port Industrial USB 2.0 Hub with ESD & 350W Surge Protection. Host interface: USB 2.0 Type-B, Hub interfaces: USB 2.0. Data transfer rate: 480 Mbit/s, Product colour: Black, Housing material: Steel. Input voltage: 7 - 24 V. Width: 61.5 mm, Depth: 133 mm, Height: 36.3 mm. Package width: 216 mm, Package depth: 151 mm, Package height: 51 mm
