Add 4 DIN Rail-mountable RS232 Serial ports to any system through USB

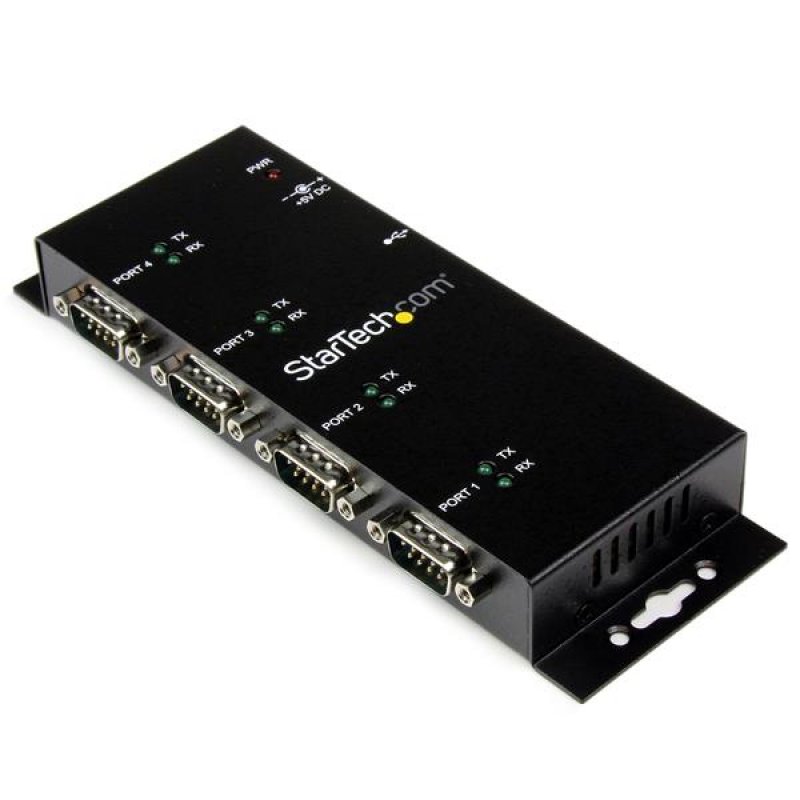

The ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into four RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated wallmount brackets and included DIN Rail clips for versatile mounting options
- Rugged all-metal enclosure for added durability in harsh environments
- Easy plug and play installation, with our USB Powered adapter - no power outlet required
Specs
| System requirements |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterp |
| Mac operating systems supported |
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Linux operating systems supported |
Y |
| Server operating systems supported |
Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Other operating systems supported |
Windows XP Embedded |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Power |
| Power source type |
USB |
| Power plug type |
Type M |
| Weight & dimensions |
| Width |
59 mm |
| Depth |
1788 mm |
| Height |
23 mm |
| Weight |
300 g |
| Ports & interfaces |
| Ports quantity |
4 |
| Host interface |
USB 2.0 Type-B |
| Hub interfaces |
Serial |
| RS-232 ports |
4 |
| Other features |
| Chipset |
FTDI - FT4232HL |
| Packaging content |
| Cables included |
USB |
| Manual |
Y |
| DIN rail kit included |
Y |
| Drivers included |
Y |
| Performance |
| Data bits |
7,8 |
| Stop bits |
1,2 |
| Parity bit |
Even, Mark, N, Odd, Space |
| FIFO (First In, First Out) |
256 B |
| Baud rate |
921.6 Kbit/s |
| Mean time between failures (MTBF) |
282713.5 h |
| Packaging data |
| Package width |
216 mm |
| Package depth |
152 mm |
| Package height |
50 mm |
| Package weight |
518 g |
| Quantity per pack |
1 pc(s) |
| Features |
| Product colour |
Black |
| Housing material |
Steel |
| LED indicators |
Activity |
| Certification |
CE, FCC, RoHS |
Features
StarTech.com 4 Port USB to DB9 RS232 Serial Adapter Hub – Industrial DIN Rail and Wall Mountable. Host interface: USB 2.0 Type-B, Hub interfaces: Serial. Product colour: Black, Housing material: Steel, LED indicators: Activity. Power source type: USB, Power plug type: Type M. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows.... Width: 59 mm, Depth: 1788 mm, Height: 23 mm
Product Description
Add 4 DIN Rail-mountable RS232 Serial ports to any system through USB
The ICUSB2324I 4-Port Industrial USB to Serial Hub with DIN Rail Clips converts a single USB port into four RS232 serial ports, enabling you to connect to, monitor and control your serial devices.
Featuring rugged metal construction, with sturdy wall-mounting brackets and top-hat DIN Rail clips (included), this USB to Serial Hub provides versatile mounting options and a robust solution for both harsh industrial environments and simple desktop installations.
This USB powered adapter also retains assigned serial COM port values once connected, allowing the same values to be automatically reassigned to the ports provided by the adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Integrated wallmount brackets and included DIN Rail clips for versatile mounting options
- Rugged all-metal enclosure for added durability in harsh environments
- Easy plug and play installation, with our USB Powered adapter - no power outlet required
