startech Thunderbolt 3 Mini Dock Dual Hdmi 4k Tb3dkm2hdl |

startech Thunderbolt 3 Mini Dock Dual Hdmi 4k Tb3dkm2hdl - AD01
[TB3DKM2HDL]

TEMPORARILY OUT OF STOCK


Part Number: TB3DKM2HDL

Manufacturer: STARTECH

Condition: New

Short Description:

startech Thunderbolt 3 Mini Dock Dual Hdmi 4k Tb3dkm2hdl

startech Thunderbolt 3 Mini Dock Dual Hdmi 4k Tb3dkm2hdl - AD01

£74.00
£88.80 - Inc VAT




Thank you for your request, PLEASE RE-TYPE THE PART NUMBER IN THE SEARCH BOX


Stock Status: 1x unit in stock

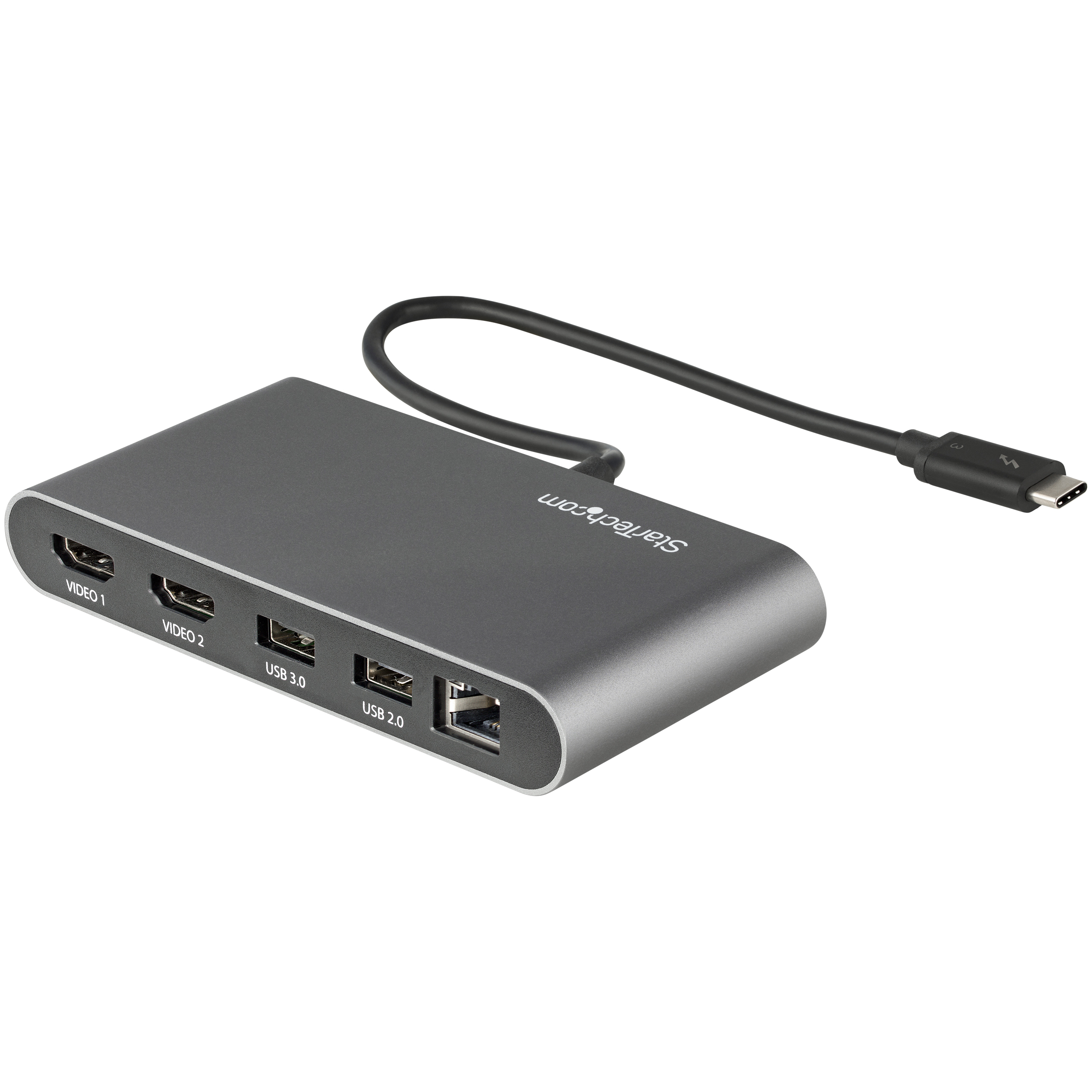

Laptop Docking Station | Mac & Windows® | Bus-Powered | 2x USB-AThis certified Thunderbolt™ 3 docking station is a compact mini dock, delivering essential connections for productivity. The bus-powered dock connects dual 4K HDMI displays, Gigabit Ethernet, and two USB-A (USB 3.2 / 2.0) ports and for flexible set up, the attached Thunderbolt 3 cable has an extended length of (11 in./ 28 cm).Create a Dual-4K 60Hz WorkstationGreat for editing 4K video or other Ultra HD tasks, this portable Thunderbolt™ 3 to HDMI dock supports 40 Gbps of throughput and 4K resolution at 60Hz on dual HDMI monitors, through a single Thunderbolt™ 3 port. Run resource-demanding applications on two independent displays without draining system resources.Connect your laptop to:• 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)Compact Size & 11-Inch Attached Host CableAt just 2.4" x 4.9" (6.1 cm x 12.4 cm), this dock takes up minimal room on your desk and in your laptop case. The dock's 28 cm (11 inches) attached cable provides extended reach to reduce port/connector strain on MacBooks and laptops on riser stands, or if needed, offers the flexibility to position dock further away from the laptop on your desk.The Ports You Need Most• 1x USB 3.2 Gen 1 Type-A port (5Gbps)• 1x USB 2.0 Type-A port• 1x Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support)Ideal for Power-Demanding Workstation SetupsAs many high powered, later generation laptops optimally require more than 100W of power to stay charged, some users prefer to use their laptop's power adapter vs. using their docking stations to keep laptops charged.This bus-powered TB3 mini dock is ideally suited for those users, providing full Thunderbolt™ 3 docking station performance and functionality, while their workstation laptops are separately charged.The TB3DKM2HDL is Thunderbolt Certified and backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage

Reviews

Specs

Weight & dimensions
Width 69 mm
Depth 124 mm
Height 27 mm
Weight 147.8 g
Ports & interfaces
Connectivity technology Wired
Host interface Thunderbolt 3
USB 2.0 ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
HDMI ports quantity 2
Microphone in N
Packaging content
Manual Y
Other features
Cable length 0.28 m
Chipset Intel JHL6540 (Alpine Ridge), Texas Instruments TPS65983A, Parade PS176, ASMedia ASM1042A, Intel WGI210
Operational conditions
Operating temperature (T-T) 5 - 40 °C
Storage temperature (T-T) -20 - 70 °C
Operating relative humidity (H-H) 0 - 95%
Networking
Ethernet LAN Y
Ethernet LAN (RJ-45) ports 1
Ethernet LAN data rates 10,100,1000 Mbit/s
Wake-on-LAN ready Y
Networking standards IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u
Performance
Product colour Grey
Card reader integrated N
Maximum digital resolution 3840 x 2160 pixels
Number of displays supported 2
Software
Windows operating systems supported Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows
Mac operating systems supported Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Server operating systems supported Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 x64
Packaging data
Package width 139 mm
Package depth 195 mm
Package height 37 mm
Package weight 270 g
Logistics data
Products per master (outer) case 24 pc(s)
Master (outer) case width 300 mm
Master (outer) case length 437 mm
Master (outer) case height 270 mm
Harmonized System (HS) code 84733020
Sustainability
Sustainability certificates RoHS

Related Products

Features

StarTech.com Thunderbolt 3 Mini Dock - Portable Dual Monitor Docking Station w/HDMI 4K 60Hz, 2x USB-A Hub (3.0/2.0), GbE - 11in/28cm Cable - TB3 Multiport Adapter - Mac/Windows. Connectivity technology: Wired, Host interface: Thunderbolt 3. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u. Product colour: Grey, Maximum digital resolution: 3840 x 2160 pixels. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 x64. Sustainability certificates: RoHS

Product Description

Laptop Docking Station | Mac & Windows® | Bus-Powered | 2x USB-AThis certified Thunderbolt™ 3 docking station is a compact mini dock, delivering essential connections for productivity. The bus-powered dock connects dual 4K HDMI displays, Gigabit Ethernet, and two USB-A (USB 3.2 / 2.0) ports and for flexible set up, the attached Thunderbolt 3 cable has an extended length of (11 in./ 28 cm).Create a Dual-4K 60Hz WorkstationGreat for editing 4K video or other Ultra HD tasks, this portable Thunderbolt™ 3 to HDMI dock supports 40 Gbps of throughput and 4K resolution at 60Hz on dual HDMI monitors, through a single Thunderbolt™ 3 port. Run resource-demanding applications on two independent displays without draining system resources.Connect your laptop to:• 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)Compact Size & 11-Inch Attached Host CableAt just 2.4" x 4.9" (6.1 cm x 12.4 cm), this dock takes up minimal room on your desk and in your laptop case. The dock's 28 cm (11 inches) attached cable provides extended reach to reduce port/connector strain on MacBooks and laptops on riser stands, or if needed, offers the flexibility to position dock further away from the laptop on your desk.The Ports You Need Most• 1x USB 3.2 Gen 1 Type-A port (5Gbps)• 1x USB 2.0 Type-A port• 1x Gigabit Ethernet port (with PXE Boot and Wake-on-LAN support)Ideal for Power-Demanding Workstation SetupsAs many high powered, later generation laptops optimally require more than 100W of power to stay charged, some users prefer to use their laptop's power adapter vs. using their docking stations to keep laptops charged.This bus-powered TB3 mini dock is ideally suited for those users, providing full Thunderbolt™ 3 docking station performance and functionality, while their workstation laptops are separately charged.The TB3DKM2HDL is Thunderbolt Certified and backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage
