Stock Status: 1x unit in stock

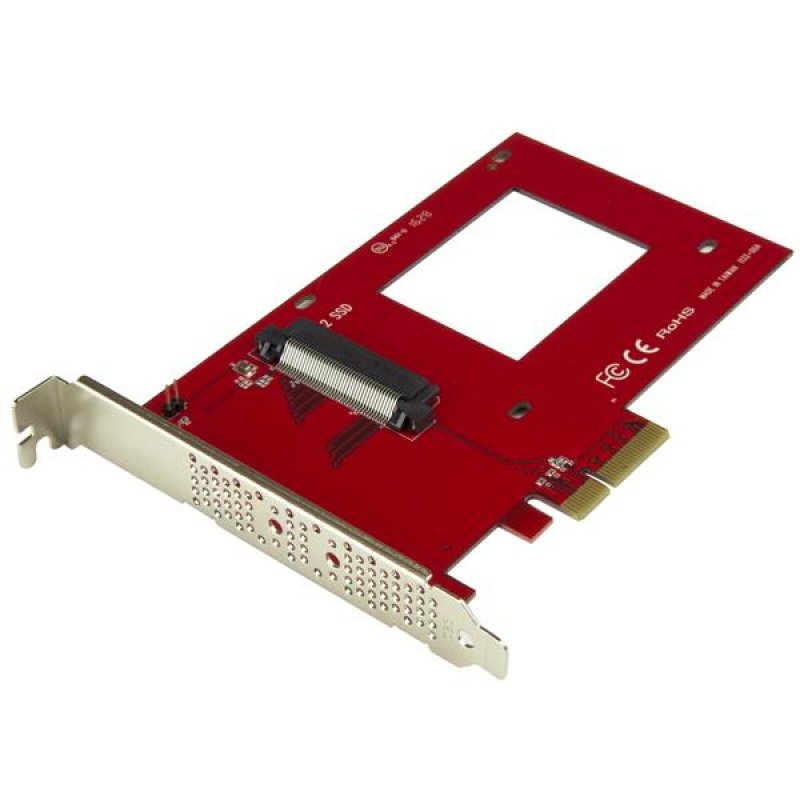

Get ultra-fast data access by adding an NVMe U.2 SSD to your computer. This U.2 to PCIe adapter lets you add a high-speed, U.2 (4-lane PCIe) 2.5" NVMe SSD, such as the Intel® 750 Series drive, to a PC with an available x4 PCI Express expansion slot.
You can mount the PCIe U.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.
Boost your system speed and performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe U.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an NVMe U.2 PCIe-based SSD through ultra-fast x4 PCIe. With the U.2 PCIe-based drive in place, the adapter gives your computer a significant speed boost.
Easy to install
The expansion card is equipped with a full-profile bracket and doesn’t require an adapter cable for installation, this helps to reduce clutter and simplifies system builds. The drive connects directly to the SFF-8639 connector on the adapter, and the adapter connects directly to the computer motherboard.
The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0.
The PEX4SFF8639 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specs
| Ports & interfaces |
| Host interface |
PCIe |
| Output interface |
U.2 |
| Operational conditions |
| Operating temperature (T-T) |
5 - 50 °C |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating relative humidity (H-H) |
15 - 90% |
| Weight & dimensions |
| Width |
122 mm |
| Depth |
165 mm |
| Height |
22 mm |
| Weight |
65 g |
| Design |
| Internal |
Y |
| Product colour |
Red |
| Hot-swap |
N |
| RoHS compliance |
Y |
| Certification |
CE, FCC |
| Packaging data |
| Quick installation guide |
Y |
| Package width |
160 mm |
| Package depth |
220 mm |
| Package height |
45 mm |
| Package weight |
161 g |
| Screws included |
Y |
| Features |
| Plug and Play |
Y |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com PEX4SFF8639. Host interface: PCIe, Output interface: U.2. Product colour: Red, Certification: CE, FCC. Width: 122 mm, Depth: 165 mm, Height: 22 mm. Package width: 160 mm, Package depth: 220 mm, Package height: 45 mm
Product Description
Get ultra-fast data access by adding an NVMe U.2 SSD to your computer. This U.2 to PCIe adapter lets you add a high-speed, U.2 (4-lane PCIe) 2.5" NVMe SSD, such as the Intel® 750 Series drive, to a PC with an available x4 PCI Express expansion slot.
You can mount the PCIe U.2 drive directly onto the adapter, giving you an easy and convenient way to improve your system performance and expand overall internal storage.
Boost your system speed and performance
The expansion card lets you take full advantage of the fast performance and compact size of PCIe U.2 internal solid-state drives. The adapter connects directly to your computer motherboard to support an NVMe U.2 PCIe-based SSD through ultra-fast x4 PCIe. With the U.2 PCIe-based drive in place, the adapter gives your computer a significant speed boost.
Easy to install
The expansion card is equipped with a full-profile bracket and doesn’t require an adapter cable for installation, this helps to reduce clutter and simplifies system builds. The drive connects directly to the SFF-8639 connector on the adapter, and the adapter connects directly to the computer motherboard.
The adapter is compatible with PCIe 3.0 motherboards and is also backward compatible with PCIe 2.0 and PCIe 1.0.
The PEX4SFF8639 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
