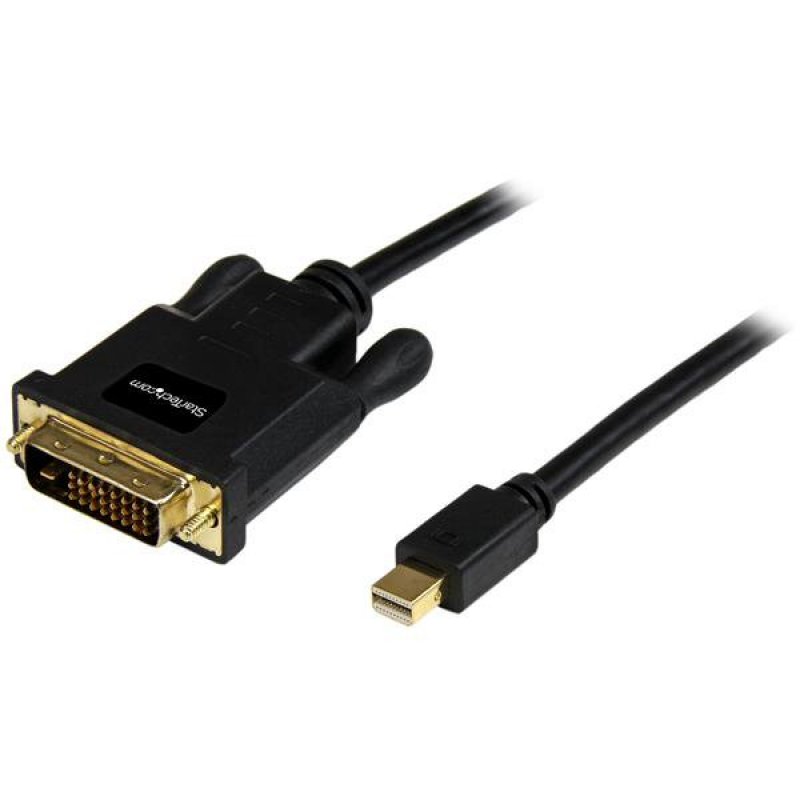

Connect a DVI display to a Mini DisplayPort-equipped PC or MAC over a 6 foot distance – Black
The MDP2DVIMM6B Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook or Microsoft Surface Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 6 feet (1.8 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel Thunderbolt, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM6B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Connect a Mini DisplayPort source directly to a DVI monitor or projector, with a single male-male cable
Specs
| Features |
| Cable length |
1.8 m |
| Connector 1 |
mini DisplayPort |
| Connector 2 |
DVI-D |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Colour of product |
Black |
| Maximum resolution |
1920 x 1200 pixels |
| Plug and Play |
Y |
| RoHS compliance |
Y |
| Certification |
CE, FCC, REACH |
| Chipset |
NXP - 3361 |
| Converter type |
Passive |
| Product colour |
Black |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Supported video modes |
1080p |
| DisplayPort version |
1.2 |
| Dual Link DVI |
N |
| Operational conditions |
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
40 - 85% |
| Weight & dimensions |
| Weight |
101.3 g |
| Width |
40 mm |
| Depth |
1800 mm |
| Height |
15 mm |
| Package width |
160 mm |
| Package depth |
240 mm |
| Package height |
20 mm |
| Package weight |
125 g |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Technical details |
| Sustainability certificates |
RoHS |
| Logistics data |
| Master (outer) case width |
42 cm |
| Master (outer) case length |
41.5 cm |
| Master (outer) case height |
43.5 cm |
| Products per master (outer) case |
150 pc(s) |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
160 mm |
| Package depth |
240 mm |
| Package height |
20 mm |
| Package weight |
125 g |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com 6ft (1.8m) Mini DisplayPort to DVI Cable - Mini DP to DVI Adapter Cable - 1080p Video - Passive mDP 1.2 to DVI-D Single Link - mDP or Thunderbolt 1/2 Mac/PC to DVI Monitor. Cable length: 1.8 m, Connector 1: mini DisplayPort, Connector 2: DVI-D. Sustainability certificates: RoHS. Weight: 101.3 g, Width: 40 mm, Depth: 1800 mm. Quantity per pack: 1 pc(s), Package width: 160 mm, Package depth: 240 mm. Master (outer) case width: 42 cm, Master (outer) case length: 41.5 cm, Master (outer) case height: 43.5 cm
Product Description
Connect a DVI display to a Mini DisplayPort-equipped PC or MAC over a 6 foot distance – Black
The MDP2DVIMM6B Mini DisplayPort to DVI Adapter Cable lets you directly connect your Mini DP video source (such as any of your MacBook or Microsoft Surface Pro devices with mDP) to a DVI monitor or projector, eliminating the expense of having to upgrade to a Mini DisplayPort-capable monitor.
The adapter cable is 6 feet (1.8 m) in length, and features male-to-male connectors, allowing you to connect your Mini DisplayPort source directly to a DVI display with no additional cabling required.
Compatible with Intel Thunderbolt, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
MDP2DVIMM6B is a passive adapter that requires a dual-mode DisplayPort port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Connect a Mini DisplayPort source directly to a DVI monitor or projector, with a single male-male cable
