Stock Status: 1x unit in stock

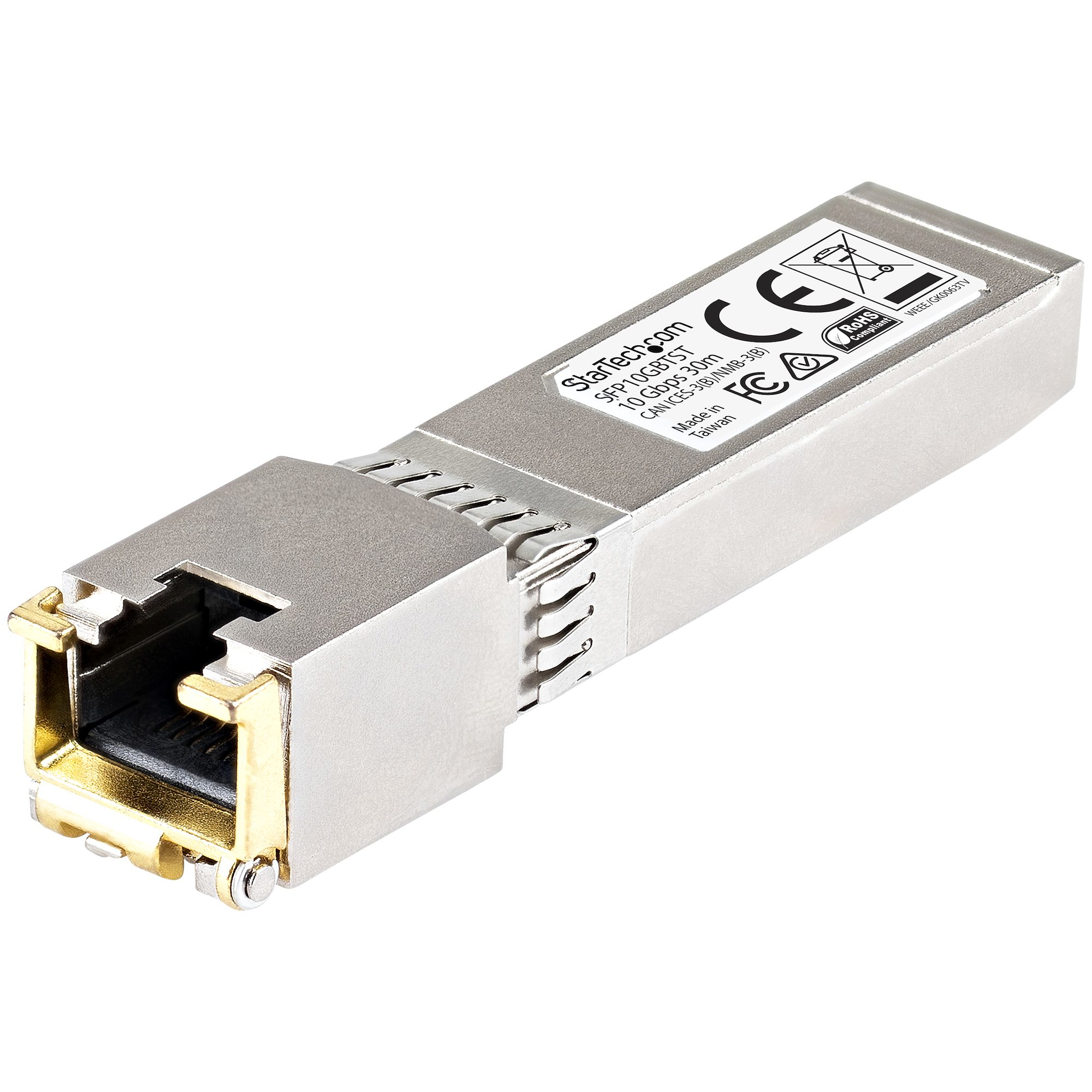

10Gbps | Copper | RJ45 | 30 m (100 ft) | Lifetime WarrantyThe SFP10GBTCST is a Cisco compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10GBASE-T compliant networks, with a maximum distance of up to 30 m (98.4 ft).Technical Specifications:• Maximum Data Transfer Rate: 10 Gbps• Type: Copper• Connection Type: RJ45 Connector• Maximum Transfer Distance: 30 m (98.4 ft)• MTBF: 4,598,430 hours• Digital Diagnostics Monitoring (DDM): NoThis SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 90 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Weight & dimensions |
| Width |
13.4 mm |
| Depth |
69.8 mm |
| Height |
14 mm |
| Weight |
58 g |
| Power |
| Power consumption (typical) |
2.3 W |
| Performance |
| SFP transceiver type |
Copper |
| Maximum data transfer rate |
10000 Mbit/s |
| Interface type |
SFP+ |
| Maximum transfer distance |
30 m |
| Networking standards |
IEEE 802.3an |
| Duplex system |
Full, Half |
| Auto MDI/MDI-X |
Y |
| Digital Diagnostics Monitoring (DDM) |
N |
| Features |
| Product colour |
Silver |
| Housing material |
Zinc steel |
| Hot-swap |
Y |
| Mean time between failures (MTBF) |
4598430 h |
| Brand compatibility |
Cisco |
| Certification |
CE, FCC |
| Logistics data |
| Master (outer) case width |
34 cm |
| Master (outer) case length |
63.8 cm |
| Master (outer) case height |
29 cm |
| Products per master (outer) case |
150 pc(s) |
| Packaging data |
| Number of products included |
1 pc(s) |
| Package width |
75 mm |
| Package depth |
120 mm |
| Package height |
33 mm |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com Cisco SFP-10GB-TC Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m - Cisco Firepower, ASR1000, ASR9000. SFP transceiver type: Copper, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Housing material: Zinc steel, Mean time between failures (MTBF): 4598430 h. Power consumption (typical): 2.3 W. Width: 13.4 mm, Depth: 69.8 mm, Height: 14 mm. Number of products included: 1 pc(s), Package width: 75 mm, Package depth: 120 mm
Product Description
10Gbps | Copper | RJ45 | 30 m (100 ft) | Lifetime WarrantyThe SFP10GBTCST is a Cisco compatible copper transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10GBASE-T compliant networks, with a maximum distance of up to 30 m (98.4 ft).Technical Specifications:• Maximum Data Transfer Rate: 10 Gbps• Type: Copper• Connection Type: RJ45 Connector• Maximum Transfer Distance: 30 m (98.4 ft)• MTBF: 4,598,430 hours• Digital Diagnostics Monitoring (DDM): NoThis SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPsAll StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.The StarTech.com Advantage
