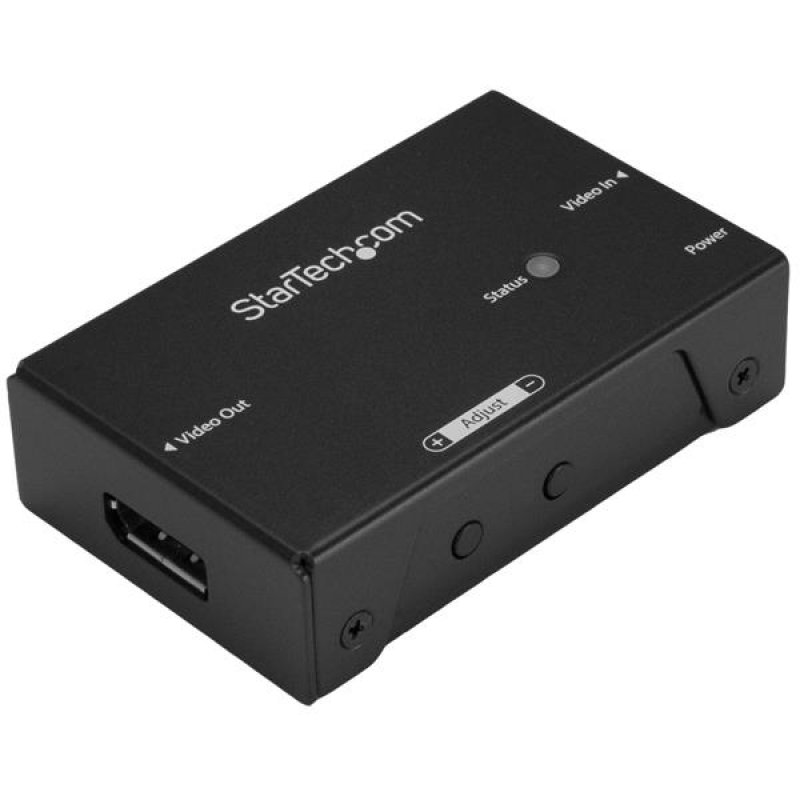

This DisplayPort signal booster lets you increase the signal strength of your DP video source using standard DisplayPort cables. You can achieve resolutions up to 4K at 60Hz, and depending on your desired resolution, the booster supports varying distances up to 65 ft. (20 m) away at 1080p 60Hz resolution. For inline installations, you can place the booster between two DisplayPort cables, up to 50 ft. in length at the video input, and up to 15 ft. in length at the video output.
Maintains Ultra HD 4K video signals
When extending DisplayPort over long distances using standard video cabling, higher resolutions can become unavailable. Using the DP signal booster ensures that you can depend on UHD resolutions up to 4K at 60Hz at up to 22 ft. (7 m). You can achieve even greater distances with lower resolution support -- up to 4K at 30Hz, at up to 42 ft. (13 m), and 1080p at 60Hz at up to 65 ft. (20 m).
Easy and discreet installation
With its small form factor, the DisplayPort booster is easy to hide, for a discreet installation. It includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard DP cables, the DisplayPort booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.
Compatible with varying distances
The booster makes it easy to adjust your DisplayPort signal strength based on the distance of your cables, with equalization adjustment buttons. This means that you can adjust the amplification of your DisplayPort signal, to ensure your DisplayPort signal will be flawless even at distances up to 65 ft. (20 m). Support for varying distances makes the booster perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.
The DPBOOST is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Specs
| Technical details |
| Audio support |
Y |
| Sustainability certificates |
RoHS |
| Ports & interfaces |
| Video in |
DisplayPort |
| Video out |
DisplayPort |
| Weight & dimensions |
| Dimensions (WxDxH) |
50 x 80 x 21 mm |
| Width |
50 mm |
| Depth |
80 mm |
| Height |
21 mm |
| Weight |
152 g |
| Packaging data |
| Package dimensions (WxDxH) |
143 x 168 x 63 mm |
| Package weight |
398 g |
| Package width |
142 mm |
| Package depth |
168 mm |
| Package height |
70 mm |
| Power |
| AC input voltage |
100-240 V |
| Operating voltage |
5 V |
| Input current |
0.3 A |
| Output current |
1 A |
| Power consumption (typical) |
5 W |
| External power adapter |
Y |
| Packaging content |
| AC adapter included |
Y |
| Cables included |
USB |
| Features |
| Type |
AV repeater |
| Maximum resolution |
3840 x 2160 pixels |
| Maximum transfer distance |
20 m |
| Audio system |
Multichannel |
| Audio output channels |
7.1 channels |
| Supported video modes |
720p,1080p,2160p |
| Supported graphics resolutions |
1280 x 720 (HD 720),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160 |
| Rack mounting |
Y |
| Product colour |
Black |
| RoHS compliance |
Y |
| Certification |
CE, FCC |
Features
StarTech.com DisplayPort Signal Booster - DP Extender - 4K 60Hz. Type: AV repeater, Maximum resolution: 3840 x 2160 pixels, Maximum transfer distance: 20 m. Video in: DisplayPort, Video out: DisplayPort. AC input voltage: 100-240 V, Operating voltage: 5 V, Input current: 0.3 A. Dimensions (WxDxH): 50 x 80 x 21 mm, Width: 50 mm, Depth: 80 mm. Package dimensions (WxDxH): 143 x 168 x 63 mm, Package width: 142 mm, Package depth: 168 mm
Product Description
This DisplayPort signal booster lets you increase the signal strength of your DP video source using standard DisplayPort cables. You can achieve resolutions up to 4K at 60Hz, and depending on your desired resolution, the booster supports varying distances up to 65 ft. (20 m) away at 1080p 60Hz resolution. For inline installations, you can place the booster between two DisplayPort cables, up to 50 ft. in length at the video input, and up to 15 ft. in length at the video output.
Maintains Ultra HD 4K video signals
When extending DisplayPort over long distances using standard video cabling, higher resolutions can become unavailable. Using the DP signal booster ensures that you can depend on UHD resolutions up to 4K at 60Hz at up to 22 ft. (7 m). You can achieve even greater distances with lower resolution support -- up to 4K at 30Hz, at up to 42 ft. (13 m), and 1080p at 60Hz at up to 65 ft. (20 m).
Easy and discreet installation
With its small form factor, the DisplayPort booster is easy to hide, for a discreet installation. It includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard DP cables, the DisplayPort booster is a cost-effective alternative to more expensive extension systems that require the installation of a CAT5 or CAT6 cabling infrastructure.
Compatible with varying distances
The booster makes it easy to adjust your DisplayPort signal strength based on the distance of your cables, with equalization adjustment buttons. This means that you can adjust the amplification of your DisplayPort signal, to ensure your DisplayPort signal will be flawless even at distances up to 65 ft. (20 m). Support for varying distances makes the booster perfect for multi-device deployment across large institutions, such as boardrooms in corporate offices, classrooms in schools, or waiting rooms in hospitals, as these applications may require varied distances in different rooms.
The DPBOOST is backed by a 2-year StarTech.com warranty and free lifetime technical support.
