Stock Status: 1x unit in stock
1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

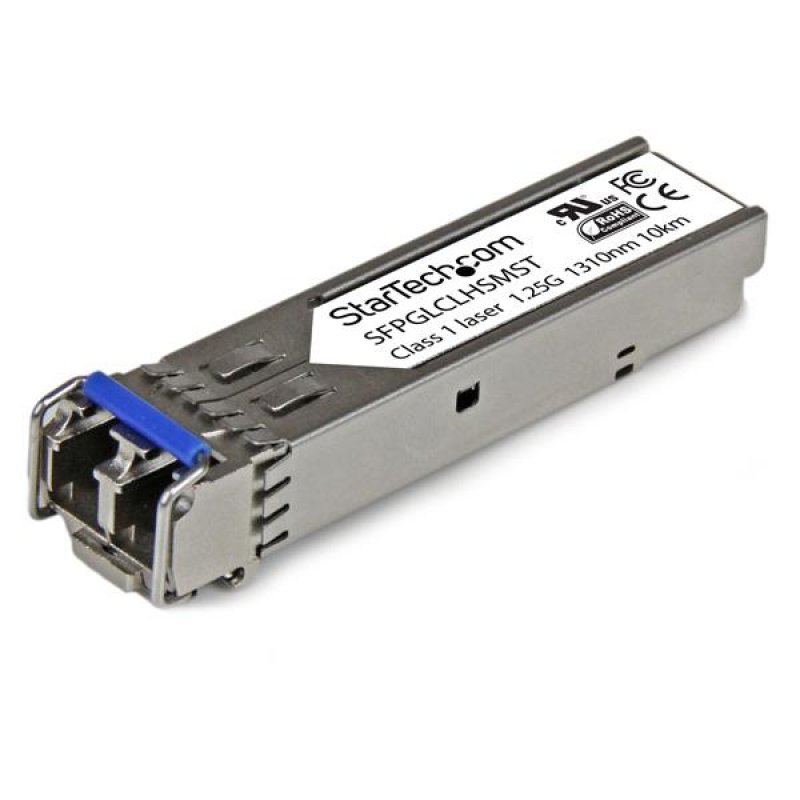

The SFPGLCLHSMST is a Cisco GLC-LH-SM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
Wavelength: 1310 nm
Maximum Data Transfer Rate: 1.25 Gbps
Type: Single Mode / Multimode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 3,092,408 hours
Power Consumption: Less than 1 Watt
Digital Diagnostics Monitoring (DDM): No
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% compatibility with Cisco GLC-LH-SM guaranteed
- StarTech.com SFP modules are backed by a lifetime warranty
- Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
30 - 70% |
| Weight & dimensions |
| Width |
12 mm |
| Depth |
60 mm |
| Height |
10 mm |
| Weight |
20 g |
| Package width |
119 mm |
| Package depth |
93 mm |
| Package height |
33 mm |
| Package weight |
46 g |
| Certificates |
| Certification |
CE, FCC, UL |
| RoHS compliance |
Y |
| Power |
| Power consumption (typical) |
1 W |
| Networking |
| Data transfer rate (max) |
1250 Mbit/s |
| Interface type |
SFP |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3z |
| SFP transceiver type |
LH,LX |
| Maximum data transfer rate |
1250 Mbit/s |
| Packaging content |
| Number of products included |
1 pc(s) |
| Performance |
| Cable type |
Fiber optic |
| Multi-mode fiber (MMF) supported |
Y |
| Wavelength |
1310 nm |
| Product colour |
Stainless steel |
| Hot-swap |
Y |
| Maximum transfer distance |
10000 m |
| Mean time between failures (MTBF) |
3092408 h |
| Duplex system |
Full, Half |
| Full duplex |
Y |
| Digital Diagnostics Monitoring (DDM) |
N |
| Wavelength-division multiplexing (WDM) |
N |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
1250 Mbit/s |
| Interface type |
SFP |
| SFP transceiver standard |
LH,LX |
| Fiber optic connector |
LC |
| Networking standards |
IEEE 802.3z |
| Features |
| Product colour |
Stainless steel |
| Hot-swap |
Y |
| Mean time between failures (MTBF) |
3092408 h |
| RoHS compliance |
Y |
| Certification |
CE, FCC, UL |
| Logistics data |
| Master (outer) case width |
25.1 cm |
| Master (outer) case length |
30.3 cm |
| Master (outer) case height |
21.1 cm |
| Products per master (outer) case |
36 pc(s) |
| Packaging data |
| Number of products included |
1 pc(s) |
| Package width |
119 mm |
| Package depth |
93 mm |
| Package height |
33 mm |
| Package weight |
46 g |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com Cisco GLC-LH-SM Compatible SFP Module - 1000BASE-LX/LH - - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - Cisco IE3400, IE3300, IE3200. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP. Product colour: Stainless steel, Mean time between failures (MTBF): 3092408 h, Certification: CE, FCC, UL. Power consumption (typical): 1 W. Width: 12 mm, Depth: 60 mm, Height: 10 mm. Number of products included: 1 pc(s), Package width: 119 mm, Package depth: 93 mm
Product Description
1000 Mbps (1 Gbps) | Single & Multi Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty
The SFPGLCLHSMST is a Cisco GLC-LH-SM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
Wavelength: 1310 nm
Maximum Data Transfer Rate: 1.25 Gbps
Type: Single Mode / Multimode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 3,092,408 hours
Power Consumption: Less than 1 Watt
Digital Diagnostics Monitoring (DDM): No
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% compatibility with Cisco GLC-LH-SM guaranteed
- StarTech.com SFP modules are backed by a lifetime warranty
- Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards
