Stock Status: 1x unit in stock
8 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty

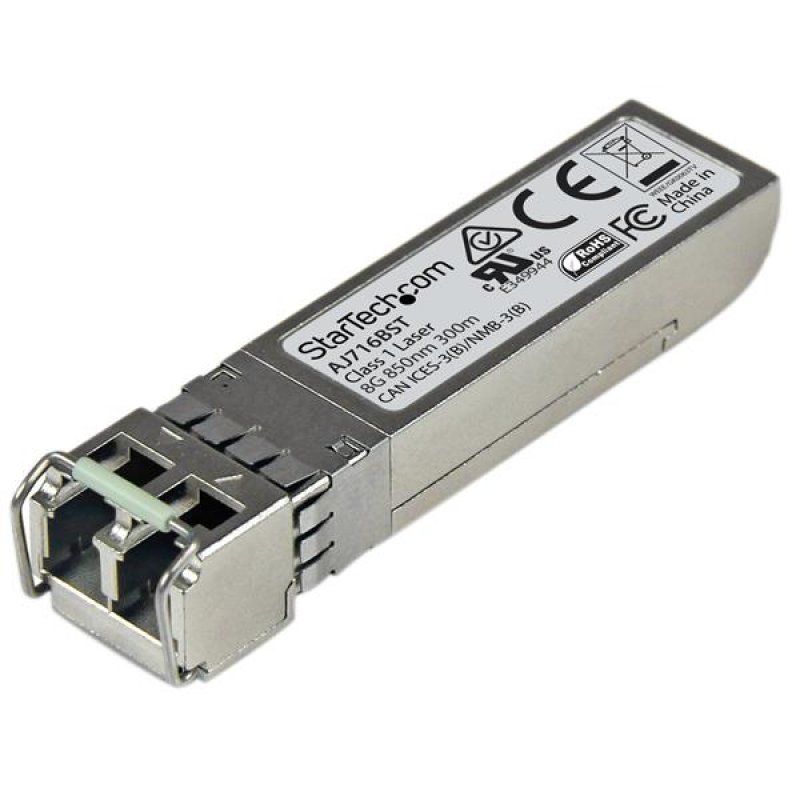

The AJ716BST is an HP AJ716B compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 8Gb fiber channel connectivity over fiber cable, for 8GFC compliant networks, with a maximum distance of up to 300 m (984 ft.).
Technical Specifications:
Wavelength: 850 nm
Maximum Data Transfer Rate: 8 Gbps
Type: Multimode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 300 m (984 ft.)
MTBF: 1,967,709 hours
Power Consumption: Less than 1.2 Watts
Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% HPE AJ716B COMPATIBLE: Works with HPE switches like SN4000, SN6500, SN8600B, StoreFabric, and others
- TECHNICAL SPECS: 8G Fiber Channel SW
- 8Gbps
Specs
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Weight & dimensions |
| Width |
13.9 mm |
| Depth |
58.4 mm |
| Height |
12.6 mm |
| Weight |
18 g |
| Power |
| Power consumption (typical) |
1.2 W |
| Performance |
| SFP transceiver type |
Fiber optic |
| Maximum data transfer rate |
8000 Mbit/s |
| Interface type |
SFP+ |
| Multi-mode fiber (MMF) supported |
Y |
| Fiber optic connector |
LC |
| Maximum transfer distance |
300 m |
| Wavelength |
850 nm |
| Duplex system |
Full |
| Digital Diagnostics Monitoring (DDM) |
Y |
| Features |
| Product colour |
Silver |
| Housing material |
Aluminium |
| Hot-swap |
Y |
| Mean time between failures (MTBF) |
1967709 h |
| Country of origin |
China |
| Certification |
CE, FCC, UR |
| Logistics data |
| Master (outer) case width |
36 cm |
| Master (outer) case length |
42.5 cm |
| Master (outer) case height |
25.6 cm |
| Quantity per master (outer) case |
500 pc(s) |
| Products per master (outer) case |
500 pc(s) |
| Packaging data |
| Number of products included |
1 pc(s) |
| Package width |
118 mm |
| Package depth |
93 mm |
| Package height |
33 mm |
| Package weight |
46 g |
| Technical details |
| Sustainability certificates |
RoHS |
Features
StarTech.com HPE AJ716B Compatible SFP+ Module - 8G Fiber Channel SW - 8GbE Multi Mode Fiber Optic Transceiver - 8GE Gigiabit Ethernet SFP+ - LC 300m - 850nm - DDM HPE SN4000, SN6500, SN8600B. SFP transceiver type: Fiber optic, Maximum data transfer rate: 8000 Mbit/s, Interface type: SFP+. Product colour: Silver, Housing material: Aluminium, Mean time between failures (MTBF): 1967709 h. Power consumption (typical): 1.2 W. Width: 13.9 mm, Depth: 58.4 mm, Height: 12.6 mm. Number of products included: 1 pc(s), Package width: 118 mm, Package depth: 93 mm
Product Description
8 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty
The AJ716BST is an HP AJ716B compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 8Gb fiber channel connectivity over fiber cable, for 8GFC compliant networks, with a maximum distance of up to 300 m (984 ft.).
Technical Specifications:
Wavelength: 850 nm
Maximum Data Transfer Rate: 8 Gbps
Type: Multimode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 300 m (984 ft.)
MTBF: 1,967,709 hours
Power Consumption: Less than 1.2 Watts
Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% HPE AJ716B COMPATIBLE: Works with HPE switches like SN4000, SN6500, SN8600B, StoreFabric, and others
- TECHNICAL SPECS: 8G Fiber Channel SW
- 8Gbps
