StarTech.com PCI Express Serial Card PEX2S553LP - CMS01
[PEX2S553LP]

Name: StarTech.com PCI Express Serial Card PEX2S553LP - CMS01
Brand: startech.com
SKU: PEX2S553LP
Price: 34.00 GBP
Availability: InStock

TEMPORARILY OUT OF STOCK

Part Number: PEX2S553LP

Manufacturer: startech.com

Condition: New

Short Description:

StarTech.com PCI Express Serial Card PEX2S553LP

£34.00
£40.80 - Inc VAT

Thank you for your request, PLEASE RE-TYPE THE PART NUMBER IN THE SEARCH BOX

Stock Status: 1x unit in stock

Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI Express expansion slot

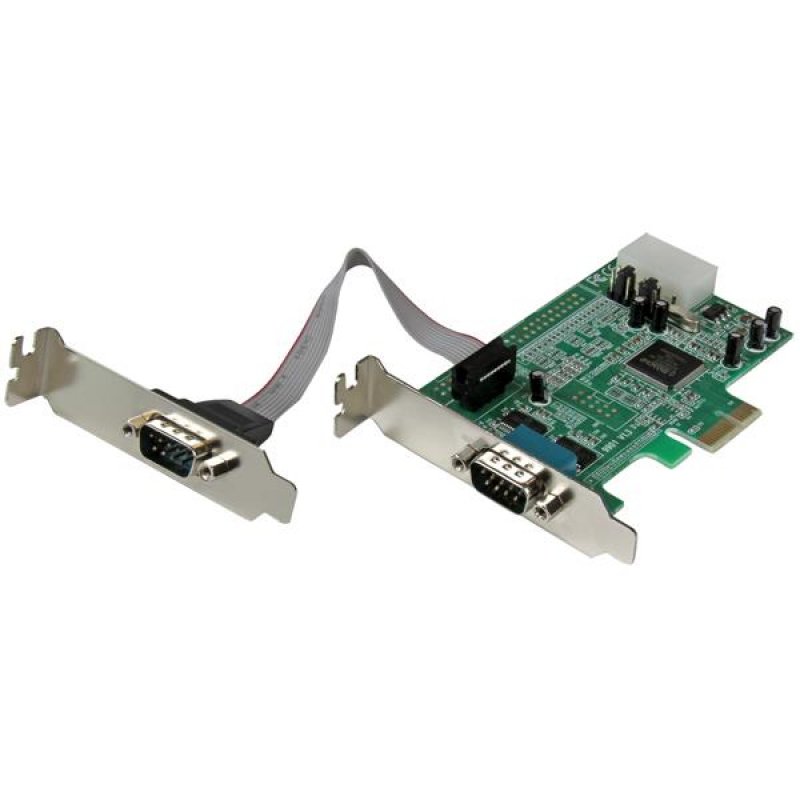

The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections.

The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.

The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows 2000/XP/2003/Vista/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).

This product is a replacement for our PEX2S552LP card.

Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance
- Pre-configured with half-height mounting bracket for low profile systems, but includes a full profile bracket for versatility
- Easy to install and use with full step-by-step instructions saves time and hassle

Reviews

Specs

System requirements
Windows operating systems supported	Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 7,Windows 7 Enterprise,Windows 7 Enterp
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Linux operating systems supported	Y
Server operating systems supported	Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019
Other operating systems supported	DOS,Windows XP Embedded
Ports & interfaces
Host interface	PCIe
Output interface	Serial
Expansion card standard	PCIe 1.1
Serial ports quantity	2
Serial interface type	RS-232
Peripheral (Molex) power connectors (4-pin)	1
Operational conditions
Operating temperature (T-T)	-10 - 80 °C
Storage temperature (T-T)	-20 - 100 °C
Operating relative humidity (H-H)	5 - 85%
Weight & dimensions
Width	80 mm
Depth	105 mm
Height	20 mm
Weight	63.5 g
Design
Internal	Y
Product colour	Green
RoHS compliance	Y
Certification	TAA, CE, FCC, REACH
Logistics data
Products per master (outer) case	50 pc(s)
Master (outer) case width	36.3 cm
Master (outer) case length	68.4 cm
Master (outer) case height	32 cm
Packaging data
Cables included	Serial
Drivers included	Y
Manual	Y
Package width	143 mm
Package depth	173 mm
Package height	32 mm
Package weight	180 g
Mounting brackets included	Y
Features
Chipset	ASIX - MCS9922CV-AA
Baud rate	460.8 Kbit/s
FIFO (First In, First Out)	128 B
Flow Control type	DTR/DSR,RTS/CTS,XON/XOFF
Technical details
Sustainability certificates	CE, RoHS

Related Products

Refurbished Printers

Features

StarTech.com 2 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 1.1. Product colour: Green. Chipset: ASIX - MCS9922CV-AA, Baud rate: 460.8 Kbit/s, FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard,..., Server operating systems supported: Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows.... Width: 80 mm, Depth: 105 mm, Height: 20 mm

Product Description

Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI Express expansion slot

The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections.

The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.

The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows 2000/XP/2003/Vista/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).

This product is a replacement for our PEX2S552LP card.

Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

The StarTech.com Advantage

- Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance
- Pre-configured with half-height mounting bracket for low profile systems, but includes a full profile bracket for versatility
- Easy to install and use with full step-by-step instructions saves time and hassle
