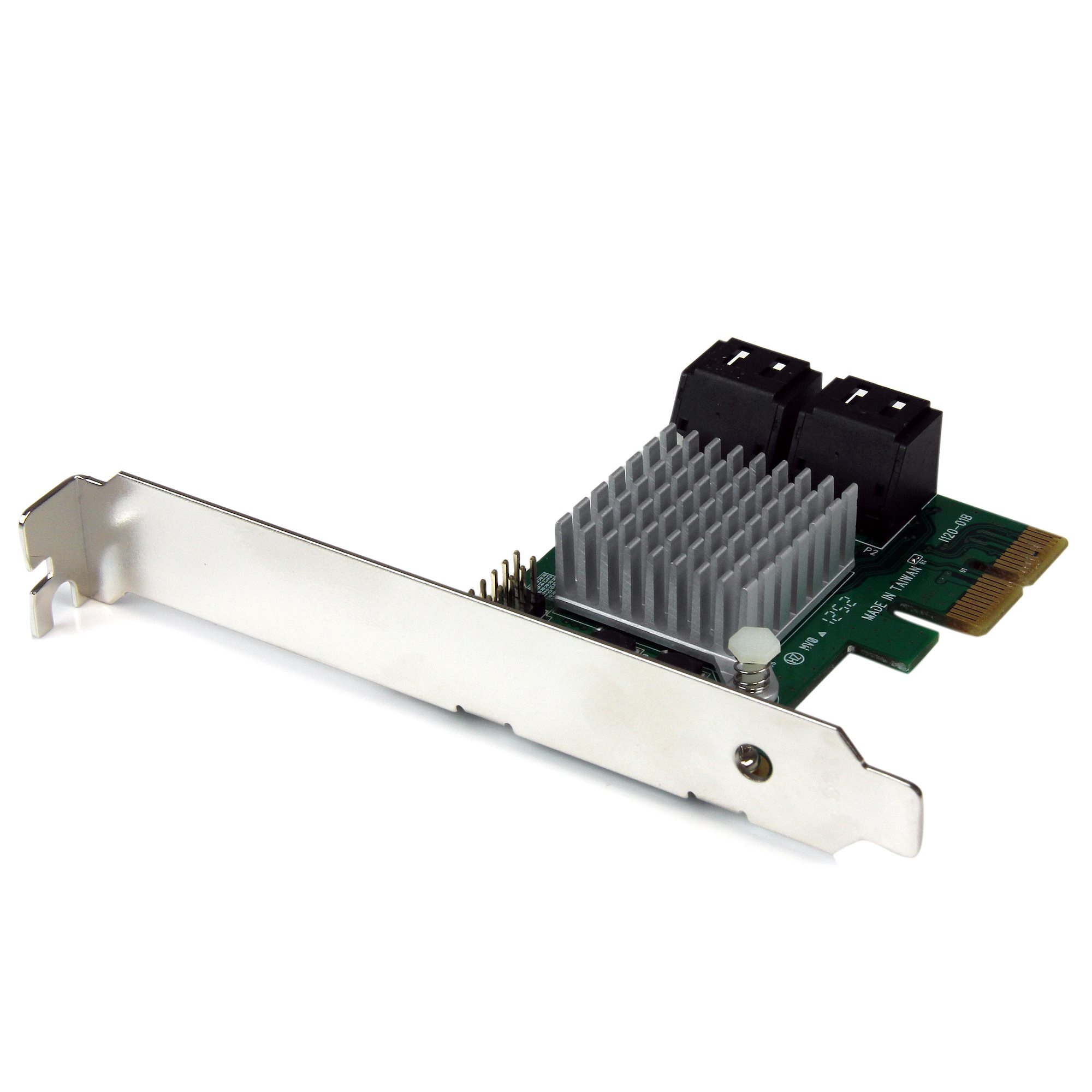

StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card With HyperDuo SSD Tiering - PCIe SATA 3 Controller Adapter (PEXSAT34RH) - Storage Controller (RAID) - 4 Channel - SATA - C2000
[PEXSAT34RH]

Specs

Related Products

Features

StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering. Supported storage drive interfaces: Serial ATA, Serial ATA III, Host interface: PCI Express. RAID levels: 0, 1, 10, JBOD, Data transfer rate: 6 Gbit/s, Chipset: Marvell - 88SE9230. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 120 mm, Depth: 70 mm, Height: 20 mm. Master (outer) case width: 381 mm, Master (outer) case length: 488 mm, Master (outer) case height: 321 mm

Product Description

Add 4 Internal SATA III (6Gbps) ports to a computer through a PCI Express x2 slot

The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).

Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)

The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.

Throughput Benchmark

Drive configuration

Throughput

Drive size

1 x HDD

112.81 MB/s

2 TB

1 x SSD

490.28 MB/S

120 GB

1 x HDD + 1 x SSD HyperDuo (Safe Mode)

489.28 MB/s

2 TB

1 x HDD + 2 x SSD HyperDuo (Safe Mode)

715.13 MB/s

2 TB

Drives Used:

SSD: OCZ Vertex 3 Series 2.5” 120 GB (VTX3-25SAT3-120G)

HDD: Western Digital Caviar Green 3.5” 2 TB (WD20EARS)

Software Used:

IO Meter, 256KB Sequential Read, queue depth = 10

This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
