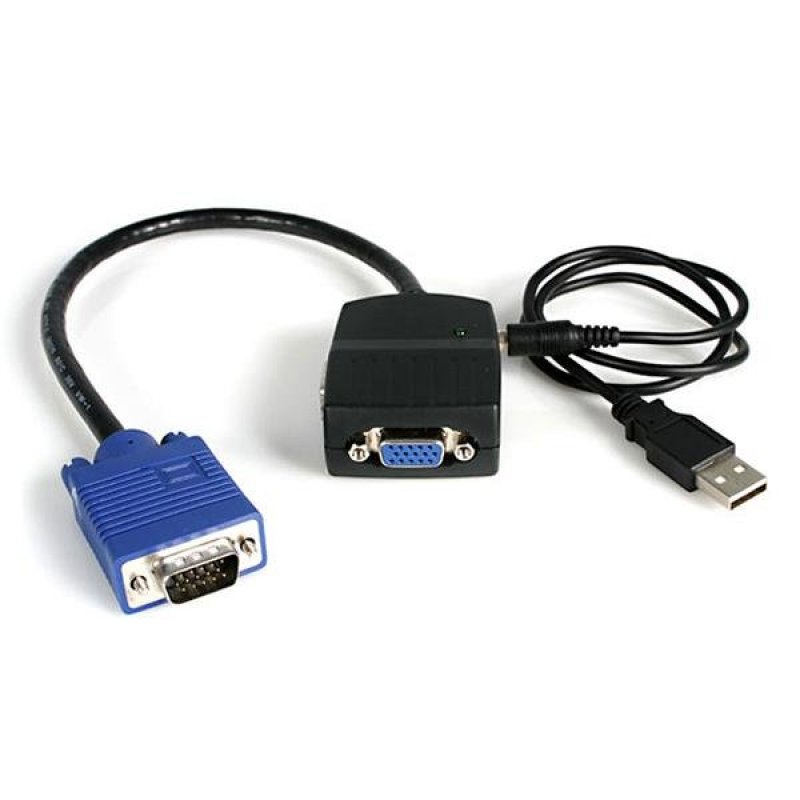

Compact USB-powered VGA splitter allows you to split a video source to two separate displays
This 2-Port VGA Video Splitter allows a computer to display VGA video on two monitors simultaneously.
Perfect for classrooms, tradeshows, or any environment requiring high quality video on several monitors, the ST122LE VGA splitter supports displays with up to 300 MHz of bandwidth and up to 2048x1536 resolution. Plus, to simplify placement of your VGA displays, the splitter features a built-in booster circuit that allows you to locate VGA monitors up to 200 ft away from your system, and can be powered through a USB connection to the host computer, eliminating the need to find an available power outlet.
Application Diagram
The ST122LE VGA Splitter supports easy plug and play installation, and is backed by StarTech.com's 2-year warranty and FREE lifetime tech support.
The StarTech.com Advantage
- USB-Powered VGA video splitter, no bulky external power adapter required
- Multiple screens let you communicate your message more effectively to large audiences with greater impact
- Integrated signal amplifier boosts your connection range to 210 feet (65 meters)
Specs
| Ports & interfaces |
| Connector 1 |
DB15 |
| Connector 2 |
DB15 |
| Gender |
Male/Female |
| Connector gender |
Male/Female |
| Outer carton |
| Quantity outer carton |
10 pc(s) |
| Packaging data |
| Package width |
145 mm |
| Package depth |
210 mm |
| Package height |
40 mm |
| Package weight |
235 g |
| Package length |
5.12 mm |
| Packaging tare weight |
0.16 kg |
| Technical details |
| Connector 1 |
DB15 |
| Connector 2 |
DB15 |
| Sustainability certificates |
RoHS |
| Technical features |
DDC, DDC2, DDC2B |
| Packaging content |
| Manual |
Y |
| Ports & interfaces |
| Video ports quantity |
2 |
| Video port type |
VGA |
| Video out |
2x VGA |
| Weight & dimensions |
| Weight |
100 g |
| Power |
| Output voltage |
5 V |
| Output current |
0.5 A |
| USB powered |
Y |
| Packaging data |
| Package width |
145 mm |
| Package depth |
210 mm |
| Package height |
40 mm |
| Package weight |
235 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Other features |
| Technical features |
DDC, DDC2, DDC2B |
| Performance |
| Product colour |
Black |
| Housing material |
Plastic |
| Design |
| Colour of product |
Black |
| Material |
Plastic |
| Product colour |
Black |
| Housing material |
Plastic |
| Features |
| Maximum resolution |
2048 x 1536 pixels |
| Product colour |
Black |
| Housing material |
Plastic |
| Maximum operating distance |
61 m |
| Bandwidth |
300 MHz |
| Certification |
REACH, CE, FCC, TAA |
Features
StarTech.com 2 Port VGA Video Splitter - USB Powered. Video port type: VGA, Video out: 2x VGA. Maximum resolution: 2048 x 1536 pixels, Product colour: Black, Housing material: Plastic. Output voltage: 5 V, Output current: 0.5 A. Weight: 100 g. Package width: 145 mm, Package depth: 210 mm, Package height: 40 mm
Product Description
Compact USB-powered VGA splitter allows you to split a video source to two separate displays
This 2-Port VGA Video Splitter allows a computer to display VGA video on two monitors simultaneously.
Perfect for classrooms, tradeshows, or any environment requiring high quality video on several monitors, the ST122LE VGA splitter supports displays with up to 300 MHz of bandwidth and up to 2048x1536 resolution. Plus, to simplify placement of your VGA displays, the splitter features a built-in booster circuit that allows you to locate VGA monitors up to 200 ft away from your system, and can be powered through a USB connection to the host computer, eliminating the need to find an available power outlet.
Application Diagram
The ST122LE VGA Splitter supports easy plug and play installation, and is backed by StarTech.com's 2-year warranty and FREE lifetime tech support.
The StarTech.com Advantage
- USB-Powered VGA video splitter, no bulky external power adapter required
- Multiple screens let you communicate your message more effectively to large audiences with greater impact
- Integrated signal amplifier boosts your connection range to 210 feet (65 meters)
