Stock Status: 1x unit in stock

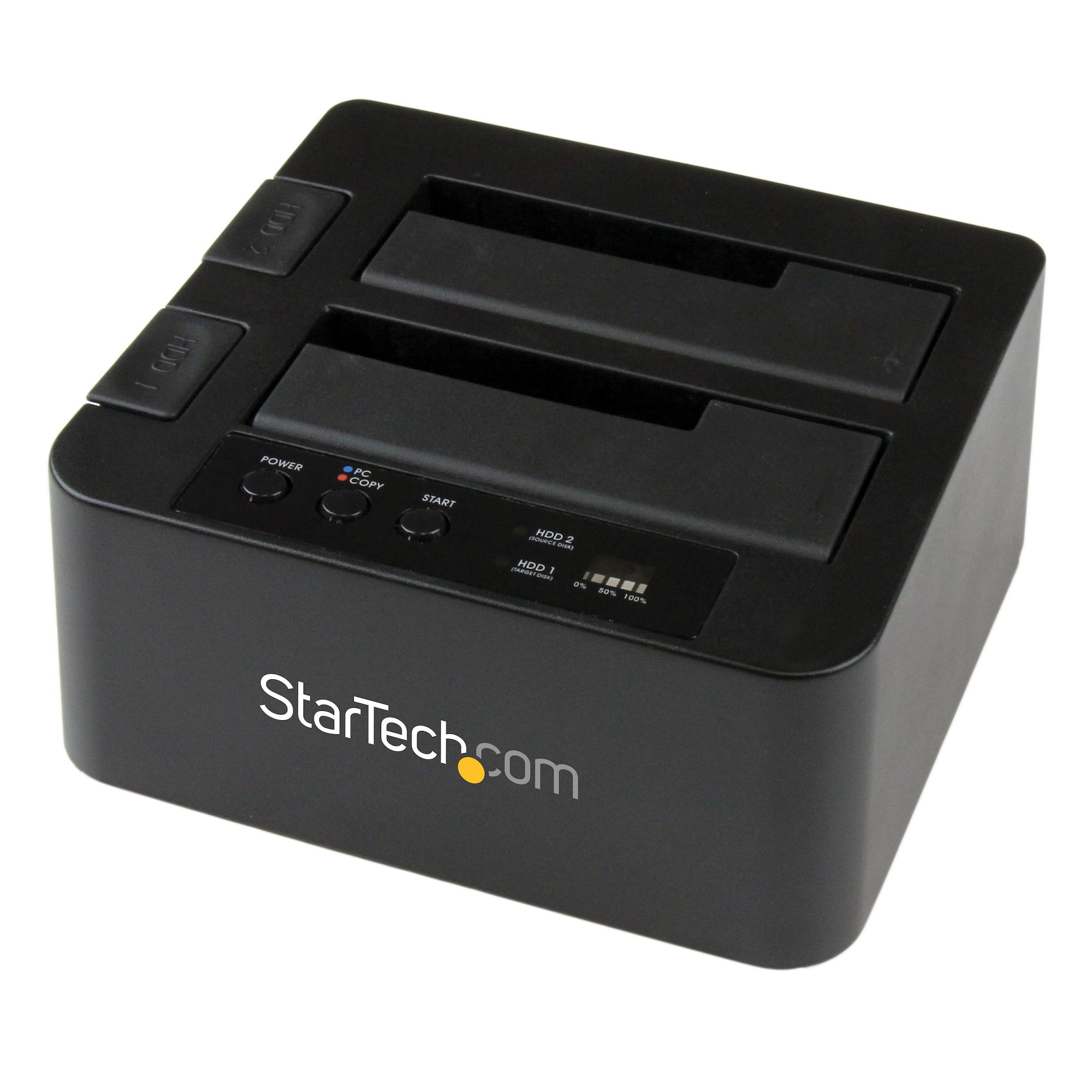

Hard Drive Cloner | 2.5"/3.5" HDD/SSD | USB 3.2 Gen 1 (5 Gbps) / eSATA | SATA
The SDOCK2U33RE Dual 2.5/3.5" SATA HDD/SSD duplicator dock lets you duplicate/clone an existing hard drive without the use of a host computer system -- or dock and swap drives from your desktop or laptop computer simultaneously, using a single USB or eSATA port.
Versatile Features
The SDOCK2U33RE offers convenient dual-function performance. As a hard drive duplicator, the SDOCK2U33RE lets you create an exact sector-by-sector clone from one hard drive to another, including partitions and boot sector information -- ensuring data integrity and consistency for sensitive operations, such as data recovery. As an external hard drive dock the SDOCK2U33RE lets you connect your drives through either eSATA or USB, with each drive slot individually supporting high capacity 2.5/3.5" hard drives or solid state drives, tested up to 4 TB.
Fast Performance
With support for SATA III (6 Gbps) you can maximize efficiency with duplication speeds up to 22 GB per minute, and eSATA docking speeds up to 6 Gbps. The Dock can also be connected through USB 3.0 with UASP for transfer speeds up 5 Gbps (70% faster than conventional USB 3.0). See our UASP testing results below for further details.
Hassle-free Operation
With push button operation and plug-and play installation, the duplicator dock has been specially designed for hassle-free operation. The SDOCK2U33RE lets you quickly dock your hard drives or start duplicating hard drives with the push of a button. Plus, the built-in LED progress bar saves you time by letting you easily monitor the entire duplication process, so you'll know exactly when it's time to start your next operation.
For added compatibility with different drive types in duplication and docking applications, the SDOCK2U33RE supports the use of various drive adapters. The below list of StarTech.com adapters have been specifically tested, to ensure compatibility with this drive duplicator:
2.5/3.5in IDE drives - SAT2IDEADP
mSATA drives - SAT2MSAT25
M.2 (NGFF) drives - SAT32M225
SDOCK2U33RE is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
Specs
| Technical details |
| Compliance certificates |
RoHS |
| Weight & dimensions |
| Dimensions (WxDxH) |
132 x 147 x 70 mm |
| Weight |
528 g |
| Power |
| AC input voltage |
100 - 240 V |
| Input current |
1.3 A |
| Output voltage |
12 V |
| Output current |
3 A |
| Included power plug types |
ANZ, EU, NA, UK |
| Hard drive |
| Supported HDD sizes |
2.5,3.5" |
| Supported HDD interfaces |
Serial ATA, Serial ATA II, Serial ATA III |
| Operational conditions |
| Operating relative humidity (H-H) |
20 - 80% |
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| System requirements |
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 x64 |
| Packaging data |
| Package width |
190 mm |
| Package height |
213 mm |
| Package weight |
1 kg |
| Package length |
11.8 cm |
| Packaging content |
| Cables included |
USB, eSATA |
| Manual |
Yes |
| Logistics data |
| Master (outer) case length |
617 mm |
| Master (outer) case width |
209 mm |
| Master (outer) case height |
463 mm |
| Products per master (outer) case |
10 pc(s) |
| Features |
| Product type |
HDD/SSD duplicator |
| Number of simultaneous copies |
1 copies |
| Interface |
USB 3.2 Gen 1 (3.1 Gen 1)/eSATA |
| Product colour |
Black |
| USB connector type |
USB Type-B |
| Duplicator operating modes |
Copy |
| Maximum supported storage capacity |
8 TB |
| Transfer rate |
22 GB/min |
| Chipset |
JMicron - JMS562 |
| LED indicators |
Yes |
| Certification |
CE, FCC |
Features
StarTech.com Dual Bay Hard Drive Duplicator, Standalone USB 3.0 (5 Gbps) / eSATA to 2.5/3.5" SATA III HDD/SSD Cloner/Copier, Hard Drive Docking Station, Hard Disk Cloner. Product type: HDD/SSD duplicator, Number of simultaneous copies: 1 copies, Interface: USB 3.2 Gen 1 (3.1 Gen 1)/eSATA. Supported HDD sizes: 2.5,3.5", Supported HDD interfaces: Serial ATA, Serial ATA II, Serial ATA III. Server operating systems supported: Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 x64. AC input voltage: 100 - 240 V, Input current: 1.3 A, Output voltage: 12 V. Dimensions (WxDxH): 132 x 147 x 70 mm, Weight: 528 g
Product Description
Hard Drive Cloner | 2.5"/3.5" HDD/SSD | USB 3.2 Gen 1 (5 Gbps) / eSATA | SATA
The SDOCK2U33RE Dual 2.5/3.5" SATA HDD/SSD duplicator dock lets you duplicate/clone an existing hard drive without the use of a host computer system -- or dock and swap drives from your desktop or laptop computer simultaneously, using a single USB or eSATA port.
Versatile Features
The SDOCK2U33RE offers convenient dual-function performance. As a hard drive duplicator, the SDOCK2U33RE lets you create an exact sector-by-sector clone from one hard drive to another, including partitions and boot sector information -- ensuring data integrity and consistency for sensitive operations, such as data recovery. As an external hard drive dock the SDOCK2U33RE lets you connect your drives through either eSATA or USB, with each drive slot individually supporting high capacity 2.5/3.5" hard drives or solid state drives, tested up to 4 TB.
Fast Performance
With support for SATA III (6 Gbps) you can maximize efficiency with duplication speeds up to 22 GB per minute, and eSATA docking speeds up to 6 Gbps. The Dock can also be connected through USB 3.0 with UASP for transfer speeds up 5 Gbps (70% faster than conventional USB 3.0). See our UASP testing results below for further details.
Hassle-free Operation
With push button operation and plug-and play installation, the duplicator dock has been specially designed for hassle-free operation. The SDOCK2U33RE lets you quickly dock your hard drives or start duplicating hard drives with the push of a button. Plus, the built-in LED progress bar saves you time by letting you easily monitor the entire duplication process, so you'll know exactly when it's time to start your next operation.
For added compatibility with different drive types in duplication and docking applications, the SDOCK2U33RE supports the use of various drive adapters. The below list of StarTech.com adapters have been specifically tested, to ensure compatibility with this drive duplicator:
2.5/3.5in IDE drives - SAT2IDEADP
mSATA drives - SAT2MSAT25
M.2 (NGFF) drives - SAT32M225
SDOCK2U33RE is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.
The StarTech.com Advantage
