Stock Status: 1x unit in stock

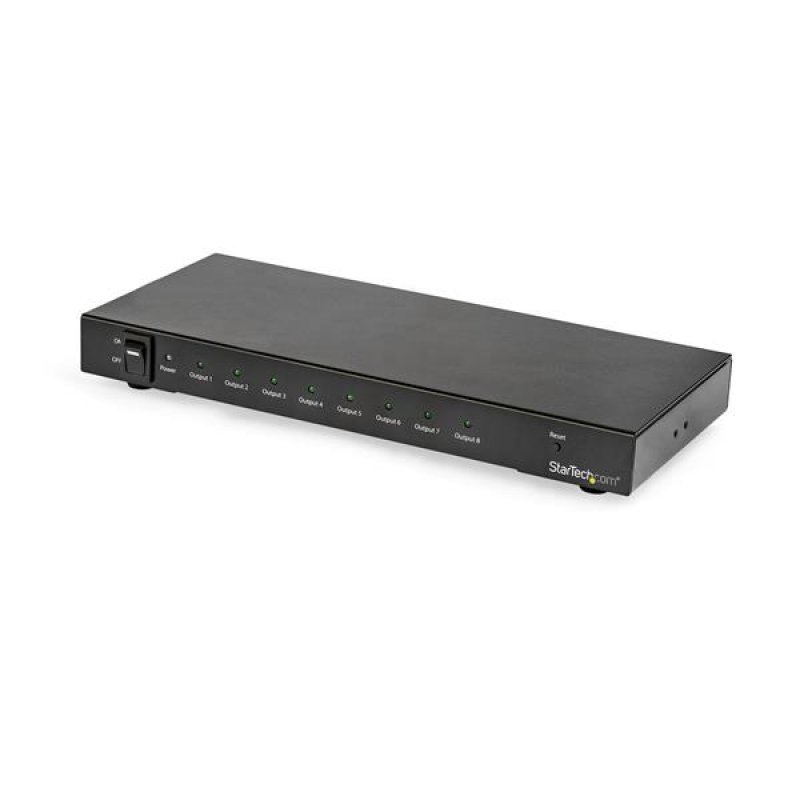

Easily distribute an HDMI 4K60 signal to up to eight monitors with this HDMI 2.0 splitter
This 4K HDMI splitter lets you connect your HDMI video source to eight HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.
Supports true 4K at 60Hz
This 8-port 4K 60Hz HDMI splitter offers full support for your HDMI 2.0 equipment, including true 4K resolution at 60Hz. For smoother video and color transitions, the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color. Support for HDMI 2.0 devices means this splitter can transmit bandwidth up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail.
Note: In order to support 4K 60Hz coming through the splitter, each device in the chain must support HDCP 2.2.
Widely compatible
The splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application.
Easy installation and setup
The 4K HDMI splitter offers easy plug-and-play installation with no additional software or drivers required. The splitter passes EDID between your video source and the display attached to port 1, ensuring native settings such as resolution and refresh rate are configured automatically.
The ST128HD20 is backed by a 2-year StarTech.com warranty.
The StarTech.com Advantage
Specs
| Technical details |
| Supported audio channels |
7.1 |
| Compliance certificates |
RoHS |
| Audio support |
Yes |
| Packaging content |
| Included power plug types |
AU, EU, NA, UK |
| Ports & interfaces |
| Video ports quantity |
8 |
| Video port type |
HDMI |
| Video out |
8x HDMI |
| HDMI version |
2.0 |
| Weight & dimensions |
| Width |
110 mm |
| Depth |
258 mm |
| Height |
26 mm |
| Weight |
762 g |
| Power |
| AC input voltage |
100 - 240 V |
| Input current |
0.6 A |
| Output voltage |
5 V |
| Output current |
3 A |
| Power consumption (typical) |
15 W |
| Packaging data |
| Package width |
260 mm |
| Package depth |
325 mm |
| Package height |
70 mm |
| Package weight |
1.2 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Features |
| Maximum resolution |
3840 x 2160 pixels |
| Product colour |
Black |
| HD type |
4K Ultra HD |
| Maximum refresh rate |
60 Hz |
| HDCP |
Yes |
| Supported graphics resolutions |
1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA) |
| Power LED |
Yes |
| Supported video modes |
720p, 1080p |
| LED indicators |
Yes |
| Certification |
CE, FCC, REACH |
Features
StarTech.com 8-Port 4K 60Hz HDMI Splitter. Video port type: HDMI, Video out: 8x HDMI. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, HD type: 4K Ultra HD. AC input voltage: 100 - 240 V, Input current: 0.6 A, Output voltage: 5 V. Width: 110 mm, Depth: 258 mm, Height: 26 mm. Package width: 260 mm, Package depth: 325 mm, Package height: 70 mm
Product Description
Easily distribute an HDMI 4K60 signal to up to eight monitors with this HDMI 2.0 splitter
This 4K HDMI splitter lets you connect your HDMI video source to eight HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.
Supports true 4K at 60Hz
This 8-port 4K 60Hz HDMI splitter offers full support for your HDMI 2.0 equipment, including true 4K resolution at 60Hz. For smoother video and color transitions, the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color. Support for HDMI 2.0 devices means this splitter can transmit bandwidth up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail.
Note: In order to support 4K 60Hz coming through the splitter, each device in the chain must support HDCP 2.2.
Widely compatible
The splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application.
Easy installation and setup
The 4K HDMI splitter offers easy plug-and-play installation with no additional software or drivers required. The splitter passes EDID between your video source and the display attached to port 1, ensuring native settings such as resolution and refresh rate are configured automatically.
The ST128HD20 is backed by a 2-year StarTech.com warranty.
The StarTech.com Advantage
