Stock Status: 1x unit in stock
Transform a Thunderbolt 4 laptop into a high-resolution multi-monitor workstation with 7x USB ports, 2.5 Gigabit Ethernet port, 3.5mm audio, plus USB Power Delivery and downstream device charging

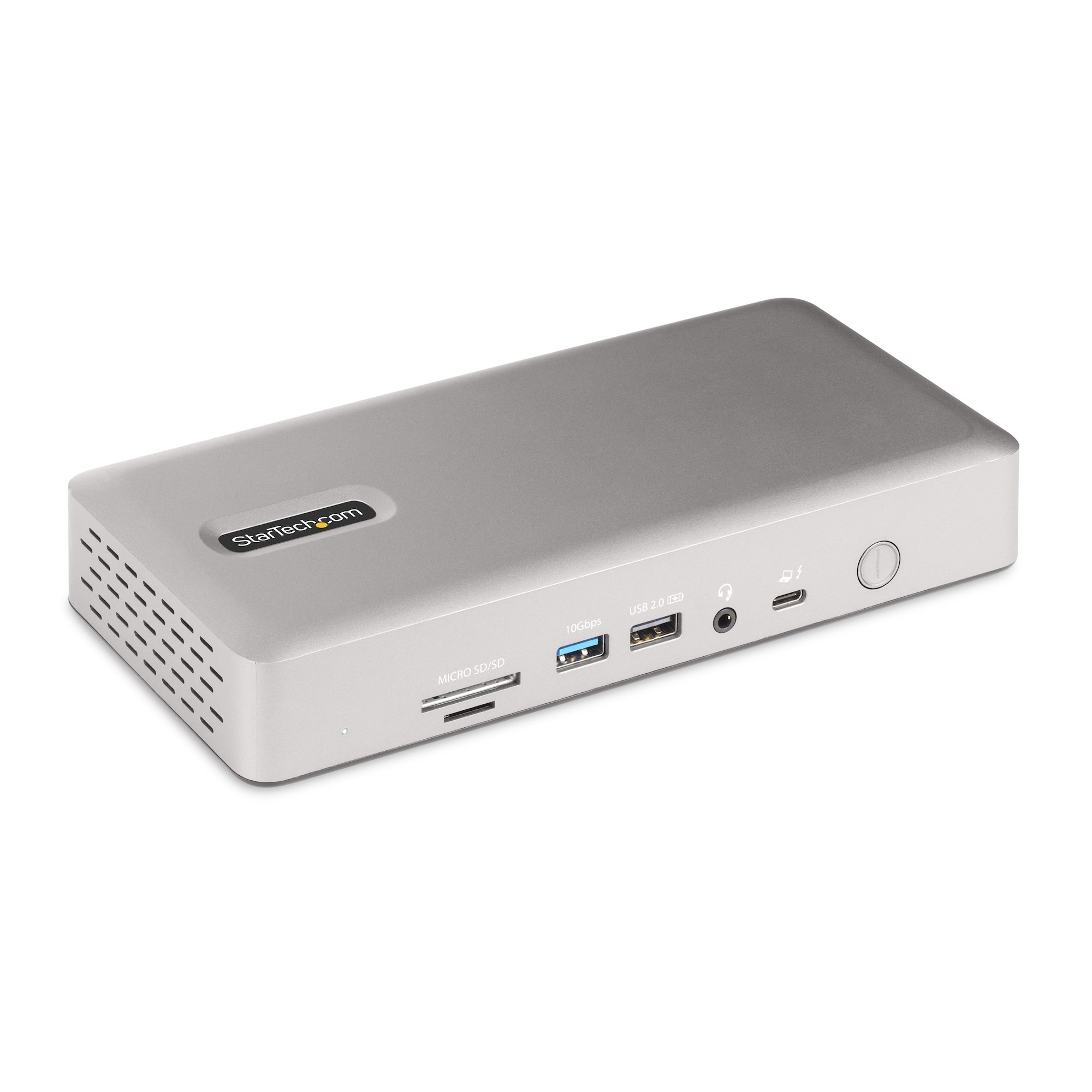

This Thunderbolt 4 Certified docking station uses a single Thunderbolt 4/3 or USB4, port on a host computer to add high-performance connectivity while charging the laptop.
Flexible High-Performance Video Supporting up to Quad-Monitor 4K 60Hz
The dock is equipped with 2x HDMI and 2x DisplayPort video outputs for connecting multiple monitors to the host computer. The dock offers video flexibility, supporting single, dual, triple, or quad monitor configurations. With an Intel 12th Gen processor or higher that supports DP 1.4 with DSC, the docking station can support a quad-monitor configuration with resolutions up to 4K 60Hz. Quad displays are also available at lower resolutions or refresh rates on computers without DSC or with earlier Intel revisions. In addition, the dock supports a single 8K 60Hz display on either of the HDMI output ports.
Apple computers equipped with M1, M2, or M3 Max/Pro processors support dual displays. For Apple computers featuring the M1, M2, or M3 base processor a single display is supported.
Port Connectivity
The docking station utilizes the high 40Gbps throughput available from a Thunderbolt 4/3, or USB4 port to provide a wide range of port connectivity to suit a variety of applications.
The dock features:
• 2x HDMI ports to connect displays
• 2x DisplayPort ports to connect displays
• 6x USB 3.2 ports (3x 10Gbps Type-A, 1x 10Gbps Type-C, 2x 5Gbps Type-A) to connect USB peripheral devices
• 1x USB 2.0 (480Mbps) Type-A port that supports BC 1.2 with 7.5W (1.5A) for charging battery powered USB devices
• 1x 2.5 Gigabit Ethernet port with PXE boot and WoL to connect to a wired Local Area Network (LAN)
• 1x Secure Digital (SD) 4.0/UHS-II card reader to externally access SD, SDHC and SDXC memory cards
• 1x Micro Secure Digital (microSD) 4.0/UHS-II card reader to externally access mSD, mSDHC and mSDXC memory cards
• 1x 3.5mm 4-position TRRS Audio Jack to connect a 3.5mm headset
98W USB Power Delivery Certified
Includes a 180W power adapter and supports 98W USB power delivery. This enables the dock to charge the laptop, with enough additional power for the downstream USB 2.0 port to support BC 1.2 with 7W (1.5A) for charging tablets, smartphones or other battery-powered USB devices.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools App
Developed to improve performance and security, Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The StarTech.com Advantage
Specs
| Weight & dimensions |
| Width |
210 mm |
| Depth |
96 mm |
| Height |
34 mm |
| Weight |
200 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
Thunderbolt 4 |
| USB 2.0 ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
2 |
| Headphone outputs |
1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
1 |
| USB Power Delivery |
Yes |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
98 W |
| HDMI version |
2.1 |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.4 |
| Combo headphone/mic port |
Yes |
| Headphone connectivity |
3.5 mm |
| DC-in jack |
Yes |
| Power |
| Power source type |
DC |
| AC input voltage |
110 - 240 V |
| Input current |
2.5 A |
| Output voltage |
20 V |
| Output current |
9 A |
| Power consumption (max) |
180 W |
| Compatible power plug types |
EU, UK |
| Packaging content |
| Cables included |
Thunderbolt |
| AC adapter included |
Yes |
| Quick start guide |
Yes |
| Other features |
| Chipset |
Intel - JHL8440, Cypress - HX3PD, Parade - FL5801, Realtek - RTL8156BG, Genesys Logic - GL3231S, Realtek - ALC4030U, Realtek - RTD2188, Cypress - CCG5, TI - TPS2546 |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Networking |
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Copper ethernet cabling technology |
2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T |
| Full duplex |
Yes |
| Performance |
| Product colour |
Grey |
| Card reader integrated |
Yes |
| Compatible memory cards |
MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Data transfer rate |
40 Gbit/s |
| HD type |
8K Ultra HD |
| Maximum digital resolution |
7680 x 4320 pixels |
| Maximum refresh rate |
60 Hz |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington, Nano |
| On/off switch |
Yes |
| LED indicators |
LAN, Power |
| UASP support |
Yes |
| Housing material |
Aluminium |
| Technical details |
| Compliance certificates |
CE, RoHS |
| Software |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Mac operating systems supported |
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Packaging data |
| Package width |
235 mm |
| Package depth |
145 mm |
| Package height |
90 mm |
| Package weight |
1.4 kg |
| Logistics data |
| Products per master (outer) case |
4 pc(s) |
| Master (outer) case width |
380 mm |
| Master (outer) case length |
310 mm |
| Master (outer) case height |
285 mm |
| Sustainability |
| Sustainability compliance |
Yes |
Features
StarTech.com Thunderbolt 4 Multi-Display Docking Station, Quad/Triple/Dual Monitor Dock - 2x HDMI/2x DisplayPort, 7x USB Hub, 2.5Gb Ethernet, 98W Power Delivery. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 98 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s, Copper ethernet cabling technology: 2.5GBASE-T, 10BASE-T, 100BASE-T, 1000BASE-T. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC, Data transfer rate: 40 Gbit/s. Power source type: DC, AC input voltage: 110 - 240 V, Input current: 2.5 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
