Stock Status: 1x unit in stock

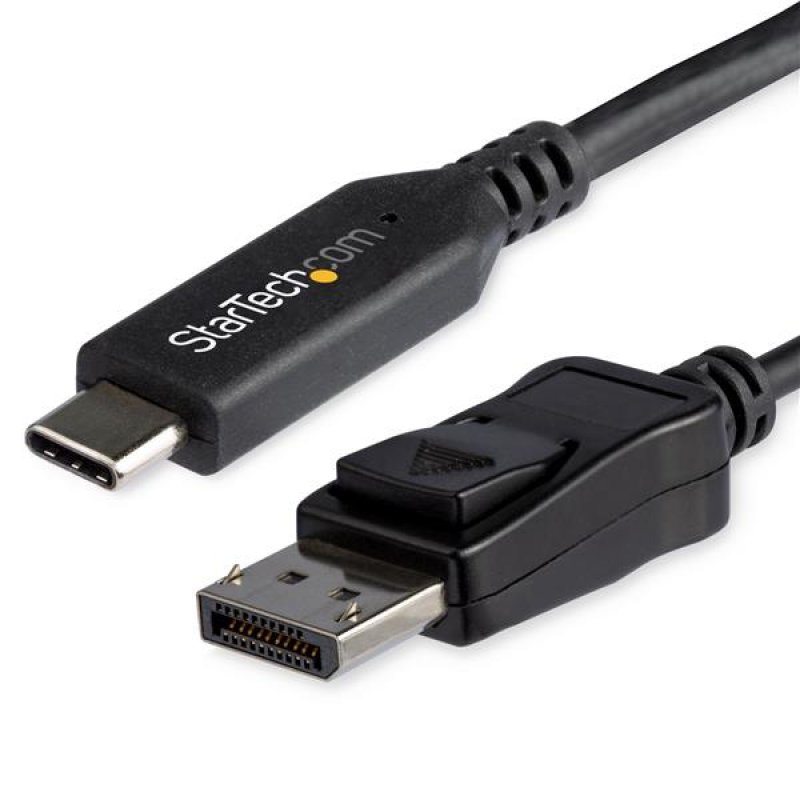

USB-C Video Adapter Cable | Thunderbolt 3 Compatible | HBR3
This USB-C to DisplayPort 1.4 cable lets you connect your USB Type-C device to a DisplayPort monitor with just one cable, providing you with a convenient, clutter-free solution.
Incredible Picture Quality
Supporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320, and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.
With cutting-edge picture quality, this cable is ideal for:
Displaying crisp digital signage walls
Creating eye-catching visuals for photography and videography
The USB-C to DP cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.
Resolution
Frequency
Support without DSC
Support with DSC
HDR10 without DSC
HDR10 with DSC
1080p (1920x1080)
60
P
P
P
P
120
P
P
P
P
240
P
P
P
P
4K (3840x2160)
60
P
P
P
P
120
P
P
O
P
240
O
P
O
P
8K (7680x4320)
30
P
P
O
P
60
O
P
O
P
120
O
O
O
O
Clutter-Free Installation
At 6 ft. (1.8 m) in length, this DisplayPort adapter cable delivers a direct connection that eliminates excess cabling, ensuring a tidy installation. For installations requiring a shorter length, we also offer a 3.3 ft. (1 m) DisplayPort cable, enabling you to customize your connection needs.
Hassle-Free Setup
To ensure easy operation, this DisplayPort converter cable supports plug-and-play installation, removing the need for additional software or drivers.
CDP2DP146B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
Your USB-C device must support DP Alt Mode to work with this adapter cable.
To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.
The StarTech.com Advantage
- HIGH PERFORMANCE: USB-C to DisplayPort 1.4 (32.4Gbps) adapter cable compatible w/ HDR/DisplayHDR, HBR3, Display Stream Compression (DSC), HDCP 2.2/1.4; 8K 60Hz (7680x4320), 5K 60Hz, 4K 120Hz & 1080p
- EXPERIENCE 8K: USB C to DisplayPort 1.4 cable was tested w/ 8K monitors, displays & compliance test hardware/software for optimal performance & color depth for high res imaging & content creators
- INTEGRATED VIDEO ADAPTER CABLE: This USB-C to DP cable minimizes signal loss & potential failure points with a latching DP connector, level 4 Air/Contact ESD immunity/protection & EMI shielding
Specs
| Features |
| Cable length |
1.8 m |
| Connector 1 |
USB Type-C |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| DisplayPort version |
1.4 |
| Maximum resolution |
7680 x 4320 pixels |
| Supported graphics resolutions |
1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3860 x 2160,4096 x 2160,7680 x 4320 |
| Maximum refresh rate |
60 Hz |
| Product colour |
Black |
| Chipset |
STM32F072CBY6TR |
| Supported audio channels |
7.1 |
| RoHS compliance |
Y |
| Certification |
CE, FCC, REACH |
| Operational conditions |
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
80 - 90% |
| Weight & dimensions |
| Weight |
57 g |
| Width |
200 mm |
| Depth |
1800 mm |
| Height |
11 mm |
| Technical details |
| Sustainability certificates |
RoHS |
| Logistics data |
| Master (outer) case width |
33.5 cm |
| Master (outer) case length |
50 cm |
| Master (outer) case height |
22 cm |
| Quantity per master (outer) case |
60 pc(s) |
| Products per master (outer) case |
60 pc(s) |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
220 mm |
| Package depth |
200 mm |
| Package height |
17 mm |
| Package weight |
100 g |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com 6ft/1.8m USB C to DisplayPort 1.4 Cable - 4K/5K/8K USB Type-C to DP 1.4 Alt Mode Video Adapter Converter - HBR3/HDR/DSC - 8K 60Hz DP Monitor Cable for USB-C/Thunderbolt 3. Cable length: 1.8 m, Connector 1: USB Type-C, Connector 2: DisplayPort. Sustainability certificates: RoHS. Weight: 57 g, Width: 200 mm, Depth: 1800 mm. Quantity per pack: 1 pc(s), Package width: 220 mm, Package depth: 200 mm. Master (outer) case width: 33.5 cm, Master (outer) case length: 50 cm, Master (outer) case height: 22 cm
Product Description
USB-C Video Adapter Cable | Thunderbolt 3 Compatible | HBR3
This USB-C to DisplayPort 1.4 cable lets you connect your USB Type-C device to a DisplayPort monitor with just one cable, providing you with a convenient, clutter-free solution.
Incredible Picture Quality
Supporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320, and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.
With cutting-edge picture quality, this cable is ideal for:
Displaying crisp digital signage walls
Creating eye-catching visuals for photography and videography
The USB-C to DP cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.
Resolution
Frequency
Support without DSC
Support with DSC
HDR10 without DSC
HDR10 with DSC
1080p (1920x1080)
60
P
P
P
P
120
P
P
P
P
240
P
P
P
P
4K (3840x2160)
60
P
P
P
P
120
P
P
O
P
240
O
P
O
P
8K (7680x4320)
30
P
P
O
P
60
O
P
O
P
120
O
O
O
O
Clutter-Free Installation
At 6 ft. (1.8 m) in length, this DisplayPort adapter cable delivers a direct connection that eliminates excess cabling, ensuring a tidy installation. For installations requiring a shorter length, we also offer a 3.3 ft. (1 m) DisplayPort cable, enabling you to customize your connection needs.
Hassle-Free Setup
To ensure easy operation, this DisplayPort converter cable supports plug-and-play installation, removing the need for additional software or drivers.
CDP2DP146B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
Your USB-C device must support DP Alt Mode to work with this adapter cable.
To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.
The StarTech.com Advantage
- HIGH PERFORMANCE: USB-C to DisplayPort 1.4 (32.4Gbps) adapter cable compatible w/ HDR/DisplayHDR, HBR3, Display Stream Compression (DSC), HDCP 2.2/1.4; 8K 60Hz (7680x4320), 5K 60Hz, 4K 120Hz & 1080p
- EXPERIENCE 8K: USB C to DisplayPort 1.4 cable was tested w/ 8K monitors, displays & compliance test hardware/software for optimal performance & color depth for high res imaging & content creators
- INTEGRATED VIDEO ADAPTER CABLE: This USB-C to DP cable minimizes signal loss & potential failure points with a latching DP connector, level 4 Air/Contact ESD immunity/protection & EMI shielding
