Stock Status: 1x unit in stock

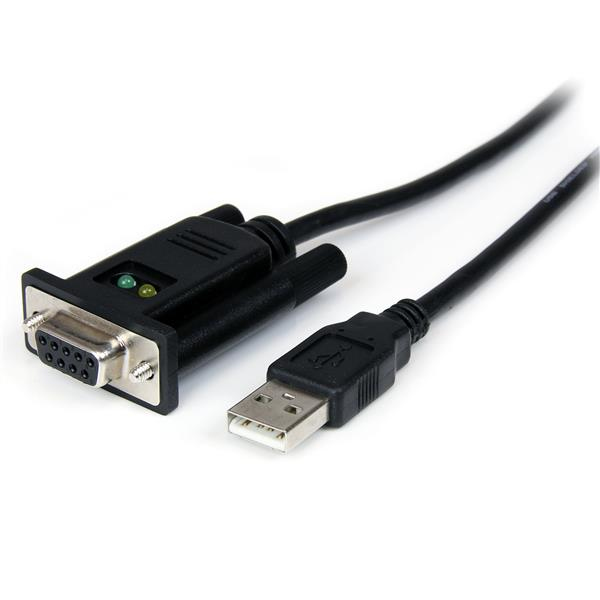

The ICUSB232FTN FTDI USB to Null Modem Serial Adapter Cable (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 Null Modem serial DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters.
This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The integrated FTDI chipset supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
The USB to Null Modem adapter is compatible with a broad list of operating systems including Windows®, Windows CE, Mac OS and Linux, making it easier to integrate into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- USB to Null Modem serial adapter corrects DTE/DCE conflicts without requiring additional adapters or cables
- The FTDI chipset is highly customizable and broadly compatible, making it the ideal solution for any setup
- Portable USB-Powered design requires no bulky power adapter or outlet
Specs
| Ports & interfaces |
| Connector 1 |
USB |
| Connector 2 |
RS-232 |
| Connector gender |
Male/Female |
| Cable length |
1.7 m |
| Packaging data |
| Package width |
208 mm |
| Package depth |
146 mm |
| Package height |
39 mm |
| Package weight |
205 g |
| Weight & dimensions |
| Width |
33.5 mm |
| Depth |
179 mm |
| Height |
16.5 mm |
| Weight |
88 g |
| Technical details |
| Sustainability certificates |
RoHS |
| Operational conditions |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Relative humidity |
5 - 95% |
| Packaging content |
| Quantity |
1 |
| Manual |
Y |
| Drivers included |
Y |
| Quantity per pack |
1 pc(s) |
| Performance |
| Chipset |
FTDI - FT232RL |
| Data bits |
7,8 |
| Stop bits |
1,2 |
| Baud rate |
921.6 Kbit/s |
| Parity bit |
Even, Mark, N, Odd, Space |
| FIFO (First In, First Out) |
256 B |
| Compatible operating systems |
- Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
- Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
- Mac OS 10.6 - 10.14
- Linux 2.4.x to 4.11.x LTS |
| Product colour |
Black |
| Housing material |
Plastic |
| RoHS compliance |
Y |
| Certification |
CE, FCC, TAA |
| Design |
| Colour of product |
Black |
| Material |
Plastic |
| Cable length |
1.7 m |
| RoHS compliance |
Y |
| Certification |
CE, FCC, TAA |
| Product colour |
Black |
| Technical details |
| Sustainability certificates |
RoHS |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
208 mm |
| Package depth |
146 mm |
| Package height |
39 mm |
| Package weight |
205 g |
| Power |
| USB powered |
Y |
| Features |
| Product colour |
Black |
| Cable length |
1.7 m |
| Connector 1 |
USB 2.0 A |
| Connector 2 |
DB-9 |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Weight |
88 g |
| Certification |
CE, FCC, TAA |
Features
StarTech.com 1 Port USB to Null Modem RS232 DB9 Serial DCE Adapter Cable with FTDI. Product colour: Black, Cable length: 1.7 m, Connector 1: USB 2.0 A. Quantity per pack: 1 pc(s), Package width: 208 mm, Package depth: 146 mm
Product Description
The ICUSB232FTN FTDI USB to Null Modem Serial Adapter Cable (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 Null Modem serial DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters.
This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The integrated FTDI chipset supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.
The USB to Null Modem adapter is compatible with a broad list of operating systems including Windows®, Windows CE, Mac OS and Linux, making it easier to integrate into mixed environments.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- USB to Null Modem serial adapter corrects DTE/DCE conflicts without requiring additional adapters or cables
- The FTDI chipset is highly customizable and broadly compatible, making it the ideal solution for any setup
- Portable USB-Powered design requires no bulky power adapter or outlet
