Stock Status: 1x unit in stock

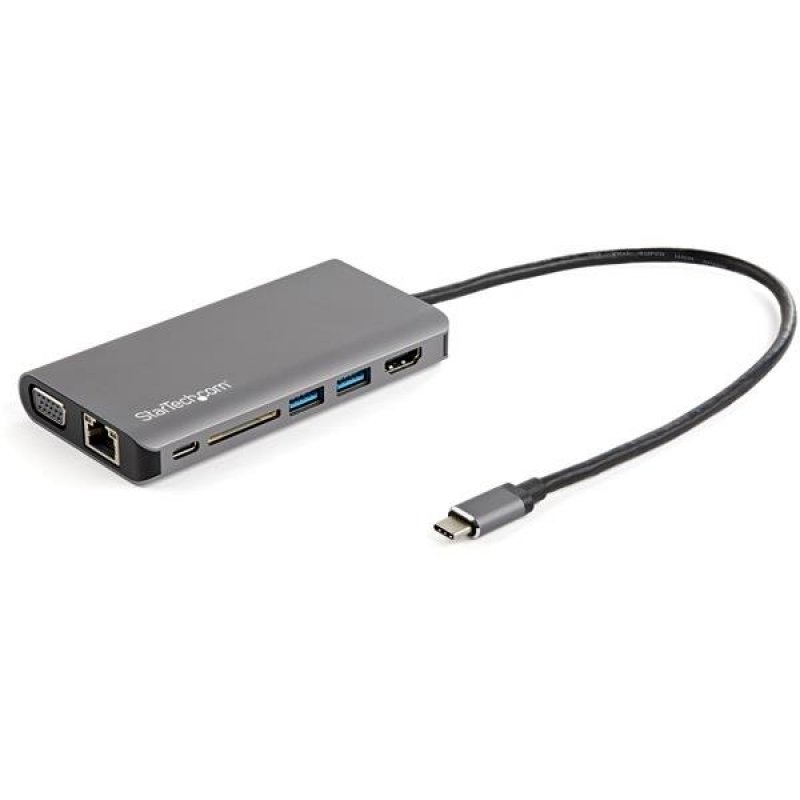

USB-C Mini Dock | 100W PD Passthrough | USB-C & A Ports | SD Card Reader | Mac, Windows & ChromeOS | Android OS | GbE
This USB-C multiport adapter turns your MacBook Pro, USB-C laptop, Chromebook or Android (Samsung Galaxy S8, Note 9 and above) device into a workstation, anywhere you go. A USB Type-C adapter, ideal for travel, features everything from the essential HDMI or VGA video outputs and USB ports to an SD card reader and 100W PD including PD passthrough. All through a single extended length 30 cm Thunderbolt 3 or USB-C attached host cable, providing more flexibility for harder to reach laptop and tablet connections.
Two Video Output Options with HDMI or VGA
This USB-C multiport adapter features both an HDMI and VGA port providing you with two single video output options for your boardroom presentations or your workstation setup including support for an ultra-wide monitor.
Power & Charge with 100W Power Delivery 3.0
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. The USB-C hub features PD passthrough so you can use your laptop’s own charger to power the hub (requires 15W) and power or charge your laptop simultaneously.
All the Essential Ports with USB
The USB-C to USB 3.0 hub gives you one USB-C port (power & data) and two USB-A ports to connect your latest and legacy USB devices.
Includes Ports to Do More with SD, Audio & Gigabit Ethernet
Access your multimedia content, audio, and network with ease. The multiport adapter provides direct access to your:
SD, SDHC and SDXC memory cards or microSD cards via the SD card slot
Audio content via headphones or microphone through the 3.5mm 4- position audio port
Ethernet network via the GbE port using a hard-wired connection
DKT30CHVAUSP is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- 8-IN-1 MULTI PURPOSE DOCK: USB-C multiport adapter eliminates the need for multiple adapters w/ 4K30Hz HDMI or 1080p VGA, 5Gbps USB (2x USB-A, USB-C), SD slot, Gigabit Ethernet, headset/mic audio jack
- 100W POWER DELIVERY 3.0: Use your laptop’s USB-C power adapter to power the dock and provide up to 85W to power & charge your laptop, w/ 15W always reserved for the USB type-c travel dock hub
- EXTRA LONG CABLE: 1ft (30cm) attached cable on this usb-c mini dock for extended reach to reduce port/connector strain on 2-in-1 devices like Surface Pro 7, iPad Pro, HP Elite & laptop on riser stands
Specs
| Weight & dimensions |
| Width |
61 mm |
| Depth |
460 mm |
| Height |
15 mm |
| Weight |
125 g |
| Ports & interfaces |
| Connectivity technology |
Wired |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| HDMI ports quantity |
1 |
| Headphone outputs |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB Power Delivery |
Y |
| USB Power Delivery revision |
3.0 |
| USB Power Delivery up to |
100 W |
| VGA (D-Sub) ports quantity |
1 |
| Combo headphone/mic port |
Y |
| Packaging content |
| Quick start guide |
Y |
| Other features |
| Cable length |
0.3 m |
| Chipset |
VIA Labs - VL102, VIA Labs - VL161, VIA Labs - VL817, Genesys Logic - GL823K, ITE Tech - IT6564, Realtek - RTL8153B, Cmedia - HS100-B |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 82 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Networking |
| Ethernet LAN |
Y |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Performance |
| Product colour |
Black, Grey |
| Card reader integrated |
Y |
| Compatible memory cards |
SD,SDHC,SDXC |
| Data transfer rate |
5 Gbit/s |
| Maximum digital resolution |
4096 x 2160 pixels |
| Maximum analog resolution |
1920 x 1200 pixels |
| Housing material |
Aluminium, Plastic |
| Certification |
CE, FCC, REACH |
| Software |
| Windows operating systems supported |
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 |
| Mac operating systems supported |
Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
| Mobile operating systems supported |
Android, iOS |
| Other operating systems supported |
Chrome |
| Packaging data |
| Package width |
145 mm |
| Package depth |
170 mm |
| Package height |
30 mm |
| Package weight |
190 g |
| Logistics data |
| Products per master (outer) case |
70 pc(s) |
| Master (outer) case width |
43.5 cm |
| Master (outer) case length |
42 cm |
| Master (outer) case height |
41.5 cm |
| Sustainability |
| Sustainability certificates |
RoHS |
Features
StarTech.com USB C Multiport Adapter - USB-C Mini Travel Dock w/ 4K HDMI or 1080p VGA - 3x USB 3.0 Hub, SD Card Reader, GbE, Audio, 100W PD - Portable Docking Station for Laptop/Tablet. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Grey, Compatible memory cards: SD,SDHC,SDXC, Data transfer rate: 5 Gbit/s. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14..., Mobile operating systems supported: Android, iOS. Sustainability certificates: RoHS
Product Description
USB-C Mini Dock | 100W PD Passthrough | USB-C & A Ports | SD Card Reader | Mac, Windows & ChromeOS | Android OS | GbE
This USB-C multiport adapter turns your MacBook Pro, USB-C laptop, Chromebook or Android (Samsung Galaxy S8, Note 9 and above) device into a workstation, anywhere you go. A USB Type-C adapter, ideal for travel, features everything from the essential HDMI or VGA video outputs and USB ports to an SD card reader and 100W PD including PD passthrough. All through a single extended length 30 cm Thunderbolt 3 or USB-C attached host cable, providing more flexibility for harder to reach laptop and tablet connections.
Two Video Output Options with HDMI or VGA
This USB-C multiport adapter features both an HDMI and VGA port providing you with two single video output options for your boardroom presentations or your workstation setup including support for an ultra-wide monitor.
Power & Charge with 100W Power Delivery 3.0
With support for USB PD 3.0 (up to 100W), the USB Type-C multiport adapter lets you power and charge your laptop, and power your peripherals when connected to a USB-C power adapter. The USB-C hub features PD passthrough so you can use your laptop’s own charger to power the hub (requires 15W) and power or charge your laptop simultaneously.
All the Essential Ports with USB
The USB-C to USB 3.0 hub gives you one USB-C port (power & data) and two USB-A ports to connect your latest and legacy USB devices.
Includes Ports to Do More with SD, Audio & Gigabit Ethernet
Access your multimedia content, audio, and network with ease. The multiport adapter provides direct access to your:
SD, SDHC and SDXC memory cards or microSD cards via the SD card slot
Audio content via headphones or microphone through the 3.5mm 4- position audio port
Ethernet network via the GbE port using a hard-wired connection
DKT30CHVAUSP is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- 8-IN-1 MULTI PURPOSE DOCK: USB-C multiport adapter eliminates the need for multiple adapters w/ 4K30Hz HDMI or 1080p VGA, 5Gbps USB (2x USB-A, USB-C), SD slot, Gigabit Ethernet, headset/mic audio jack
- 100W POWER DELIVERY 3.0: Use your laptop’s USB-C power adapter to power the dock and provide up to 85W to power & charge your laptop, w/ 15W always reserved for the USB type-c travel dock hub
- EXTRA LONG CABLE: 1ft (30cm) attached cable on this usb-c mini dock for extended reach to reduce port/connector strain on 2-in-1 devices like Surface Pro 7, iPad Pro, HP Elite & laptop on riser stands
