Stock Status: 1x unit in stock
Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
9 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity |
1 |
| Networking |
| Networking standards |
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support |
No |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Power |
| Power source |
DC/PoE |
| Power supply included |
Yes |
| AC input voltage |
220 V |
| AC input frequency |
50 Hz |
| DC input voltage |
53.5 V |
| Power consumption (max) |
76.96 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
261.66 BTU/h |
| Weight & dimensions |
| Width |
209 mm |
| Depth |
126 mm |
| Height |
26 mm |
| Packaging data |
| User guide |
Yes |
| Package type |
Box |
| Data transmission |
| MAC address table |
4000 entries |
| Switching capacity |
20 Gbit/s |
| Forwarding rate |
14.88 Mpps |
| Store-and-forward |
Yes |
| Jumbo frames |
16000 |
| Management features |
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
61 W |
| Design |
| Product colour |
Black |
| LED indicators |
Yes |
| Certification |
CE, FCC, RoHS |
Features

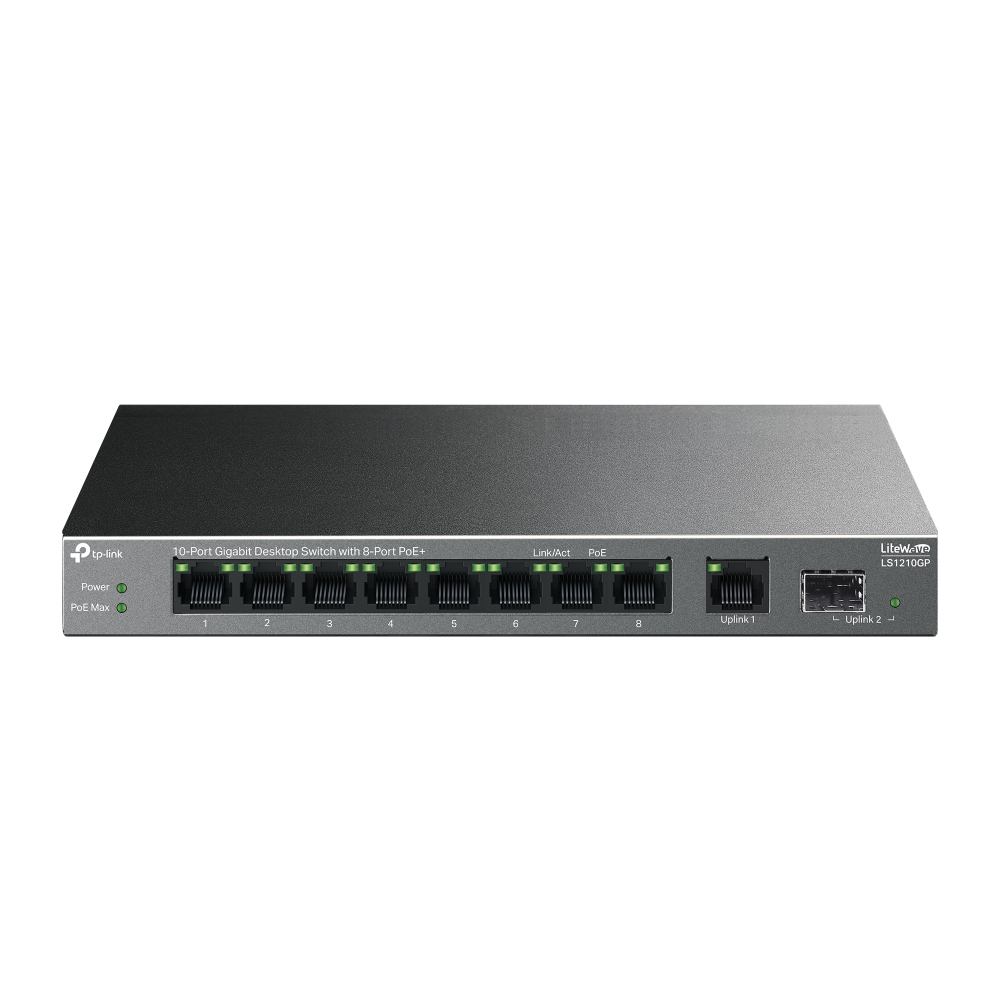

TP-Link LiteWave 10-Port Gigabit Desktop Switch with 8-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 9. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE.... DC input voltage: 53.5 V. Power over Ethernet (PoE)
Product Description
Overview
The TP-Link LiteWave Series PoE Switches require no configuration and provide PoE (Power over Ethernet) ports. They can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
