Stock Status: 1x unit in stock
Flexible Placement
Easy mounting design & PoE
The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
Specs
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
189.4 mm |
| Depth |
172.3 mm |
| Height |
29.5 mm |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 2.0 ports quantity |
0 |
| Power |
| Power over Ethernet (PoE) |
Yes |
| AC input voltage |
24 V |
| Power consumption (typical) |
2.8 W |
| Security |
| Security algorithms |
64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering |
Yes |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
| Number of SSID supported |
8 |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Access Control List (ACL) |
Yes |
| Antenna |
| Antenna type |
Internal |
| Antenna direction type |
Omni-directional |
| Antennas quantity |
2 |
| Antenna gain level (max) |
4 dBi |
| Design |
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Reset button |
Yes |
| LED indicators |
Power |
| Certification |
FCC, RoHS |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Features |
| 2.4 GHz |
Yes |
| 5 GHz |
No |
| Maximum data transfer rate |
300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
300 Mbit/s |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Frequency band |
2.4 - 2.4835 GHz |
| Networking standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x |
| Cabling technology |
10/100Base-T(X) |
| Automatic channel selection |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
SSID-based VLAN assignment |
| Rate limiting |
Yes |
| Wireless isolation |
Yes |
| Quality of Service (QoS) support |
Yes |
| Transmitting power (CE) |
21 dBm |
| Receiver sensitivity |
300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER |
| Packaging data |
| Package type |
Box |
| Management features |
| Web-based management |
Yes |
| Syslog |
Yes |
| Certification |
| Certification |
FCC, RoHS |
| Packaging content |
| Number of products included |
1 pc(s) |
| PoE adapter included |
Yes |
| Cables included |
AC |
| Mounting kit |
Yes |
| Quick start guide |
Yes |
| Quantity per pack |
1 pc(s) |
Features

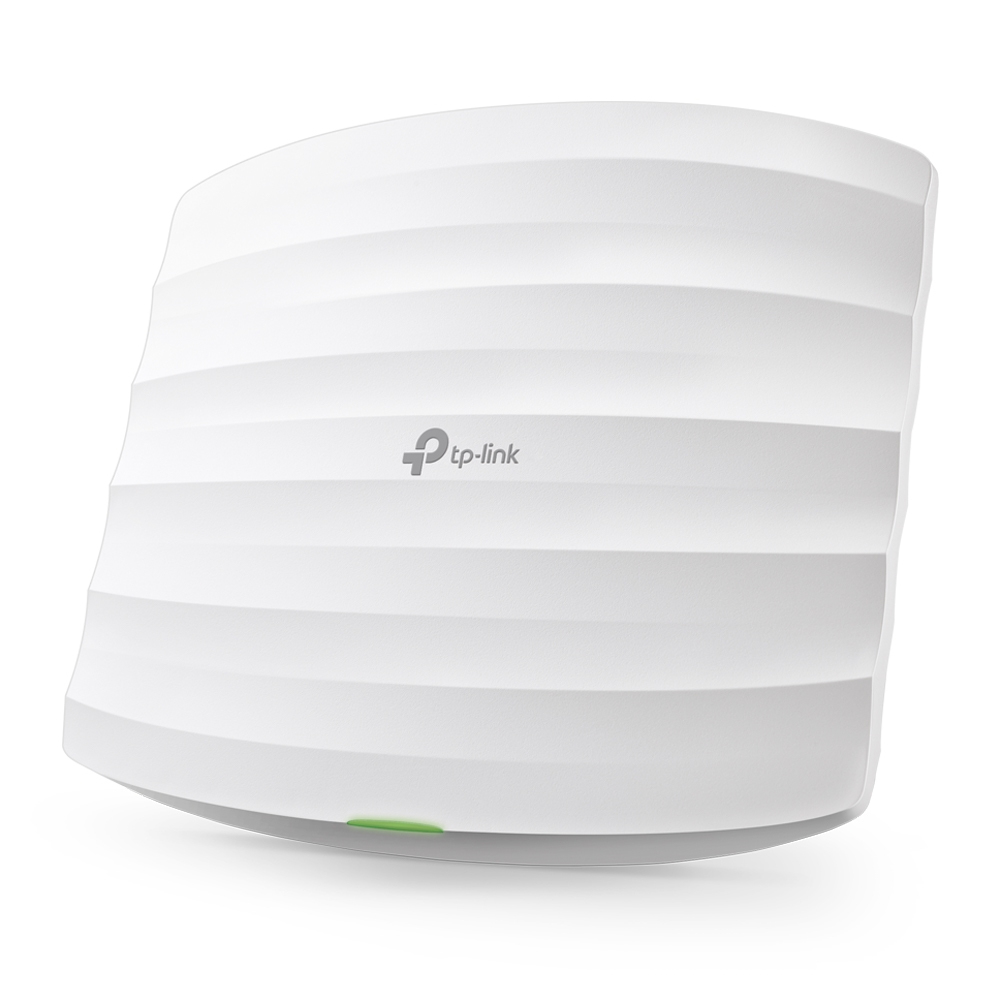

TP-Link EAP110. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise,.... Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White
Product Description
Flexible Placement
Easy mounting design & PoE
The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
