Stock Status: 1x unit in stock
Superior Wi-Fi Speeds and Performance
QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.
Seamless Roaming
802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Secure Guest Network with Facebook W-Fi and SMS Login
Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP245 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.
Free Cloud Centralized Management
- Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
Specs
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
205.5 mm |
| Depth |
181.5 mm |
| Height |
37.1 mm |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| DC-in jack |
Y |
| Power |
| Power over Ethernet (PoE) |
Y |
| Input voltage |
12 V |
| Input current |
1.5 A |
| Power consumption (typical) |
12.3 W |
| Security |
| Security algorithms |
64-bit WEP,128-bit WEP,152-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| MAC address filtering |
Y |
| Number of SSID supported |
16 |
| Port-based Network Access Control (PNAC) |
Y |
| Access Control List (ACL) |
Y |
| Antenna |
| Antenna type |
Internal |
| Antenna direction type |
Omni-directional |
| Antenna features |
Integrated antenna |
| Antenna gain level (max) |
4 dBi |
| Design |
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Cable lock slot |
Y |
| Cable lock slot type |
Kensington |
| Reset button |
Y |
| LED indicators |
Power |
| Certification |
CE, FCC, RoHS |
| Internal |
N |
| Performance |
| Compatible operating systems |
Microsoft Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10 |
| Features |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Maximum data transfer rate |
1300 Mbit/s |
| Frequency band |
2.4, 5 GHz |
| Networking standards |
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x,IEEE 802.3af |
| Automatic channel selection |
Y |
| MIMO |
Y |
| MIMO type |
Multi User MIMO |
| Virtual LAN features |
SSID-based VLAN assignment |
| Rate limiting |
Y |
| Wireless isolation |
Y |
| Load balancing |
Y |
| Airtime Fairness (ATF) |
Y |
| Quality of Service (QoS) support |
Y |
| Transmitting power |
27 dBmW |
| Maximum data transfer rate (2.4 GHz) |
450 Mbit/s |
| Maximum data transfer rate (5 GHz) |
1300 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Packaging data |
| AC adapter included |
Y |
| Mounting kit |
Y |
| PoE adapter included |
Y |
| Quick start guide |
Y |
| Management features |
| Web-based management |
Y |
| Syslog |
Y |
Features

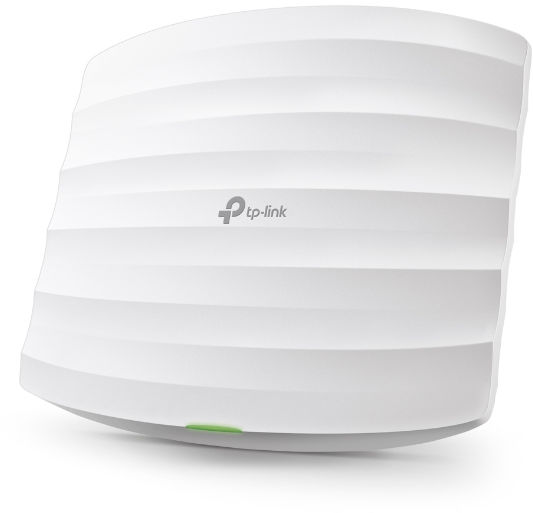

TP-LINK EAP245. Maximum data transfer rate: 1300 Mbit/s, Maximum data transfer rate (2.4 GHz): 450 Mbit/s, Maximum data transfer rate (5 GHz): 1300 Mbit/s. Security algorithms: 64-bit WEP,128-bit WEP,152-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK. Input voltage: 12 V, Input current: 1.5 A, Power consumption (typical): 12.3 W. Placement: Ceiling, Wall, Product colour: White, Cable lock slot type: Kensington. Antenna type: Internal, Antenna direction type: Omni-directional, Antenna features: Integrated antenna
Product Description
Superior Wi-Fi Speeds and Performance
QCA enterprise class chipsets, dedicated high-power amplifier and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology, ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.
Seamless Roaming
802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Secure Guest Network with Facebook W-Fi and SMS Login
Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP245 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.
Free Cloud Centralized Management
- Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
