Stock Status: 1x unit in stock
AV1000 Speeds and 300 Meters Range

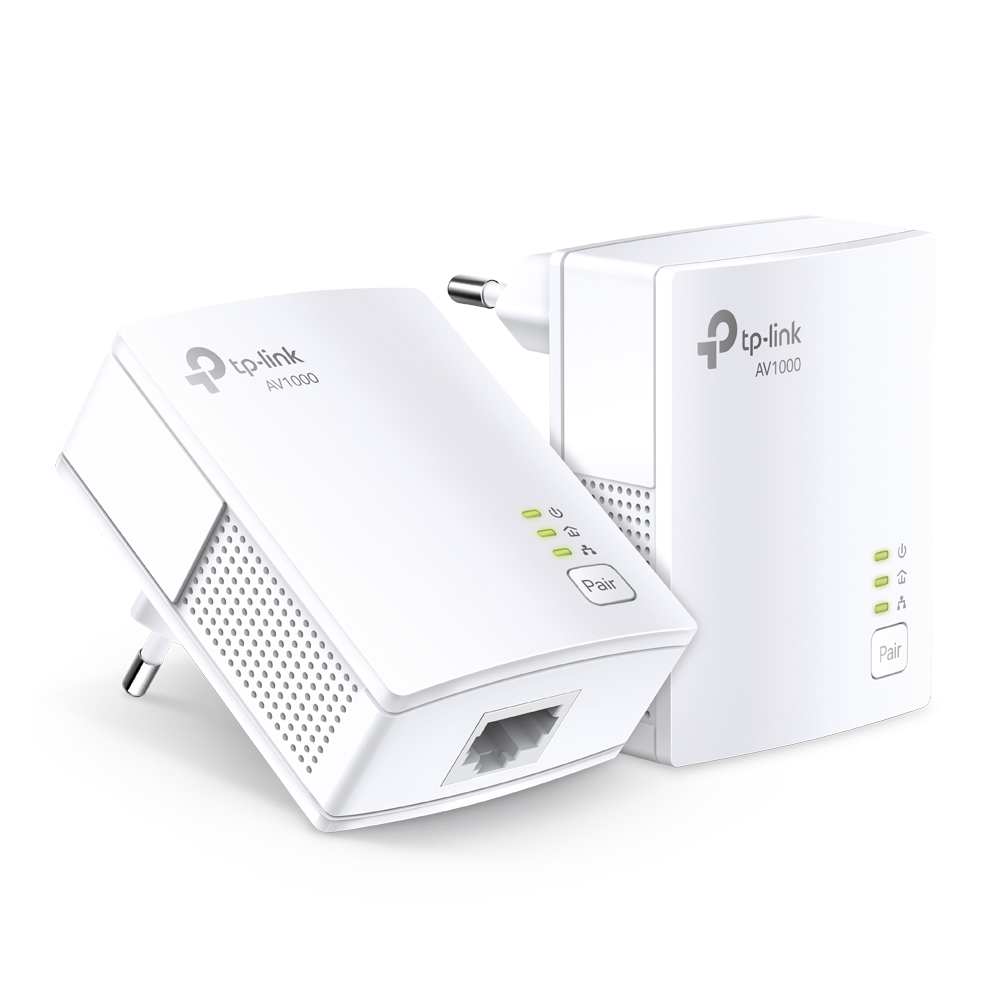

Using advanced HomePlug AV2 technology, TL-PA7017 KIT ensures stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
Gigabit Port for Maximum Connectivity
With one Gigabit Ethernet port, TL-PA7017 KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.
Plug and Play
No Configuration Required
Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!
Reduce Power Consumption by Up to 85%
TL-PA7017 KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%
Specs
| Weight & dimensions |
| Width |
65 mm |
| Depth |
28.5 mm |
| Height |
52 mm |
| Power |
| Power consumption (typical) |
2.3 W |
| Power consumption (standby) |
0.5 W |
| AC input voltage |
220 V |
| AC input frequency |
50 Hz |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Packaging content |
| Quantity per pack |
2 pc(s) |
| Quick installation guide |
Y |
| Cables included |
LAN (RJ-45) |
| System requirements |
| Windows operating systems supported |
Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows Vista,Windows XP |
| Linux operating systems supported |
Y |
| Mac compatibility |
Y |
| Design |
| Product colour |
White |
| LED indicators |
PLC |
| RoHS compliance |
Y |
| Certification |
CE |
| Performance |
| Maximum data transfer rate |
1000 Mbit/s |
| Ethernet LAN |
Y |
| Wi-Fi |
N |
| Networking standards |
IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Power plug |
Type F |
| Built-in power socket |
N |
| Modulation |
OFDM |
| Security algorithms |
128-bit AES |
| Maximum operating distance |
300 m |
| Plug and Play |
Y |
Features
TP-LINK AV1000. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3u, Power plug: Type F. Power consumption (typical): 2.3 W, Power consumption (standby): 0.5 W, AC input voltage: 220 V. Product colour: White, LED indicators: PLC, Certification: CE. Windows operating systems supported: Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows Vista,Windows XP. Width: 65 mm, Depth: 28.5 mm, Height: 52 mm
Product Description
AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-PA7017 KIT ensures stable and high-speed wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
Gigabit Port for Maximum Connectivity
With one Gigabit Ethernet port, TL-PA7017 KIT allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 KIT the perfect home entertainment companion.
Plug and Play
No Configuration Required
Connect a powerline adapter to the router, plug another powerline adapter into a wall socket in another room, and you’re done!
Reduce Power Consumption by Up to 85%
TL-PA7017 KIT, a new-generation of powerline adapter, with its practical design and sophisticated Power-Saving Mode, will automatically switch from its regular "Working" mode to "Power-Saving" mode reducing its energy consumption by up to 85%
