Stock Status: 1x unit in stock
Ultra-High Performing
AX3600 Enterprise Wireless for
High-Density Environments
High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO** increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously‡. Leverage multi-user capabilities and upgrade your business like never before.
Blazing Fast Speed with 8 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band)†. With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Optimized Wired Performance with 2.5 GE PoE+ Port
Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.? This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Boost Network Efficiency in All Aspects
With Rich Advanced Features
Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Load Balance
ensures large numbers of users have smooth network experiences in high-density business networks
Airtime Fairness
Increases average network throughput in heavily congested environments
Specs
| Operational conditions |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
243 mm |
| Depth |
243 mm |
| Height |
64 mm |
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 2.0 ports quantity |
0 |
| DC-in jack |
Yes |
| Power |
| Power over Ethernet (PoE) |
Yes |
| Output voltage |
12 V |
| Output current |
2 A |
| Security |
| Security algorithms |
WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK |
| MAC address filtering |
Yes |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Antenna |
| Antenna type |
Internal |
| Design |
| Placement |
Ceiling |
| Product colour |
White |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
| Features |
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| 6 GHz |
No |
| Maximum data transfer rate |
2402 Mbit/s |
| Maximum data transfer rate (2.4 GHz) |
1148 Mbit/s |
| Maximum data transfer rate (5 GHz) |
2402 Mbit/s |
| Ethernet LAN data rates |
25000 Mbit/s |
| Frequency band |
2.4 - 5 GHz |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Automatic channel selection |
Yes |
| Automatic channel scanning |
Yes |
| MIMO |
Yes |
| MIMO type |
Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Wi-Fi roaming |
Yes |
| VLAN support |
Yes |
| Rate limiting |
Yes |
| Wireless isolation |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Quality of Service (QoS) support |
Yes |
| Management features |
| Web-based management |
Yes |
| Syslog |
Yes |
| Packaging content |
| Mounting kit |
Yes |
Features

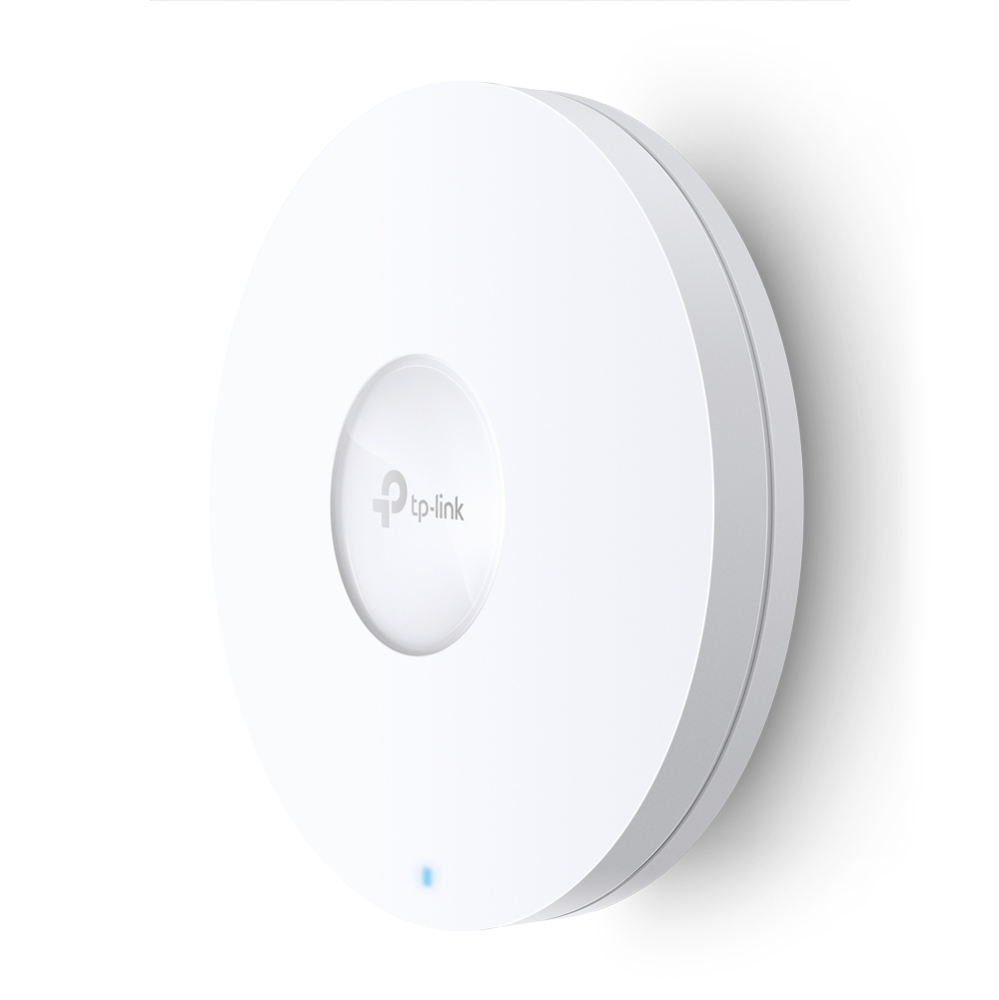

TP-Link Omada AX3600 Wireless Dual Band Multi-Gigabit Ceiling Mount Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 2402 Mbit/s. Security algorithms: WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-PSK. Ethernet LAN data rates: 25000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Product Description
Ultra-High Performing
AX3600 Enterprise Wireless for
High-Density Environments
High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO** increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously‡. Leverage multi-user capabilities and upgrade your business like never before.
Blazing Fast Speed with 8 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 3550 Mbps (2402 Mbps on a 5 GHz band and 1148 Mbps on a 2.4 GHz band)†. With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Optimized Wired Performance with 2.5 GE PoE+ Port
Armed with a 2.5 Gigabit Ethernet Port, the EAP660 HD delivers exceptional multi-gigabit performance to support the insatiable demand for better and faster Wi-Fi. Compatibility with standard 802.3at PoE+ is ideal for flexible deployment.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving.? This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Boost Network Efficiency in All Aspects
With Rich Advanced Features
Band Steering
Automatically moves dual band devices onto the wider 5GHz band for faster connections.
Load Balance
ensures large numbers of users have smooth network experiences in high-density business networks
Airtime Fairness
Increases average network throughput in heavily congested environments
