Stock Status: 1x unit in stock

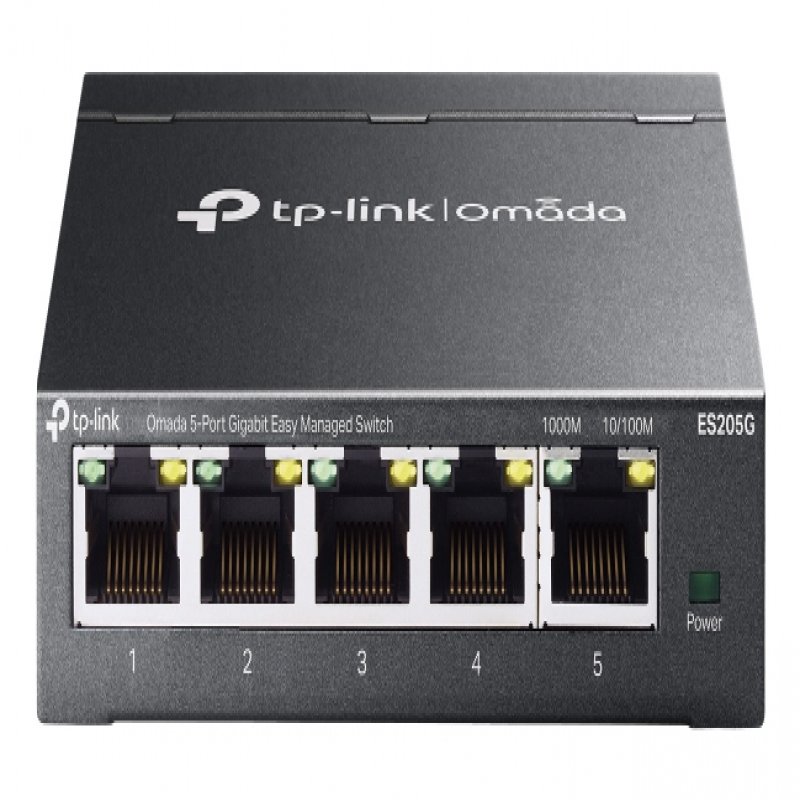

Omada 5-Port Gigabit Easy Managed Switch
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Networking |
| Networking standards |
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x |
| 10G support |
No |
| Port mirroring |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| VLAN support |
Yes |
| Virtual LAN features |
MTU VLAN, Port-based VLAN, Tagged VLAN |
| Power |
| Power source |
AC/DC |
| Power supply included |
Yes |
| DC input voltage |
5 V |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Weight & dimensions |
| Width |
100 mm |
| Depth |
98 mm |
| Height |
25 mm |
| Security |
| DHCP features |
DHCP client |
| IGMP snooping |
Yes |
| Loop protection |
Yes |
| Packaging data |
| Package type |
Box |
| Data transmission |
| MAC address table |
8000 entries |
| Switching capacity |
10 Gbit/s |
| Forwarding rate |
7.4 Mpps |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
15 |
| Packet buffer memory |
4 MB |
| Management features |
| Switch type |
Managed |
| Quality of Service (QoS) support |
Yes |
| Cloud-managed |
Yes |
| Design |
| Product colour |
Black |
| Reset button |
Yes |
| LED indicators |
Yes |
| Wall mountable |
Yes |
| Performance |
| Fanless |
Yes |
| Certification |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS |
| Packaging content |
| User guide |
Yes |
Features
TP-Link Omada 5-Port Gigabit Easy Managed Switch. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x. DC input voltage: 5 V. Wall mountable
Product Description
Omada 5-Port Gigabit Easy Managed Switch
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
