Stock Status: 1x unit in stock

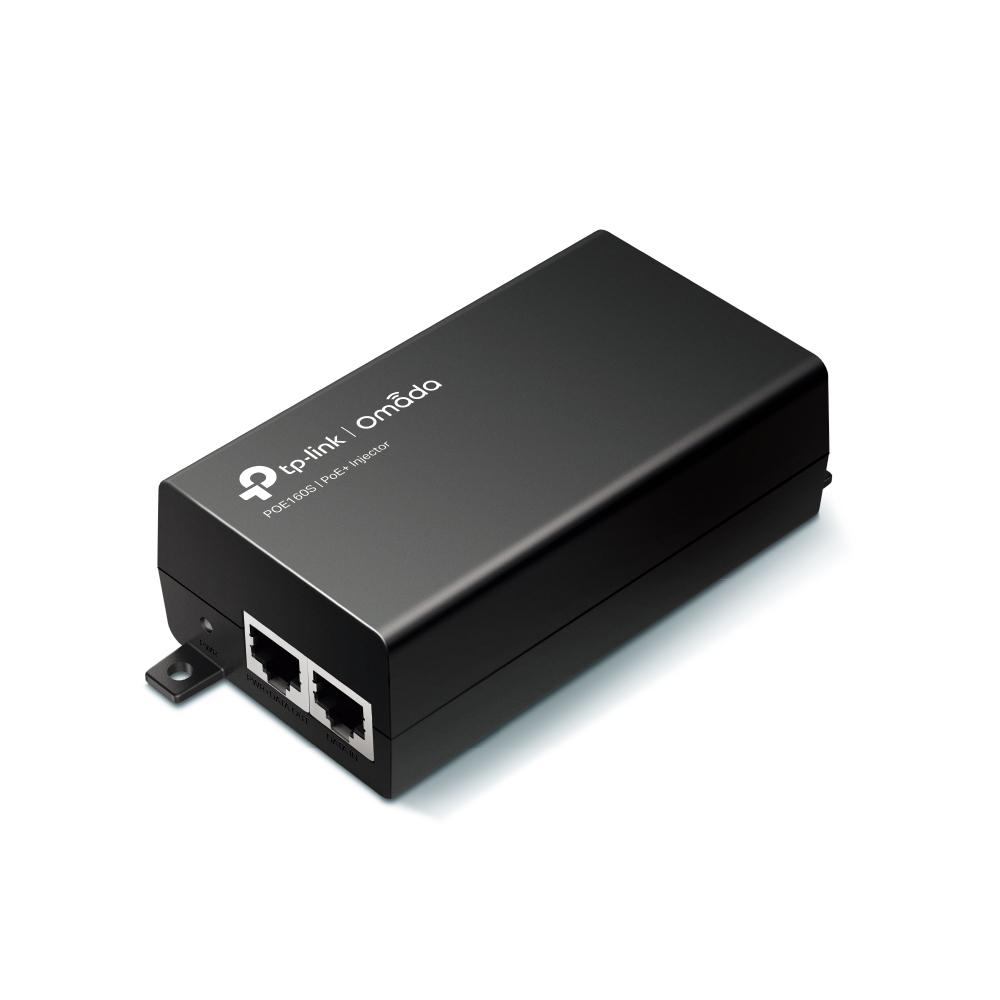

The PoE+ Injector POE160S (TL-POE160S) fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's POE10R (TL-POE10R), or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
Specs
| Ports & interfaces |
| Ethernet LAN (RJ-45) ports |
2 |
| RJ-45 input ports |
1 |
| RJ-45 output ports |
1 |
| Networking |
| Ethernet interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000 |
| Power over Ethernet (PoE) |
Yes |
| Networking standards |
IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Weight & dimensions |
| Width |
125 mm |
| Depth |
59.4 mm |
| Height |
36.8 mm |
| Power |
| Output power |
30 W |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50/60 Hz |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Packaging content |
| Number of products included |
1 pc(s) |
| Wall mounting kit |
Yes |
| Power cord included |
Yes |
| Quick installation guide |
Yes |
| Features |
| Product colour |
Black |
| Wall mountable |
Yes |
| Plug and Play |
Yes |
| Maximum operating distance |
100 m |
| LED indicators |
Power |
| Packaging data |
| Package type |
Box |
Features
TP-Link Omada PoE+ Injector. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Cabling technology: 10/100/1000. Product colour: Black, Maximum operating distance: 100 m, LED indicators: Power. Output power: 30 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 125 mm, Depth: 59.4 mm, Height: 36.8 mm. Number of products included: 1 pc(s)
Product Description
The PoE+ Injector POE160S (TL-POE160S) fully complies with IEEE 802.3af/at standards, and can work with all IEEE 802.3af/at PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-Link's POE10R (TL-POE10R), or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
