Stock Status: 1x unit in stock
PoE-Powered PoE Switch for
Simplified Outdoor Network Deployment

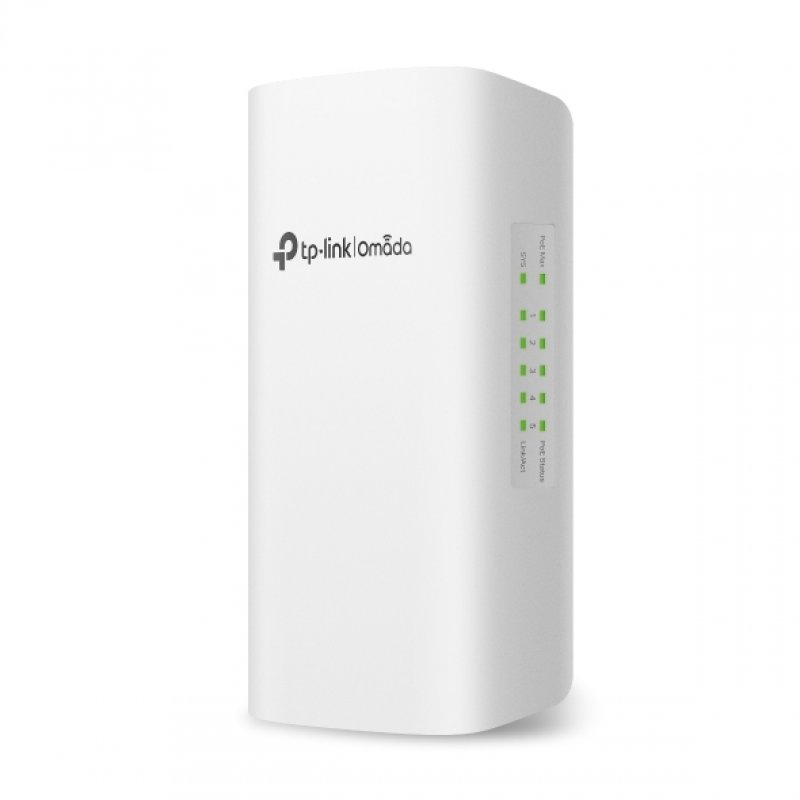

Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out
Standard PoE Passthrough to Extend Power and Data Transmission Distance up to 200 m Without Losing Gigabit Speeds
Eliminate mains access location limits and transmit data and power through one cable, simplifying installation and cutting deployment costs. Doubles PoE source-to-device connection distance from 100 m (328 ft) to 200 m (656 ft), perfect for long-range surveillance cameras and access points.
One Gigabit PoE++ In Port and Four Gigabit PoE+ Out Ports
Supports up to 64 W / 44 W / 19 W/ 6 W PoE budget output when powered by 802.3bt Type 4 (90 W), 802.3bt Type 3 (60 W), 802.3at, and 802.3af PoE, respectively.** The PoE-PD switch automatically detects the required PoE power for your devices and protects your non-PoE equipment from being damaged.
Specially Designed Weatherproof Enclosure for Outdoors
Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the switch against harsh outdoor conditions.
Easy Installation to Flexibly Fit Your Needs
Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the switch flexibly, such as in an outdoor Junction Box.
Value-Added Features Foster Touchpoint Experiences
Static Routing
Helps route internal traffic for more efficient use of network resources.
Access Control List (ACL)
ACL serves as a virtual admin, allowing all connected devices to obtain data in accordance with user-defined network rules and help you create the network regulations you need.
QoS for Lag-Free Experiences
Designate the priority of traffic based on QoS, ensuring latency-sensitive applications, like voice and video, remain clear and lag-free.
VLAN for Security and Flexible Management
VLAN allows for logical grouping management of devices in different physical LANs, improving information security and reducing data congestion.
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface.
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity |
4 |
| Networking |
| Networking standards |
IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 100BASE-T |
| Cable types supported |
Cat5, Cat5e |
| Port mirroring |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Spanning tree protocol |
Yes |
| IPv4 routes |
32 |
| IPv6 routes |
32 |
| VLAN support |
Yes |
| Virtual LAN features |
Voice VLAN |
| Number of VLANs |
4000 |
| Power |
| Power source |
DC/PoE |
| Power supply included |
Yes |
| Power consumption (typical) |
71.5 W |
| Operational conditions |
| Operating temperature (T-T) |
-40 - 60 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
243.99 BTU/h |
| Weight & dimensions |
| Width |
170 mm |
| Depth |
100 mm |
| Height |
38.5 mm |
| Security |
| DHCP features |
DHCP relay, DHCP server |
| Access Control List (ACL) |
Yes |
| Access Control List (ACL) IPv4 entries |
32 |
| IGMP snooping |
Yes |
| Security algorithms |
802.1x RADIUS |
| MAC address filtering |
Yes |
| IP-MAC-Port binding |
Yes |
| Authentication |
MAC-based authentication, Port-based authentication |
| Password protection |
Yes |
| Data transmission |
| MAC address table |
8000 entries |
| Switching capacity |
10 Gbit/s |
| Jumbo frames support |
Yes |
| Jumbo frames |
9 |
| Packet forwarding rate (1 Gbps) |
7440 pps |
| Packet buffer memory |
4.1 MB |
| Management features |
| Switch type |
Managed |
| Switch layer |
L2/L2+ |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| Cloud-managed |
Yes |
| ARP inspection |
Yes |
| MIB support |
Y |
| Protocols |
| IPv4 & IPv6 features |
Dual stack IPv4/IPv6, IPv4/IPv6 access-control list (ACL), IPv6 tracert |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) power per port |
64 W |
| Design |
| Rack mounting |
No |
| Stackable |
No |
| Form factor |
Desktop |
| Product colour |
White |
| LED indicators |
Yes |
| Multicast features |
| Multicast support |
Yes |
| Multicast MAC address table |
8000 entries |
| IPv4 multicast entries |
511 |
| IPv6 multicast entries |
511 |
| Certification |
| Compliance certificates |
CE, RoHS |
| Sustainability |
| Sustainability compliance |
Yes |
Features
TP-Link Omada 5-Port Gigabit Smart Switch with 1-Port PoE++ In and 4-Port PoE+ Out. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Form factor: Desktop
