Stock Status: 1x unit in stock

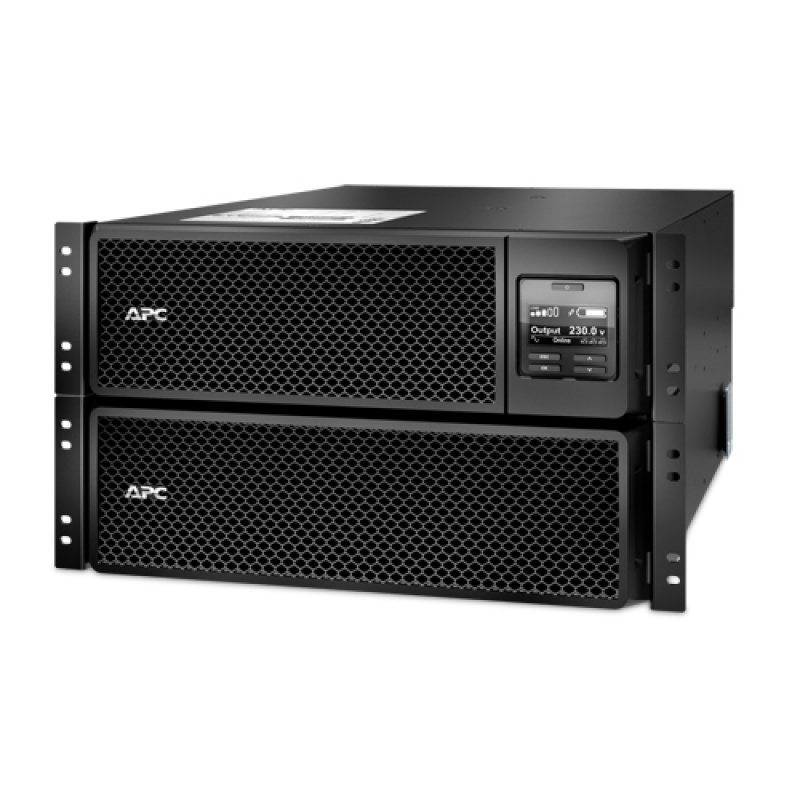

APC Smart-UPS On-Line,8000 Watts /8000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model, Rack Height 6 U
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Temperature Probe, USB cable, Warranty card
Specs
| Weight & dimensions |
| Width |
715 mm |
| Depth |
432 mm |
| Height |
263 mm |
| Weight |
111.8 kg |
| Package width |
600 mm |
| Package depth |
1000 mm |
| Package height |
461 mm |
| Package weight |
130 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
Terminal |
| AC outlets quantity |
10 AC outlet(s) |
| Number of output IEC jumpers |
3 |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RJ-45 |
| SmartSlot |
Yes |
| Other features |
| Packaging content |
Web/SNMP Management Card |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
1728 VAh |
| Typical backup time at full load |
5.2 min |
| Typical backup time at half load |
14.5 min |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
1.5 h |
| Hot-swap battery |
Yes |
| Automatic battery test |
Yes |
| Cold start |
Yes |
| Design |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Rack capacity |
6U |
| Display type |
LCD |
| LED indicators |
Status |
| Certification |
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Features |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
8 kVA |
| Output power |
8000 W |
| Waveform |
Sine |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
476 V |
| Input frequency |
40 - 70 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output frequency regulation |
50/60 Hz |
| Surge energy rating |
480 J |
| Number of output phases |
1 |
| Efficiency |
94.8% |
| Crest factor |
3:1 |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Noise level |
55 dB |
| Surge protection |
Yes |
| Audible alarm(s) |
Yes |
| Auto-restart |
Yes |
| Logistics data |
| Products per pallet |
1 pc(s) |
| Harmonized System (HS) code |
85078000 |
| Packaging data |
| Rack mount kit |
Yes |
| Bracket |
Yes |
| Cables included |
USB cable |
| Temperature sensor |
Yes |
| Quick installation guide |
Yes |
| Warranty card |
Yes |
| Software CD |
Yes |
| Technical details |
| Compliance certificates |
RoHS |
Features
APC Smart-UPS On-Line. UPS topology: Double-conversion (Online), Output power capacity: 8 kVA, Output power: 8000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: Terminal, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 1728 VAh, Typical backup time at full load: 5.2 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 6U. Width: 715 mm, Depth: 432 mm, Height: 263 mm
Product Description
APC Smart-UPS On-Line,8000 Watts /8000 VA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model, Rack Height 6 U
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Temperature Probe, USB cable, Warranty card
