Stock Status: 1x unit in stock

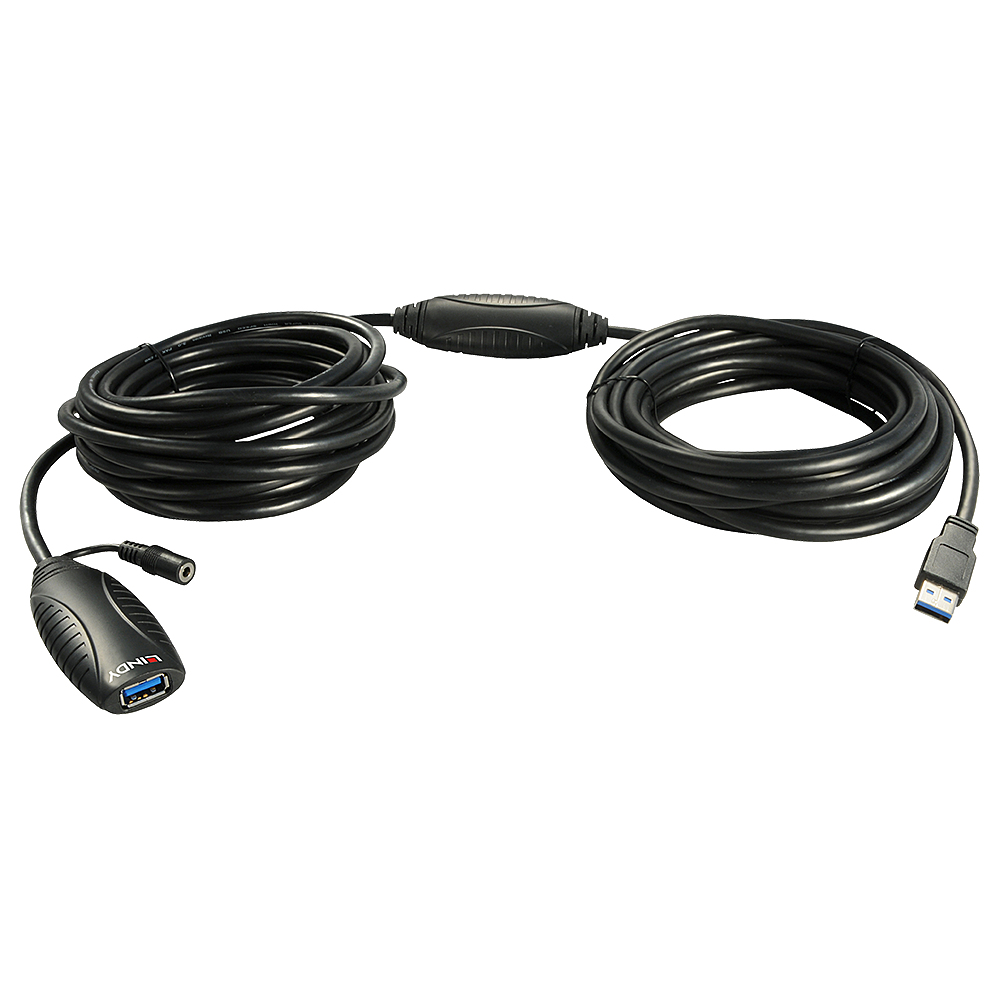

15 metre USB 3.0 Active Extension Repeater Lead
Supports transfer rates up to 5Gbps
For even greater distances simply connect 2 cables in series
Plug & Play
2 year warranty
The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 15m whilst continuing to support data transfer rates of up to 5Gbps. With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 30m.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.The USB active extension cable also features a DC socket for connecting an external power supply (5V 2A, not included) when using USB peripherals which have higher power requirements.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
Specs
| Other features |
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-20 - 85 °C |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package width |
300 mm |
| Package depth |
80 mm |
| Package height |
300 mm |
| Package weight |
1.39 kg |
| Package type |
Polybag |
| Features |
| Cable length |
15 m |
| USB version |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Connector 1 |
USB A |
| Connector 2 |
USB A |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Product colour |
Black |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| AWG wire size |
28/28/22 |
| Connector material |
Nickel |
| Contact material |
Copper |
| Connector contacts plating |
Nickel |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Conductor material |
Copper |
| Connector shielding |
Y |
| Connector shield material |
Aluminium |
| Connector housing material |
Plastic |
| Maximum data transfer rate |
5000 Mbit/s |
| Plug and Play |
Y |
| Cable type |
Round cable |
| Transmission medium |
Twisted pair |
| Nominal attenuation |
100 MHz, -1.5 dB
1.25 GHz, -5.0 dB
2.5 GHz, -7.5 dB
7.5 GHz, -25 dB |
| Certification |
CE, UKCA, FCC, RoHS, REACH |
| Packaging content |
| Manual |
Y |
| Weight & dimensions |
| Cable diameter |
7 mm |
| Bend radius (min) |
6 cm |
| Connector 1 dimensions (WxDxH) |
16 x 49 x 9 mm |
| Connector 2 dimensions (WxDxH) |
35 x 85 x 15 mm |
| Connector 3 dimensions (WxDxH) |
35 x 100 x 15 mm |
| Weight |
1.33 kg |
| Power |
| Power note |
3.5/1.35mm DC |
Features
Lindy 15m USB 3.0 Active Extension Cable. Cable length: 15 m, Connector 1: USB A, Connector 2: USB A, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5000 Mbit/s, Connector contacts plating: Nickel, Product colour: Black
Product Description
15 metre USB 3.0 Active Extension Repeater Lead
Supports transfer rates up to 5Gbps
For even greater distances simply connect 2 cables in series
Plug & Play
2 year warranty
The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 15m whilst continuing to support data transfer rates of up to 5Gbps. With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning. Up to 2 extension cables can be chained together to achieve a distance of 30m.
The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.The USB active extension cable also features a DC socket for connecting an external power supply (5V 2A, not included) when using USB peripherals which have higher power requirements.
Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
