| Weight & dimensions |
| Width |
457.2 mm |
| Depth |
370.8 mm |
| Height |
254 mm |
| Weight |
15.3 kg |
| Ports & interfaces |
| USB port |
Yes |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| System requirements |
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows |
| Linux operating systems supported |
Ubuntu 16.04, Ubuntu 18.04 LTS |
| Server operating systems supported |
Windows Server 2012 x64, Windows Server 2016 x64, Windows Server 2019 |
| Power |
| Power supply type |
AC |
| Power consumption (typical) |
50 W |
| Power consumption (standby) |
0.3 W |
| AC input frequency |
50 - 60 Hz |
| Input voltage |
100 - 240 V |
| Power consumption (sleep) |
4 W |
| Scanning |
| Maximum scan size |
305 x 4060 mm |
| Optical scanning resolution |
600 x 600 DPI |
| Duplex scanning |
Yes |
| Colour scanning |
Yes |
| Input colour depth |
48 bit |
| Output colour depth |
24 bit |
| Output greyscale depth |
8 bit |
| ADF scan speed (b/w, A4) |
100 ppm |
| Operational conditions |
| Operating temperature (T-T) |
10 - 35 °C |
| Operating relative humidity (H-H) |
15 - 80% |
| Paper handling |
| Maximum ISO A-series paper size |
A3 |
| Auto Document Feeder (ADF) media weight |
27 - 433 g/m² |
| Input capacity |
| Auto document feeder (ADF) input capacity |
300 sheets |
| Other features |
| Recommended system requirements |
Intel Core i3, 3.5 GHz+, USB 3.0/2.0, 3.43 GB RAM |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Certification |
S mark, RCM, cTUVus & ICES-003, CCC, CE, GS Mark, BIS, VCCI, NOM, EAC, KC, BSMI, cTUVus & FCC |
| Minimum scan size |
63.5 x 71.1 |
| Features |

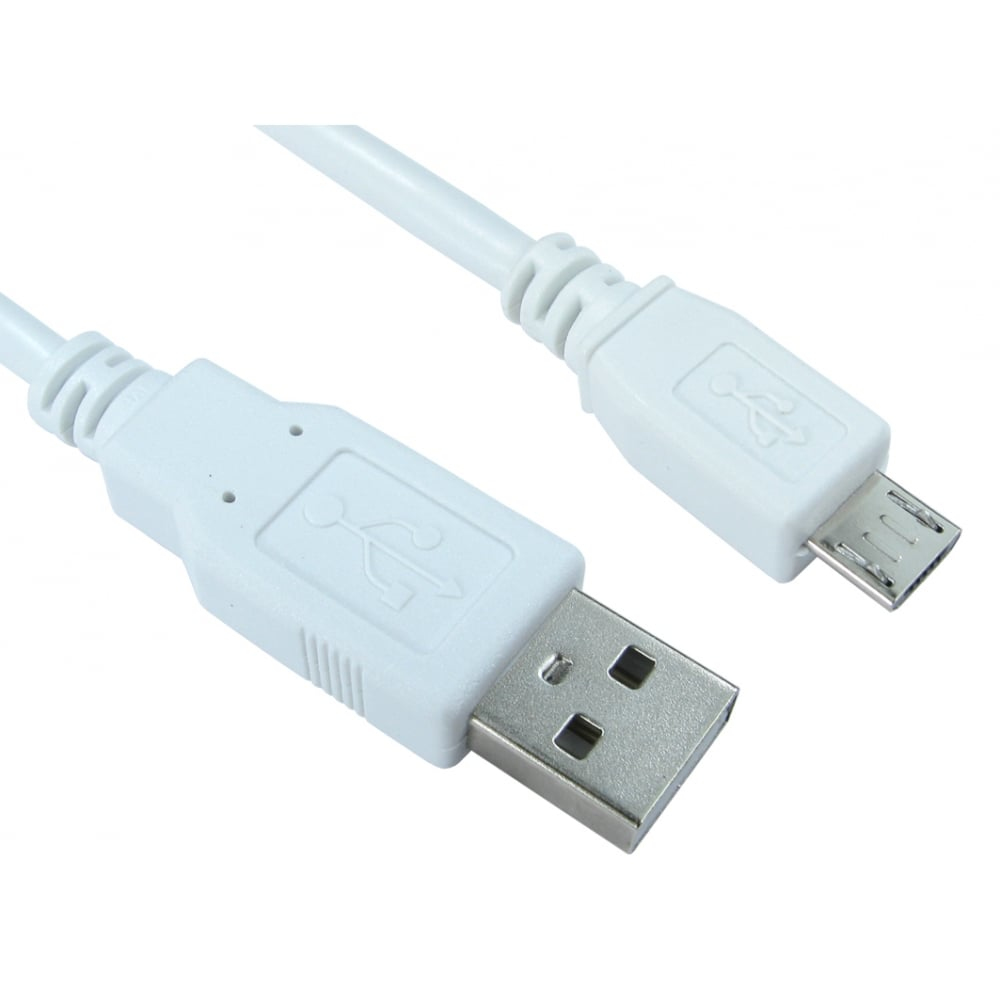

| Cable length |
1 m |
| USB version |
USB 2.0 |
| Connector 1 |
USB A |
| Connector 2 |
Micro-USB B |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Product colour |
White |
| Connector gender |
Male/Male |
| Design |
| Scanner type |
ADF scanner |
| Built-in display |
Yes |
| Product colour |
Black, White |
| Display |
LCD |
| Display diagonal |
8.89 cm (3.5") |
| Touchscreen |
Yes |
| Colour display |
Yes |
| Packaging content |
| Bundled software |
Capture Pro Limited Edition
Smart Touch |
| Performance |
| Sensor type |
Dual CIS |
| Daily duty cycle (max) |
45000 pages |
| Light source |
RGB LED |
| Scan file formats |
BMP, DOC, JPEG, PDF, PNG, RTF, TIFF, XLS |
| Scan drivers |
ISIS, Kofax VRS, SANE, TWAIN, WIA |
| Barcode reader |
Yes |
| Scanning noise level |
60 dB |
| Technical details |
| Linear (1D) barcodes supported |
Codabar, Code 128, Code 3 of 9, EAN-13, EAN-8, Interleaved 2 of 5, PDF417, UPC-A, UPC-E |
| Networking |
| Ethernet LAN |
Yes |
| Supported network protocols |
TCP/IP, DHCP |
| Logistics data |
| Harmonized System (HS) code |
84716070 |
| Sustainability |
| Sustainability certificates |
ENERGY STAR, EPEAT Gold |
