Stock Status: 1x unit in stock
Unlock UHBR13.5 Bandwidth for Next-Gen Resolutions, High Refresh Rates, and Uncompressed 8K 60Hz video

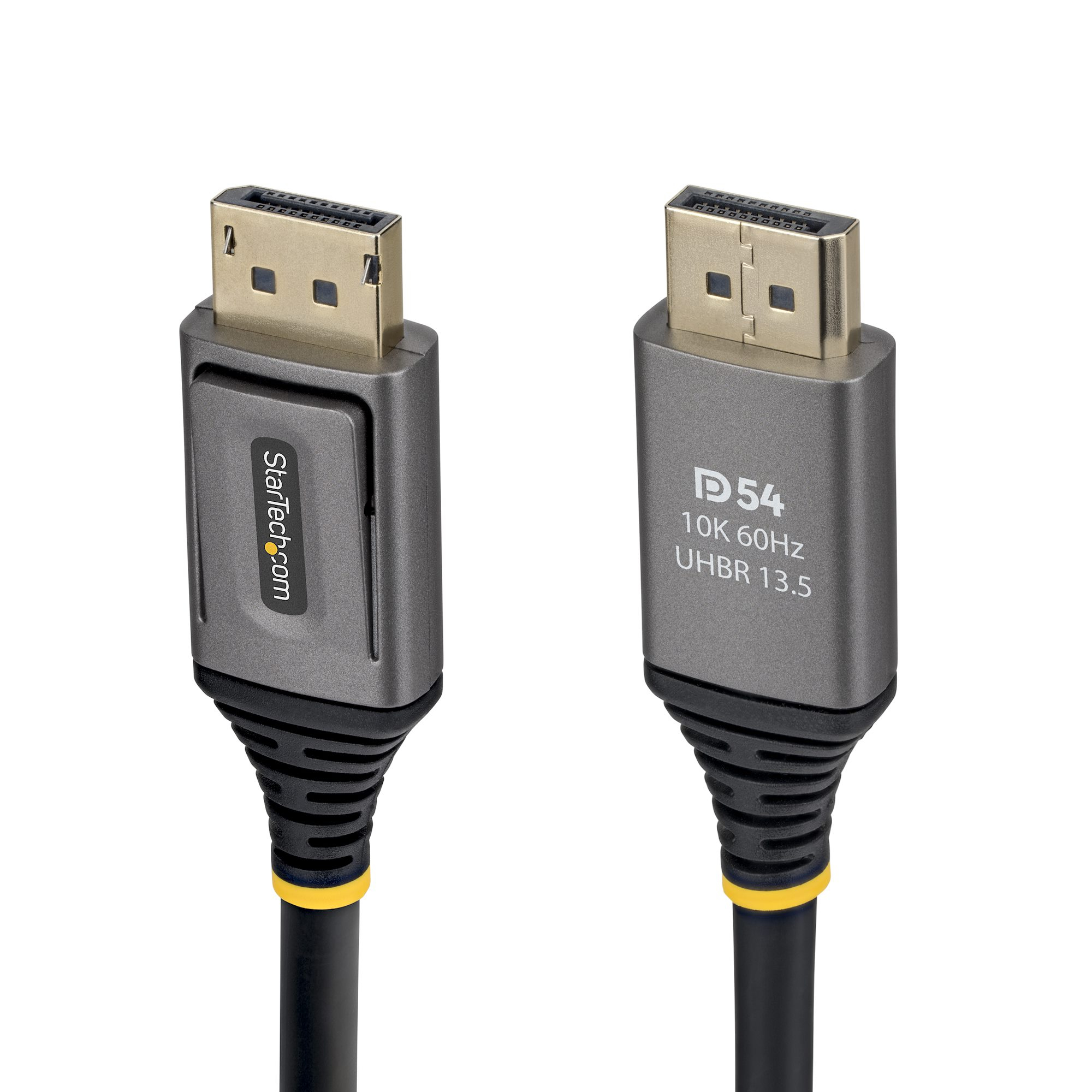

Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP54 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.
Seamless Compatibility
For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.
Durable Design
This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.
Supported DisplayPort 2.1 Features:
This DP54 DisplayPort cable supports the following DP 2.1 features:
• UHBR13.5 supports high refresh rates including uncompressed 5K 120Hz and 4K 144Hz
• DSC-compressed video up to 16K 30Hz / 10K 60Hz / 4K 240Hz 4:4:4 8-bit
• Uncompressed video resolutions up to 10K 30Hz / 8K 60Hz / 4K 144Hz 4:4:4 8-bit
• High-Bandwidth Digital Content Protection (HDCP) 2.3 for a secure connection between source and display
• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
• Display Stream Compression (DSC) 1.2a for maximum resolution output
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with previous DP versions
This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
Specs
| Features |
| Cable length |
0.5 m |
| Connector 1 |
DisplayPort |
| Connector 2 |
DisplayPort |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Maximum resolution |
15360 x 8640 pixels |
| Product colour |
Black |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Connector contacts plating |
Nickel |
| DisplayPort version |
2.1 |
| Supported graphics resolutions |
10240 x 4320, 7680 x 4320, 5120 x 2880, 4096 x 2160, 15360 x 8640 |
| Maximum refresh rate |
240 Hz |
| HDCP |
Yes |
| HDCP version |
2.3 |
| Display Stream Compression (DSC) |
Yes |
| Display Stream Compression (DSC) version |
1.2a |
| Cable shielding |
Aluminum mylar foil |
| Jacket material |
Thermoplastic elastomer (TPE) |
| Connector housing material |
Acrylonitrile butadiene styrene (ABS) |
| High Dynamic Range (HDR) supported |
Yes |
| Data transfer rate |
54 Gbit/s |
| Colour sampling |
4:4:4 |
| Cable type |
Round cable |
| Weight & dimensions |
| Cable diameter |
7 mm |
| Weight |
48 g |
| Operational conditions |
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Logistics data |
| Master (outer) case width |
450 mm |
| Master (outer) case length |
320 mm |
| Master (outer) case height |
200 mm |
| Products per master (outer) case |
30 pc(s) |
| Packaging data |
| Package width |
142 mm |
| Package depth |
170 mm |
| Package height |
30 mm |
| Package weight |
121 g |
| Certification |
| Compliance certificates |
RoHS |
Features
StarTech.com 50cm DisplayPort 2.1 Cable, VESA Certified DP54 DisplayPort Cable, Uncompressed 8K 60Hz, 10K 60Hz/8K 144Hz/4K 240Hz w/DSC 1.2a, DP 2.1 Monitor Cord. Cable length: 0.5 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: RoHS. Cable diameter: 7 mm, Weight: 48 g. Package width: 142 mm, Package depth: 170 mm, Package height: 30 mm. Quantity per pack: 1 pc(s)
Product Description
Unlock UHBR13.5 Bandwidth for Next-Gen Resolutions, High Refresh Rates, and Uncompressed 8K 60Hz video
Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP54 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.
Seamless Compatibility
For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.
Durable Design
This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.
Supported DisplayPort 2.1 Features:
This DP54 DisplayPort cable supports the following DP 2.1 features:
• UHBR13.5 supports high refresh rates including uncompressed 5K 120Hz and 4K 144Hz
• DSC-compressed video up to 16K 30Hz / 10K 60Hz / 4K 240Hz 4:4:4 8-bit
• Uncompressed video resolutions up to 10K 30Hz / 8K 60Hz / 4K 144Hz 4:4:4 8-bit
• High-Bandwidth Digital Content Protection (HDCP) 2.3 for a secure connection between source and display
• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
• Display Stream Compression (DSC) 1.2a for maximum resolution output
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with previous DP versions
This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
