Stock Status: 1x unit in stock
Displays HDMI signals across 4 displays simultaneously from one source device_x000D_
Supports resolutions up to 4K 60Hz 4:4:4, with additional support for HDR_x000D_
Extract digital and analogue audio from HDMI for non-HDMI amplifiers_x000D_
Features a neat switch for downscaling from 4K to 1080p_x000D_
2 year warranty_x000D_
_x000D_

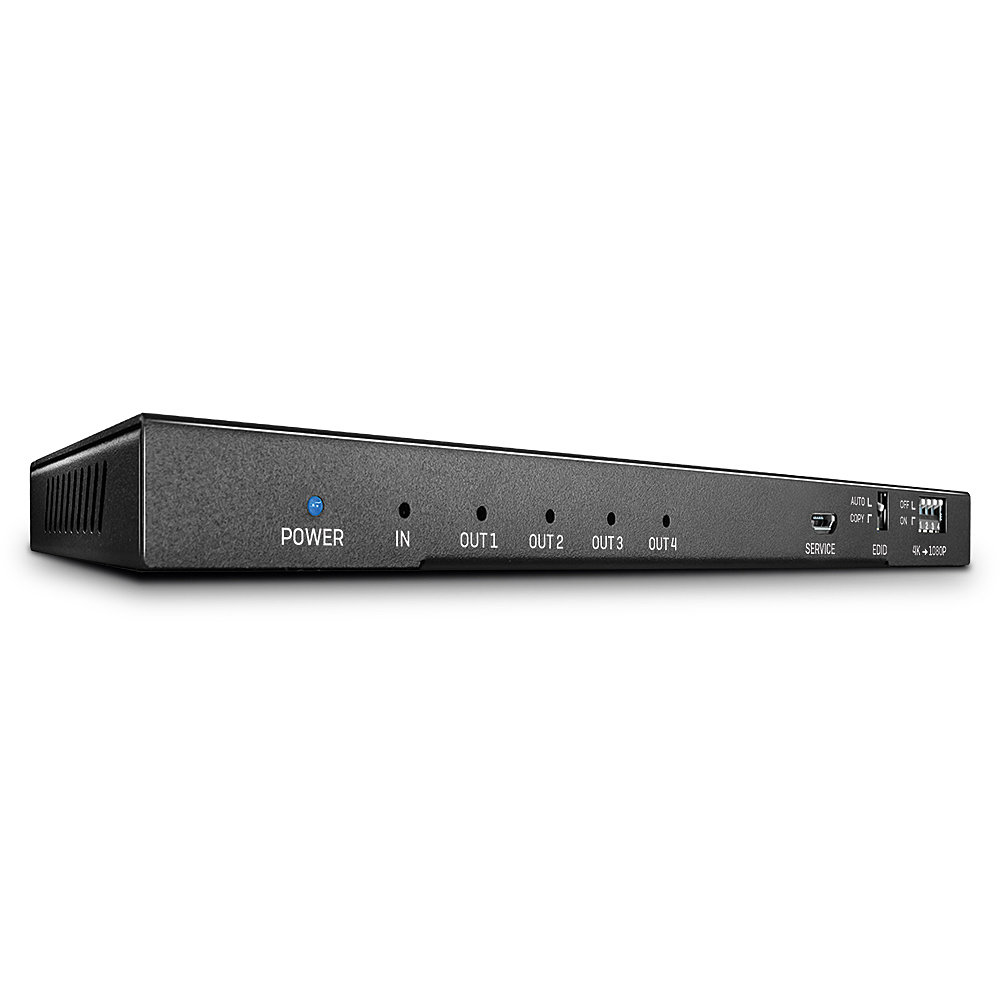

The Lindy 4 Port HDMI 18G Splitter with Audio is a multi-function solution for distributing high quality HDMI signals across 4 displays simultaneously from one source device, while extracting digital or analogue audio separately._x000D_
_x000D_
With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching quad display digital signage in retail scenarios, displaying sports across multiple screens in sports bars or distributing engaging multiscreen educational presentations at tradeshows._x000D_
_x000D_
The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI to connect non-HDMI amplifiers or soundbars, ideal for supporting video with immersive multichannel audio._x000D_
_x000D_
The additional ability to cascade this splitter up to three further levels allows for an extended HDMI splitting experience, ideal for multi-screen situations such as informational broadcasting in airports, train stations or stock exchange offices._x000D_
_x000D_
The splitters also feature an integrated switch to downscale the input signal to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display._x000D_
Specs
| Packaging content |
| Manual |
Y |
| AC adapter included |
Y |
| Ports & interfaces |
| Video ports quantity |
5 |
| Video port type |
HDMI |
| Video out |
4x HDMI |
| HDMI version |
2.0 |
| Audio ports quantity |
2 |
| DC-in jack |
Y |
| Weight & dimensions |
| Width |
180 mm |
| Depth |
14.4 mm |
| Height |
63 mm |
| Power |
| Output voltage |
5 V |
| Output current |
1 A |
| Packaging data |
| Package width |
212 mm |
| Package depth |
55 mm |
| Package height |
148 mm |
| Package weight |
228 g |
| Package type |
Box |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Features |
| Maximum resolution |
4096 x 2160 pixels |
| Product colour |
Black |
| Housing material |
Metal |
| HD type |
4K Ultra HD |
| Maximum refresh rate |
60 Hz |
| HDCP |
Y |
| LED indicators |
Power |
Features
Lindy 4 Port HDMI 2.0 18G Splitter with Audio. Video port type: HDMI, Video out: 4x HDMI. Maximum resolution: 4096 x 2160 pixels, Product colour: Black, Housing material: Metal. Output voltage: 5 V, Output current: 1 A. Width: 180 mm, Depth: 14.4 mm, Height: 63 mm. Package width: 212 mm, Package depth: 55 mm, Package height: 148 mm
Product Description
Displays HDMI signals across 4 displays simultaneously from one source device_x000D_
Supports resolutions up to 4K 60Hz 4:4:4, with additional support for HDR_x000D_
Extract digital and analogue audio from HDMI for non-HDMI amplifiers_x000D_
Features a neat switch for downscaling from 4K to 1080p_x000D_
2 year warranty_x000D_
_x000D_
The Lindy 4 Port HDMI 18G Splitter with Audio is a multi-function solution for distributing high quality HDMI signals across 4 displays simultaneously from one source device, while extracting digital or analogue audio separately._x000D_
_x000D_
With support for resolutions up to 4K 60Hz 4:4:4 8bit, this splitter is great for creating eye-catching quad display digital signage in retail scenarios, displaying sports across multiple screens in sports bars or distributing engaging multiscreen educational presentations at tradeshows._x000D_
_x000D_
The splitter also has separate optical and 3.5mm audio ports to easily extract audio from HDMI to connect non-HDMI amplifiers or soundbars, ideal for supporting video with immersive multichannel audio._x000D_
_x000D_
The additional ability to cascade this splitter up to three further levels allows for an extended HDMI splitting experience, ideal for multi-screen situations such as informational broadcasting in airports, train stations or stock exchange offices._x000D_
_x000D_
The splitters also feature an integrated switch to downscale the input signal to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display._x000D_
