Stock Status: 1x unit in stock

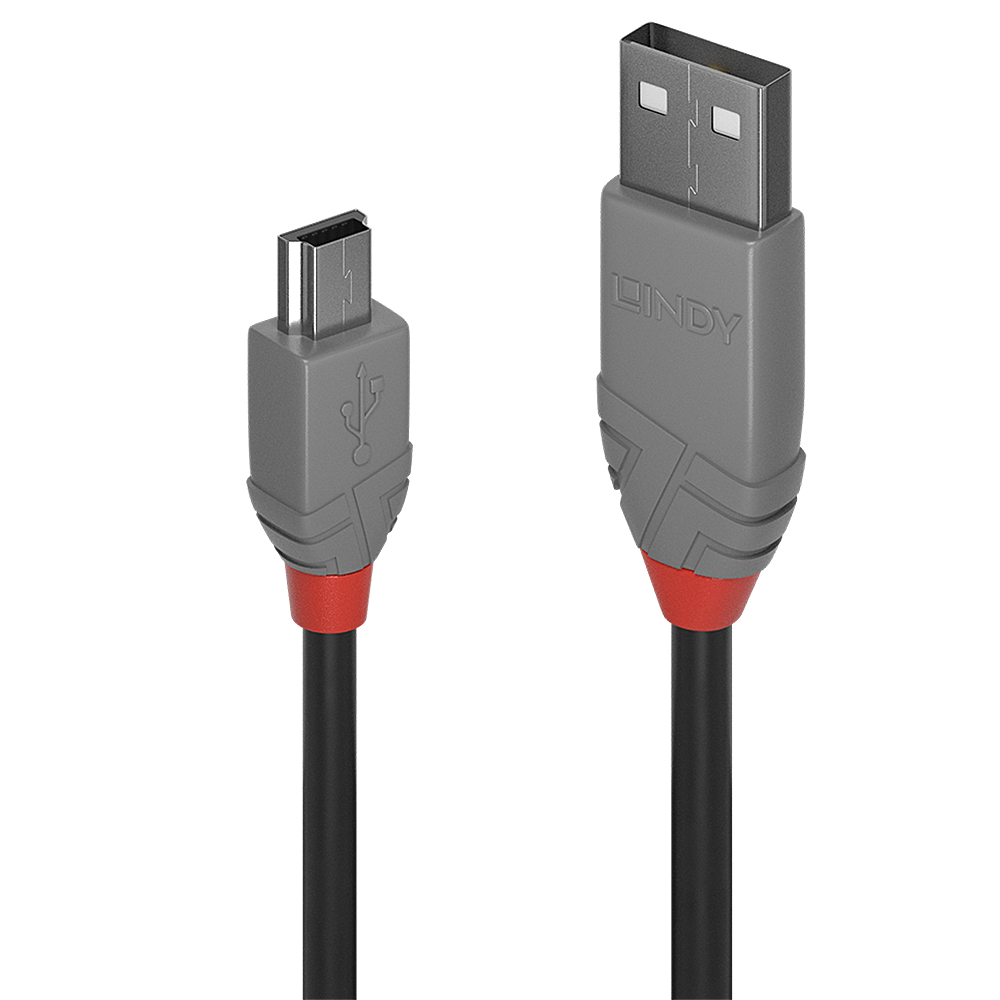

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to Mini-B cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
Anthra Line USB 2.0 Type A to Mini-B cables are available in lengths from 0.2m to 5m.
Specs
| Packaging data |
| Package type |
Polybag |
| Features |
| USB version |
USB 2.0 |
| Connector 1 |
USB A |
| Connector 2 |
Mini-USB B |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Black |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| AWG wire size |
28 |
| Connector material |
Nickel |
| Contact material |
Copper |
| Connector contacts plating |
Gold |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Conductor material |
Tinned copper |
| Connector shielding |
Yes |
| Connector shield material |
Aluminium |
| Connector housing material |
Polyvinyl chloride (PVC) |
| Maximum data transfer rate |
0.48 Gbit/s |
| Cable type |
Round cable |
| Nominal attenuation |
5.8db/km |
| Packaging content |
| Quantity per pack |
1 pc(s) |
| Logistics data |
| Harmonized System (HS) code |
84733080 |
| Weight & dimensions |
| Cable length |
5 m |
| Cable diameter |
3.8 mm |
| Bend radius (min) |
1.6 cm |
| Connector 1 dimensions (WxDxH) |
15.5 x 35 x 7.8 mm |
| Connector 2 dimensions (WxDxH) |
10 x 24 x 7.6 mm |
| Certification |
| Certification |
RoHS, REACH, UL |
| Operational conditions |
| Operating temperature (T-T) |
0 - 60 °C |
| Storage temperature (T-T) |
0 - 60 °C |
Features
Lindy 5m USB 2.0 Type A to Mini-B Cable, Anthra Line. Cable length: 5 m. Connector 1: USB A, Connector 2: Mini-USB B, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Gold, Product colour: Black
Product Description
From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to Mini-B cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel connectors maintain optimal signal integrity and maximum reliability.
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
Anthra Line USB 2.0 Type A to Mini-B cables are available in lengths from 0.2m to 5m.
