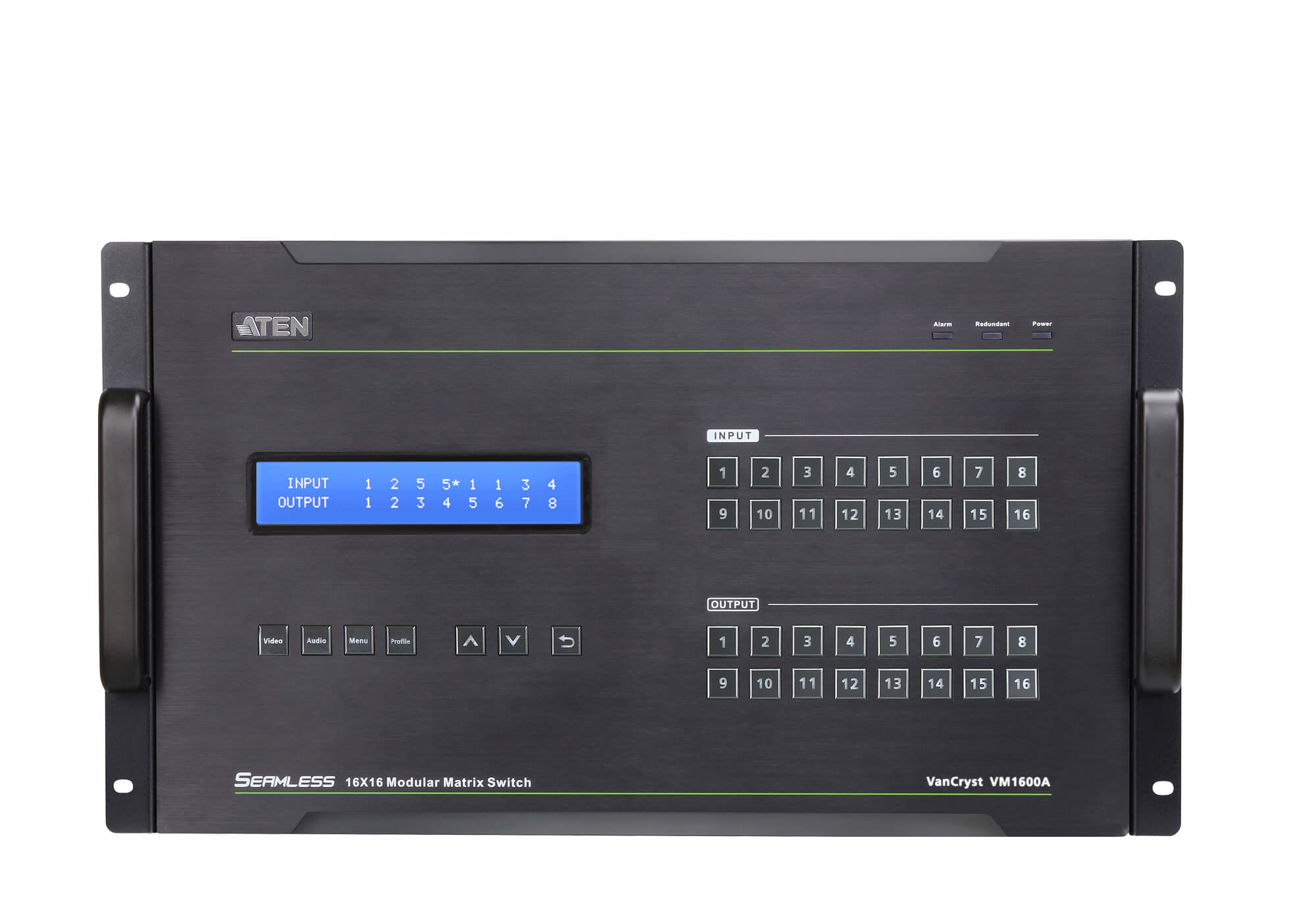

The ATEN Modular Matrix Solution Series comprises the VM1600A/VM3200 Modular Matrix Switch in tandem with a range of hot-swappable I/O boards. The solution offers real-time control and advanced access to manage 16/32 video sources and 16/32 displays simultaneously, through modular I/O boards in a single chassis. Empowered by ATEN Seamless Switch™ technology, the VM1600A/VM3200 video matrix switches incorporate a speed-progressive video switching function and a unique scaler that integrates seamlessly with video wall systems.
The ATEN Modular Matrix Solution is easily expandable and ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.
Boasting a sophisticated and intuitive design to deliver the best audio/visual distribution and control, reliability and lowest maintenance costs, the solution also incorporates ATEN’s Red Dot Award-winning GUI that can be accessed from anywhere over a network or the internet. Configuring a video wall or digital signage installation has never been easier.
Specs
| Packaging content |
| User guide |
Y |
| Cables included |
AC |
| Ports & interfaces |
| HDMI ports quantity |
32 |
| RJ-45 input ports |
1 |
| RS-232 ports |
1 |
| Weight & dimensions |
| Width |
482 mm |
| Depth |
466.6 mm |
| Height |
265.9 mm |
| Weight |
15.1 kg |
| Power |
| AC adapter input voltage |
100 - 240 V |
| AC adapter frequency |
50/60 Hz |
| Power consumption (typical) |
460 W |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Features |
| Material |
Metal |
| Product colour |
Black |
| HDCP |
Y |
| Supported graphics resolutions |
3840 x 2160, 4096 x 2160 |
| Bandwidth |
15.2 Gbit/s |
| LED indicators |
Y |
| Maximum resolution |
4096 x 2160 pixels |
| 3D |
Y |
| HD type |
4K Ultra HD |
| Rack capacity |
6U |
| HDCP version |
2.2 |
Features
ATEN VM1600A-AT-E. Material: Metal, Product colour: Black, Supported graphics resolutions: 3840 x 2160, 4096 x 2160. AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz, Power consumption (typical): 460 W. Width: 482 mm, Depth: 466.6 mm, Height: 265.9 mm. Cables included: AC
Product Description
The ATEN Modular Matrix Solution Series comprises the VM1600A/VM3200 Modular Matrix Switch in tandem with a range of hot-swappable I/O boards. The solution offers real-time control and advanced access to manage 16/32 video sources and 16/32 displays simultaneously, through modular I/O boards in a single chassis. Empowered by ATEN Seamless Switch™ technology, the VM1600A/VM3200 video matrix switches incorporate a speed-progressive video switching function and a unique scaler that integrates seamlessly with video wall systems.
The ATEN Modular Matrix Solution is easily expandable and ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.
Boasting a sophisticated and intuitive design to deliver the best audio/visual distribution and control, reliability and lowest maintenance costs, the solution also incorporates ATEN’s Red Dot Award-winning GUI that can be accessed from anywhere over a network or the internet. Configuring a video wall or digital signage installation has never been easier.
