Stock Status: 1x unit in stock

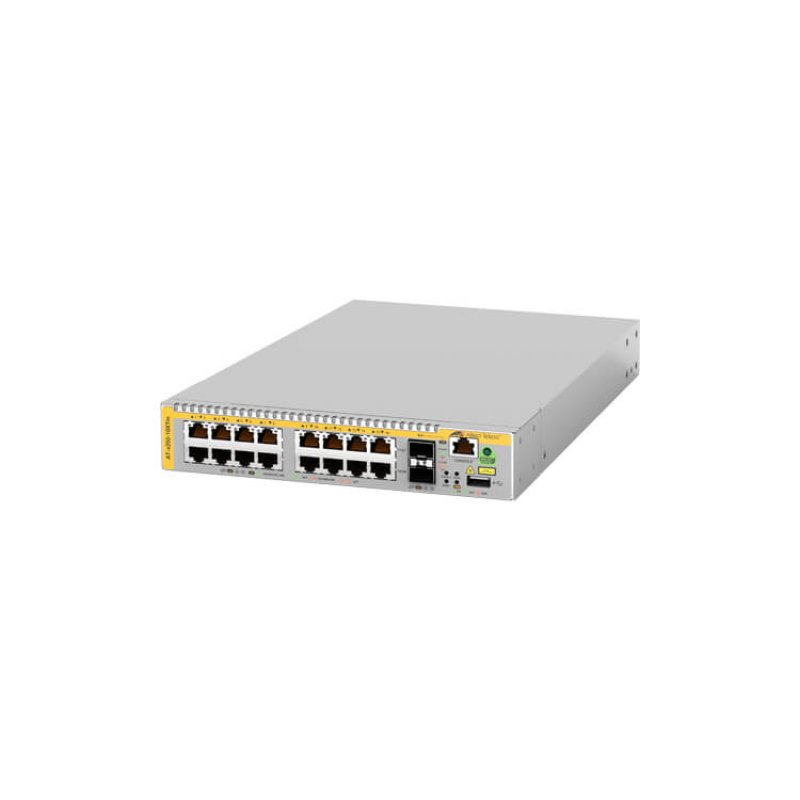

10 Gigabit Stackable Edge Switches
Allied Telesis x250 Series 10 Gigabit Layer 3 stackable switches provide resilient high-speed edge connectivity. All ports support up to 10G speed enabling seamless communication for enterprise servers and other modern applications, with multi-gigabit or fiber connectivity.
Enable a resilient network edge solution using Virtual Chassis Stacking (VCStack™)
Enjoy high-performing network access with multi-gigabit speeds of 1/2.5/5/10G on all edge ports to connect any device, old or new
Support distributed environments with secure long-distance 1/10G (SFP/SFP+) connectivity on fiber models
Maximize application performance with high throughput 10G (SFP/SFP+) uplink ports
Support resilient high-speed ring-based networks with Ethernet Protection Switched Ring (EPSRing™) and standards-based G.8032 ERPS
Reduce costs and automate network and device management with Autonomous Management Framework™ Plus (AMF Plus)
Specs
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
No |
| SFP+ module slots quantity |
2 |
| Networking |
| Networking standards |
IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az |
| 10G support |
Yes |
| Port mirroring |
Yes |
| Full duplex |
Yes |
| Policy-based routing |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Spanning tree protocol |
Yes |
| VLAN support |
Yes |
| Number of VLANs |
4094 |
| Power |
| Power supply included |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-25 - 70 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 3000 m |
| Weight & dimensions |
| Width |
210 mm |
| Depth |
346 mm |
| Height |
42.5 mm |
| Security |
| DHCP features |
DHCPv6 relay, DHCP snooping, DHCPv6 client |
| Access Control List (ACL) |
Yes |
| IGMP snooping |
Yes |
| Security algorithms |
SSH, SSL/TLS, SHA-1, SHA-256, SHA-384, SHA-512 |
| MAC address filtering |
Yes |
| SSH/SSL support |
Yes |
| Loop protection |
Yes |
| BPDU filtering/protection |
Yes |
| Authentication |
MAC-based authentication, Web-based authentication |
| Authentication type |
RADIUS, TACACS+ |
| Data transmission |
| MAC address table |
32000 entries |
| Switching capacity |
360 Gbit/s |
| Forwarding rate |
267.9 Mpps |
| Static route |
Yes |
| Number of static routes |
16 |
| Jumbo frames support |
Yes |
| Jumbo frames |
10000 |
| Packet buffer memory |
8 MB |
| Management features |
| Switch type |
Managed |
| Switch layer |
L3 |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| ARP inspection |
Yes |
| System event log |
Yes |
| MIB support |
Y |
| Design |
| Rack mounting |
Yes |
| Stackable |
Yes |
| Form factor |
1U |
| Product colour |
Grey |
| LED indicators |
Yes |
| Performance |
| Memory type |
DDR4-SDRAM |
| Internal memory |
1024 MB |
| Flash memory |
256 MB |
| Multicast features |
| Multicast support |
Yes |
Features
Allied Telesis AT-x250-18XTm-50. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 32000 entries, Switching capacity: 360 Gbit/s. Networking standards: IEEE 802.2, IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3x, IEEE.... Rack mounting, Form factor: 1U
Product Description
10 Gigabit Stackable Edge Switches
Allied Telesis x250 Series 10 Gigabit Layer 3 stackable switches provide resilient high-speed edge connectivity. All ports support up to 10G speed enabling seamless communication for enterprise servers and other modern applications, with multi-gigabit or fiber connectivity.
Enable a resilient network edge solution using Virtual Chassis Stacking (VCStack™)
Enjoy high-performing network access with multi-gigabit speeds of 1/2.5/5/10G on all edge ports to connect any device, old or new
Support distributed environments with secure long-distance 1/10G (SFP/SFP+) connectivity on fiber models
Maximize application performance with high throughput 10G (SFP/SFP+) uplink ports
Support resilient high-speed ring-based networks with Ethernet Protection Switched Ring (EPSRing™) and standards-based G.8032 ERPS
Reduce costs and automate network and device management with Autonomous Management Framework™ Plus (AMF Plus)
