Stock Status: 1x unit in stock
The Single mode OS2 cables are designed to support very high transfer speed and have universal loose tube construction, the ALOGIC cables are compliant to fibre type B1.3 in IEC 60793-2-50 G652d capable of supporting up to 10gigabit applications over very long distances.
Specs
| Weight & dimensions |
| Cable diameter |
3 mm |
| Other features |
| Number of optical fibres |
2 |
| Features |
| Cable length |
2 m |
| Connector 1 |
LC |
| Connector 2 |
LC |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Product colour |
Yellow |
| Jacket material |
Low smoke zero halogen (LSZH) |
| Fibre optic type |
OS2 |
| Full duplex |
Yes |
| Core diameter |
9 µm |
| Cladding diameter |
125 µm |
| Fiber mode structure |
Single-mode |
| Wavelengths supported |
1300,1550 nm |
| Ethernet interface type |
10 Gigabit Ethernet |
| Data transfer rate |
10 Gbit/s |
| Insertion loss |
0.3 dB |
| Logistics data |
| Harmonized System (HS) code |
85447000 |
| Packaging data |
| Quantity per pack |
1 pc(s) |
Features

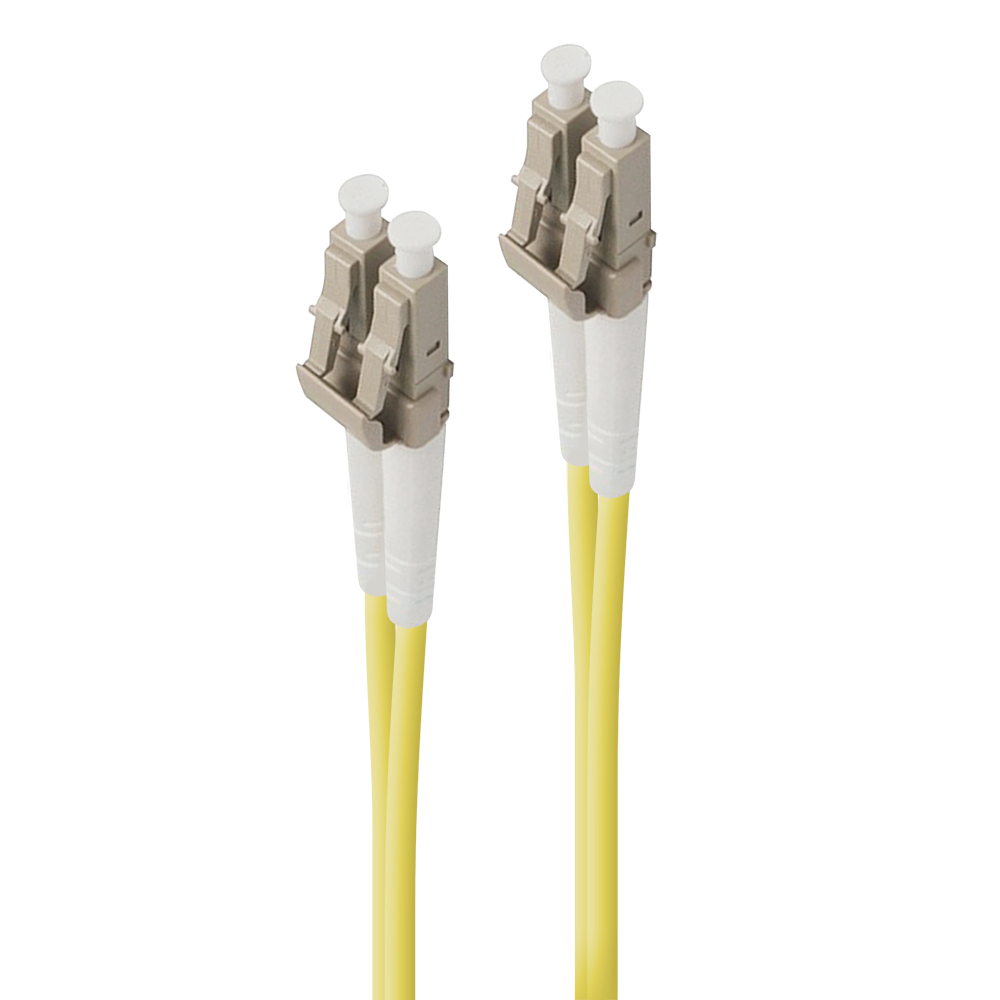

ALOGIC 2m LC-LC Single Mode Duplex LSZH Fibre Cable 09/125 OS2. Cable length: 2 m, Fibre optic type: OS2, Connector 1: LC, Connector 2: LC, Core diameter: 9 µm, Full duplex
Product Description
The Single mode OS2 cables are designed to support very high transfer speed and have universal loose tube construction, the ALOGIC cables are compliant to fibre type B1.3 in IEC 60793-2-50 G652d capable of supporting up to 10gigabit applications over very long distances.
