Stock Status: 1x unit in stock

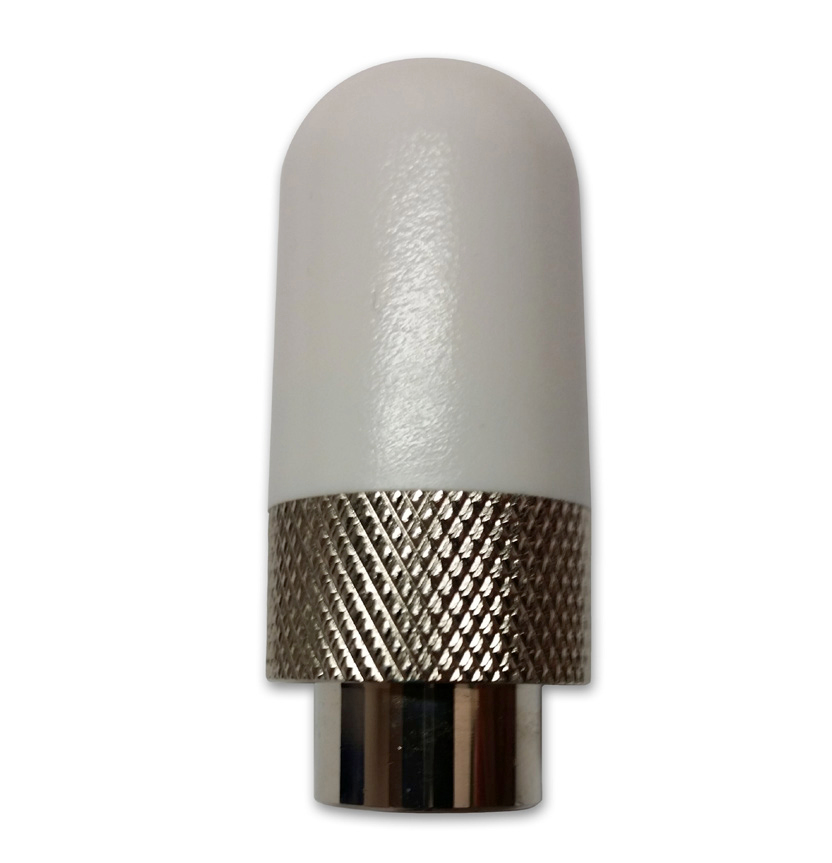

AP-ANT-32 is a kit of three small downtilt omni antennas with nominal 360° H x 45° V beamwidths.
Specs
| Weight & dimensions |
| Height |
44.2 mm |
| Diameter |
1.96 cm |
| Weight |
30 g |
| Operational conditions |
| Operating temperature (T-T) |
-45 - 65 °C |
| Power |
| Power consumption (max) |
20 W |
| Features |
| Antenna type |
Omni-directional antenna |
| Polarization |
Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) |
2:1 |
| Purpose |
Indoor |
| Product colour |
Grey,Metallic |
| Packaging content |
| Quantity |
3 |
| Performance |
| Antenna gain level (max) |
4 dBi |
| Frequency band |
2.4-2.5/4.9-6.0 GHz |
| Antenna gain (2.4 GHz) |
2 dBi |
| Antenna gain (5 GHz) |
4 dBi |
| Impedance |
50 Ω |
| Horizontal beam width |
360° |
| Vertical beam width |
45° |
Features
Hewlett Packard Enterprise AP-ANT-32. Antenna gain level (max): 4 dBi, Frequency band: 2.4-2.5/4.9-6.0 GHz, Antenna gain (2.4 GHz): 2 dBi. Antenna type: Omni-directional antenna, Polarization: Vertical polarization, Voltage Standing Wave Ratio (VSWR): 2:1. Power consumption (max): 20 W. Height: 44.2 mm, Diameter: 1.96 cm, Weight: 30 g
Product Description
AP-ANT-32 is a kit of three small downtilt omni antennas with nominal 360° H x 45° V beamwidths.
