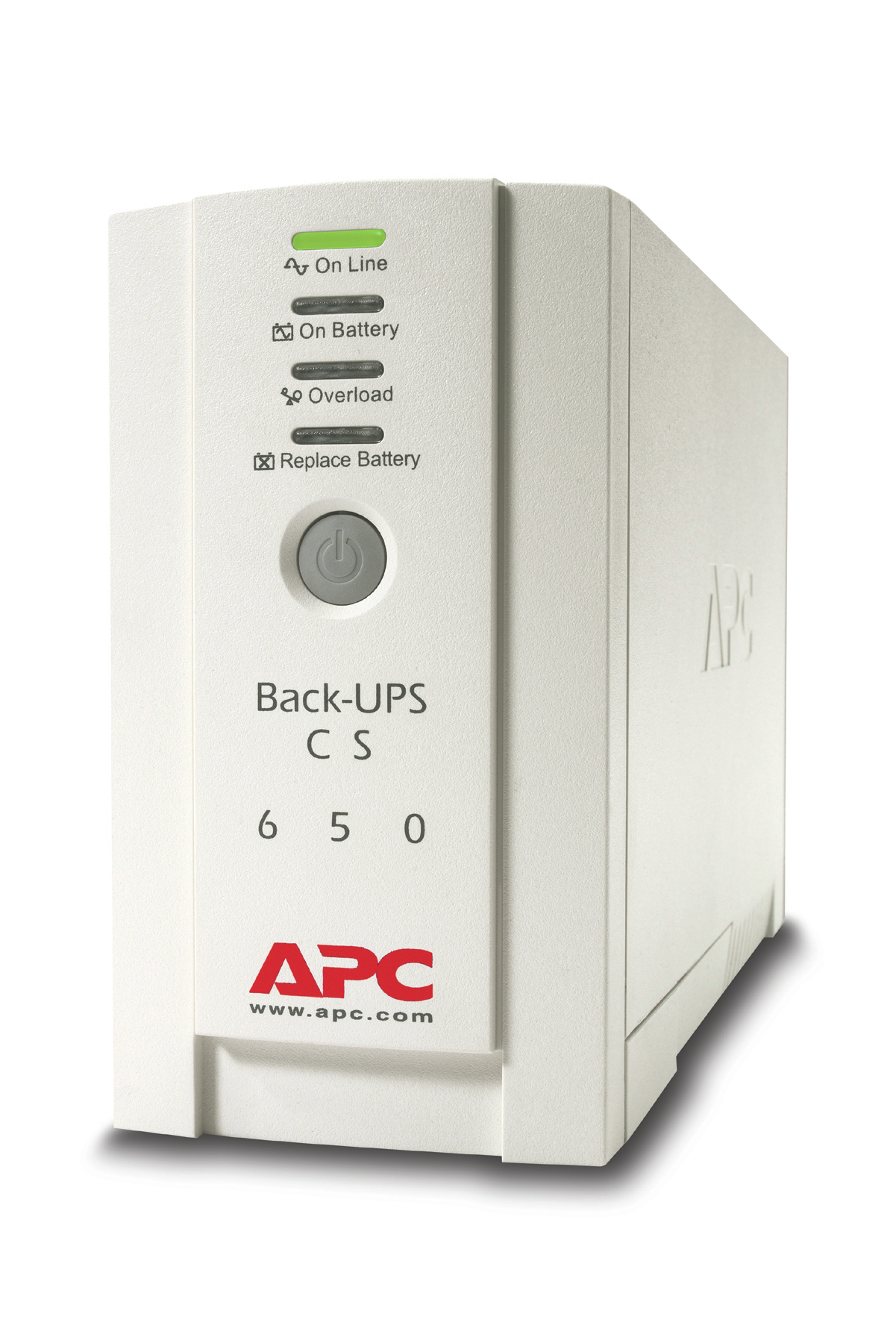

The re-invention of the most relied upon desktop UPS in history: the Back-UPS!
The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
Specs
| Weight & dimensions |
| Width |
91 mm |
| Depth |
284 mm |
| Height |
165 mm |
| Weight |
6.03 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| AC outlets quantity |
4 AC outlet(s) |
| Number of output IEC jumpers |
2 |
| USB port |
Y |
| Other features |
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
| Filtering |
Y |
| Packaging content |
Detachable IEC C13 to IEC C14 power cords |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
95 VAh |
| Battery voltage |
12 V |
| Typical backup time at full load |
4.7 min |
| Typical backup time at half load |
14.7 min |
| Battery life (max) |
6 year(s) |
| Battery recharge time |
8 h |
| Automatic battery test |
Y |
| Design |
| Form factor |
Tower |
| Product colour |
Beige |
| Cable length |
2 m |
| LED indicators |
Y |
| Energy Star certified |
Y |
| RoHS compliance |
Y |
| Certification |
A-tick, C-tick, CE, GOST, NEMKO |
| Features |
| UPS topology |
Standby (Offline) |
| Output power capacity |
0.65 kVA |
| Output power |
400 W |
| Waveform |
Sine |
| Input operation voltage (min) |
160 V |
| Input operation voltage (max) |
286 V |
| Input frequency |
50/60 Hz |
| Output frequency regulation |
47 - 63 Hz |
| Maximum current |
7 A |
| Surge energy rating |
310 J |
| Hold time (min) |
6 ms |
| Hold time (max) |
10 ms |
| Efficiency |
98.9% |
| Noise level |
45 dB |
| Surge protection |
Y |
| Surge protection features |
Digital Subscriber Line (DSL), Fax, Modem, Telephone |
| Audible alarm(s) |
Y |
| Audible alarm modes |
Low battery alarm, Overload alarm |
| Logistics data |
| Quantity per pallet |
48 pc(s) |
| Quantity per master (outer) case |
1 pc(s) |
| Products per pallet |
48 pc(s) |
| Products per master (outer) case |
1 pc(s) |
| Packaging data |
| Cables included |
USB cable |
| Quick installation guide |
Y |
| Software CD |
Y |
| Bundled software |
PowerChute Personal Edition |
| Package width |
185 mm |
| Package depth |
415 mm |
| Package height |
494 mm |
| Package weight |
7.31 kg |
| Technical details |
| Sustainability certificates |
RoHS, ENERGY STAR |
Features
APC Back-UPS. UPS topology: Standby (Offline), Output power capacity: 0.65 kVA, Output power: 400 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery capacity: 95 VAh. Form factor: Tower, Product colour: Beige, Cable length: 2 m. Width: 91 mm, Depth: 284 mm, Height: 165 mm
Product Description
The re-invention of the most relied upon desktop UPS in history: the Back-UPS!
The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management features and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These features along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems.
