Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions.
Agility
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Cost Savings
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Specs
| Weight & dimensions |
| Width |
482 mm |
| Depth |
44 mm |
| Height |
44 mm |
| Weight |
580 g |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage temperature (T-T) |
-25 - 65 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Power |
| Nominal input voltage |
200/208/230 V |
| Maximum current |
16 A |
| AC input frequency |
50/60 Hz |
| Nominal output voltage |
208/230 V |
| Load capacity |
3680 VA |
| Maximum input current per phase |
16 A |
| Ports & interfaces |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C20 coupler |
| Packaging content |
| Manual |
Y |
| Design |
| PDU types |
Basic |
| Rack capacity |
1U |
| Type |
Single-phase |
| Mounting |
Horizontal |
| Housing material |
Aluminium |
| Product colour |
Black |
| On/off switch |
N |
| Technical details |
| Sustainability certificates |
RoHS |
| Features |
| Daisy chain |
N |
| Cable length |
2.5 m |
| Certification |
CE, TUV |
| Packaging data |
| Package weight |
1.18 kg |
| Package width |
560 mm |
| Package depth |
80 mm |
| Package height |
150 mm |
Features

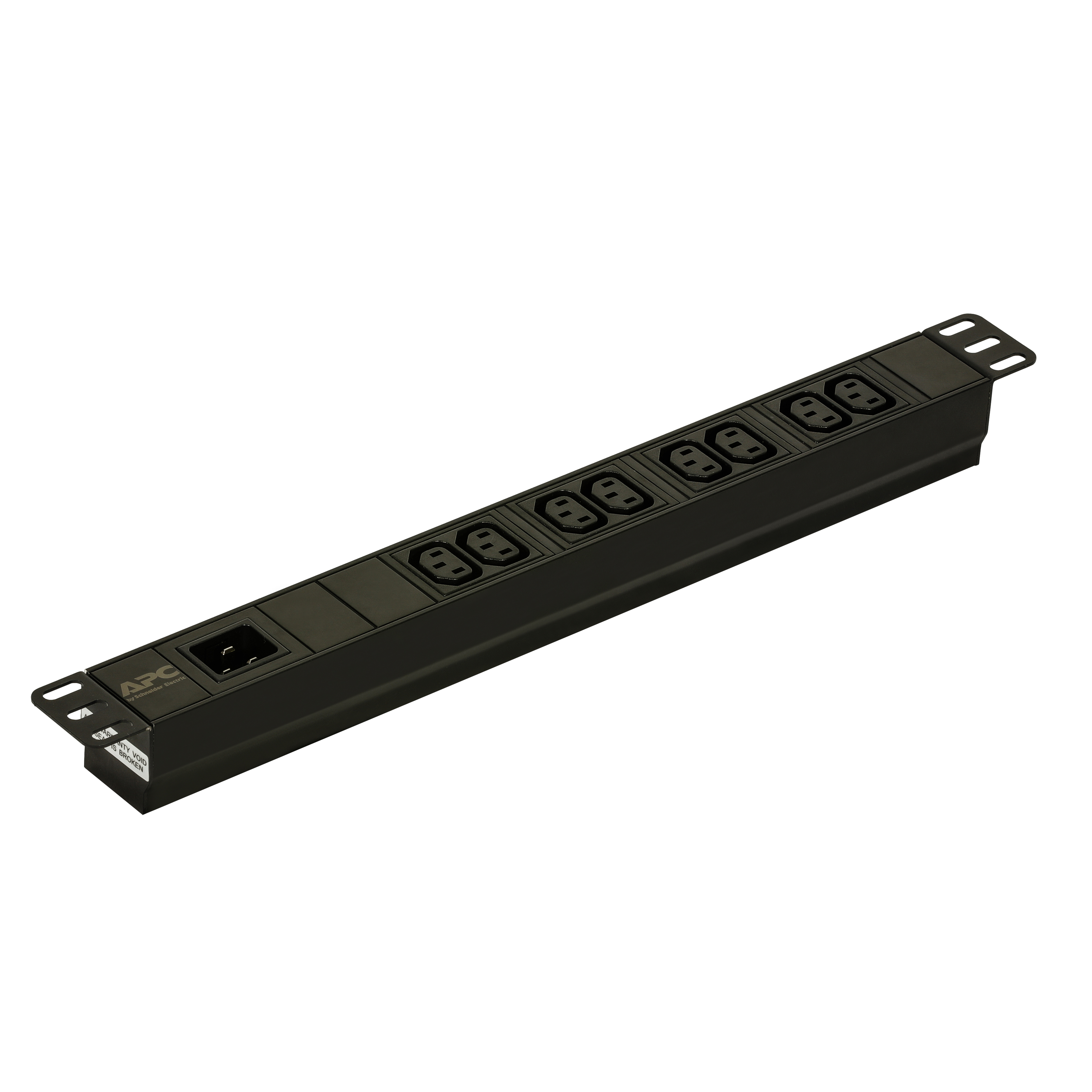

APC EPDU1016B. PDU types: Basic, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Cable length: 2.5 m, Certification: CE, TUV. Nominal input voltage: 200/208/230 V, Maximum current: 16 A, AC input frequency: 50/60 Hz. Width: 482 mm, Depth: 44 mm, Height: 44 mm
Product Description
Easy Basic PDU provide reliable rack power distribution units (PDU) that offer more than a power strip for server rack and network rack solutions.
Agility
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Cost Savings
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
