Features:
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities
Specs
Weight & dimensions |
Dimensions (WxDxH) |
56 x 44 x 1619 mm |
Weight |
5.57 kg |
Operational conditions |
Operating temperature (T-T) |
-25 - 65 °C |
Storage temperature (T-T) |
0 - 45 °C |
Operating relative humidity (H-H) |
0 - 95% |
Storage relative humidity (H-H) |
0 - 95% |
Power |
Nominal input voltage |
230 V |
Nominal output voltage |
230 V |
Output voltage |
230 V |
Load capacity |
7680 VA |
Maximum input current per phase |
32 A |
Maximum total current draw per phase |
32 A |
Maximum power |
7680 W |
Ports & interfaces |
AC outlets quantity |
24 AC outlet(s) |
AC outlet types |
C13 coupler, C19 coupler |
Power plug |
IEC 60309 |
Input connection type |
IEC 309 32A |
Output connections |
(20) IEC 320 C13
(4) IEC 320 C19
|
I/O ports |
(20) IEC 320 C13
(4) IEC 320 C19
IEC 309 32A
|
Design |
PDU types |
Basic |
Rack capacity |
0U |
Type |
Single-phase |
Mounting |
Vertical |
Product colour |
Black |
Features |
Cable length |
3050 m |
Packaging data |
Package dimensions (WxDxH) |
152 x 127 x 2134 mm |
Package weight |
6.48 kg |
Features

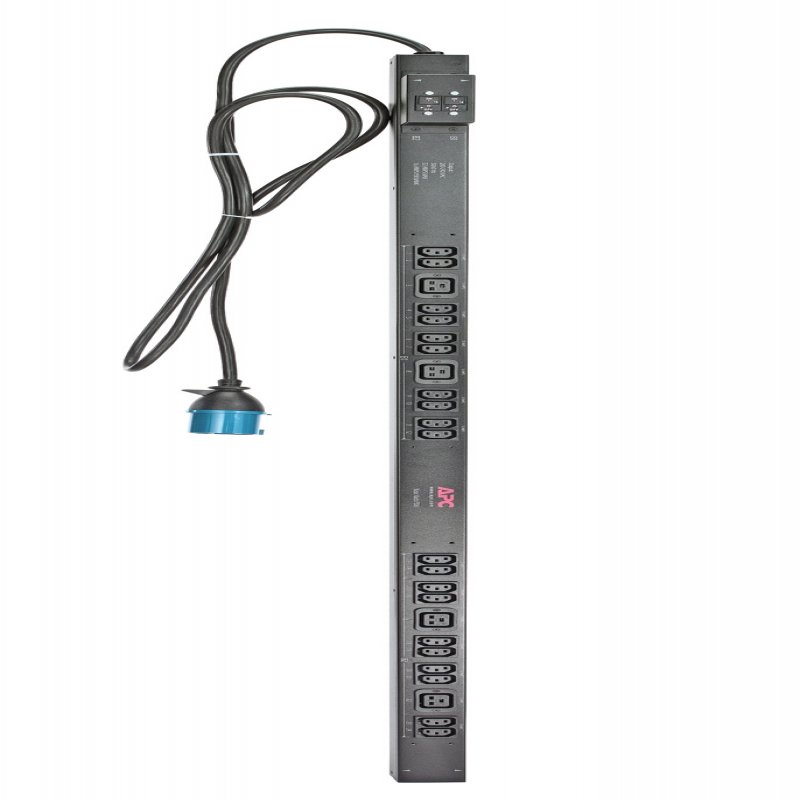

APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3050 m. Nominal input voltage: 230 V, Nominal output voltage: 230 V, Output voltage: 230 V. Dimensions (WxDxH): 56 x 44 x 1619 mm, Weight: 5.57 kg
Product Description
Features:
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities
