Stock Status: 1x unit in stock
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
High density, double-conversion on-line power protection with scalable runtime.
Includes : CD with software , Country-specific detachable power cord , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , USB cable , Warranty card
Specs
| Weight & dimensions |
| Width |
432 mm |
| Depth |
584 mm |
| Height |
85 mm |
| Weight |
25 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
C20 coupler |
| AC outlets quantity |
10 AC outlet(s) |
| Number of output IEC jumpers |
2 |
| USB port |
Y |
| Serial interface |
Y |
| Serial interface type |
RJ-45 |
| SmartSlot |
Y |
| Other features |
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
367 VAh |
| Number of batteries supported |
1 |
| Typical backup time at full load |
3.9 min |
| Typical backup time at half load |
11.6 min |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
3 h |
| Hot-swap battery |
Y |
| Automatic battery test |
Y |
| Cold start |
Y |
| Design |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Rack capacity |
2U |
| Cable length |
2.44 m |
| LED indicators |
Y |
| Display |
LCD |
| International Protection (IP) code |
IP20 |
| Energy Star certified |
Y |
| RoHS compliance |
Y |
| Certification |
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH |
| Features |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
2.2 kVA |
| Output power |
1980 W |
| Waveform |
Sine |
| Input operation voltage (min) |
100 V |
| Input operation voltage (max) |
275 V |
| Input frequency |
40/70 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Output frequency regulation |
50/60 Hz |
| Surge energy rating |
340 J |
| Efficiency |
92.2% |
| Crest factor |
3:1 |
| Emergency Power Off (EPO) |
Y |
| Noise level |
55 dB |
| Surge protection |
Y |
| Audible alarm(s) |
Y |
| Web-based management |
Y |
| Auto-restart |
Y |
| Logistics data |
| Quantity per pallet |
12 pc(s) |
| Products per pallet |
12 pc(s) |
| Packaging data |
| Rack mount kit |
Y |
| Bracket |
Y |
| Cables included |
USB cable |
| Quick installation guide |
Y |
| Software CD |
Y |
| Package width |
599 mm |
| Package depth |
810 mm |
| Package height |
246 mm |
| Package weight |
34 kg |
| Technical details |
| Sustainability certificates |
RoHS, ENERGY STAR |
Features

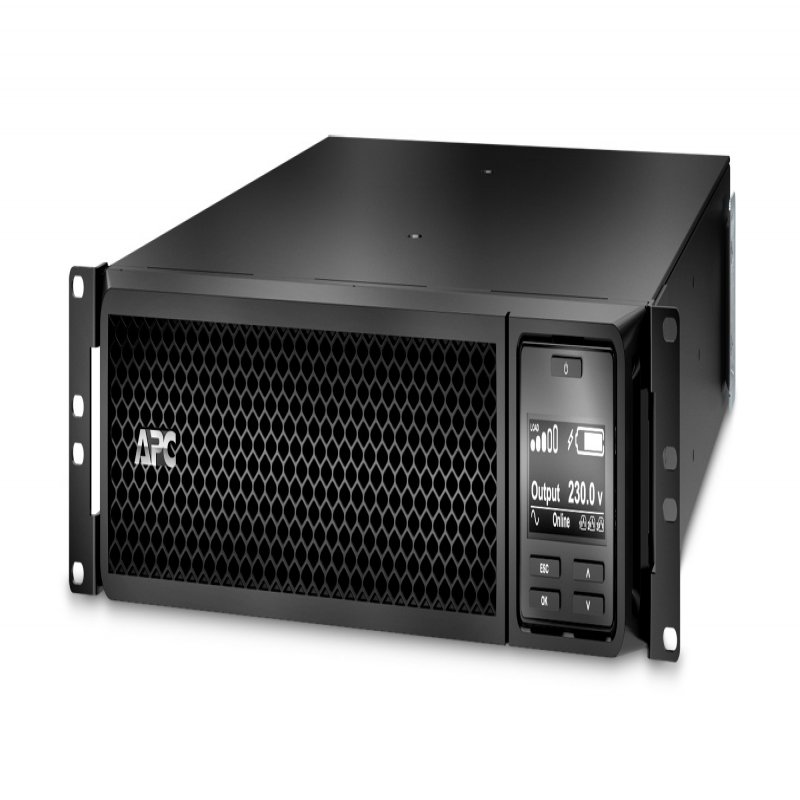

APC Smart-UPS On-Line. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 367 VAh, Typical backup time at full load: 3.9 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 584 mm, Height: 85 mm
Product Description
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
High density, double-conversion on-line power protection with scalable runtime.
Includes : CD with software , Country-specific detachable power cord , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , USB cable , Warranty card
