Stock Status: 1x unit in stock
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Audible alarms
Provides notification of changing utility power and UPS power conditions
LED status display
Quickly understand unit and power status with visual indicators.
Specs
| Weight & dimensions |
| Width |
130 mm |
| Depth |
365 mm |
| Height |
120 mm |
| Weight |
4.5 kg |
| Package width |
186 mm |
| Package depth |
441 mm |
| Package height |
190 mm |
| Package weight |
5 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 900 m |
| Non-operating altitude |
0 - 4500 m |
| Ports & interfaces |
| AC outlet types |
Type F |
| Power plug |
Type F |
| AC outlets quantity |
8 AC outlet(s) |
| Number of type F outputs |
8 |
| USB port |
Y |
| USB 2.0 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
3 |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
93 Ah |
| Typical backup time at full load |
2 min |
| Typical backup time at half load |
9 min |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
16 h |
| Hot-swap battery |
Y |
| Automatic battery test |
Y |
| Cold start |
Y |
| Design |
| Form factor |
Compact |
| Product colour |
Black |
| Cable length |
1.83 m |
| LED indicators |
Y |
| Certification |
REACH, CE, EAC |
| Features |
| UPS topology |
Standby (Offline) |
| Output power capacity |
0.85 kVA |
| Output power |
520 W |
| Waveform |
Sine |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
230 V |
| Input frequency |
47/63 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
230 V |
| Output frequency |
47/63 Hz |
| Automatic Voltage Regulation (AVR) |
N |
| Maximum current |
6 A |
| Surge energy rating |
310 J |
| Noise level |
45 dB |
| Surge protection |
Y |
| Surge protection features |
Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone |
| Audible alarm(s) |
Y |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| Logistics data |
| Master (outer) case gross weight |
16 kg |
| Packaging data |
| Manual |
Y |
| Technical details |
| Sustainability certificates |
RoHS |
| Harmonized System (HS) code |
85078000 |
Features

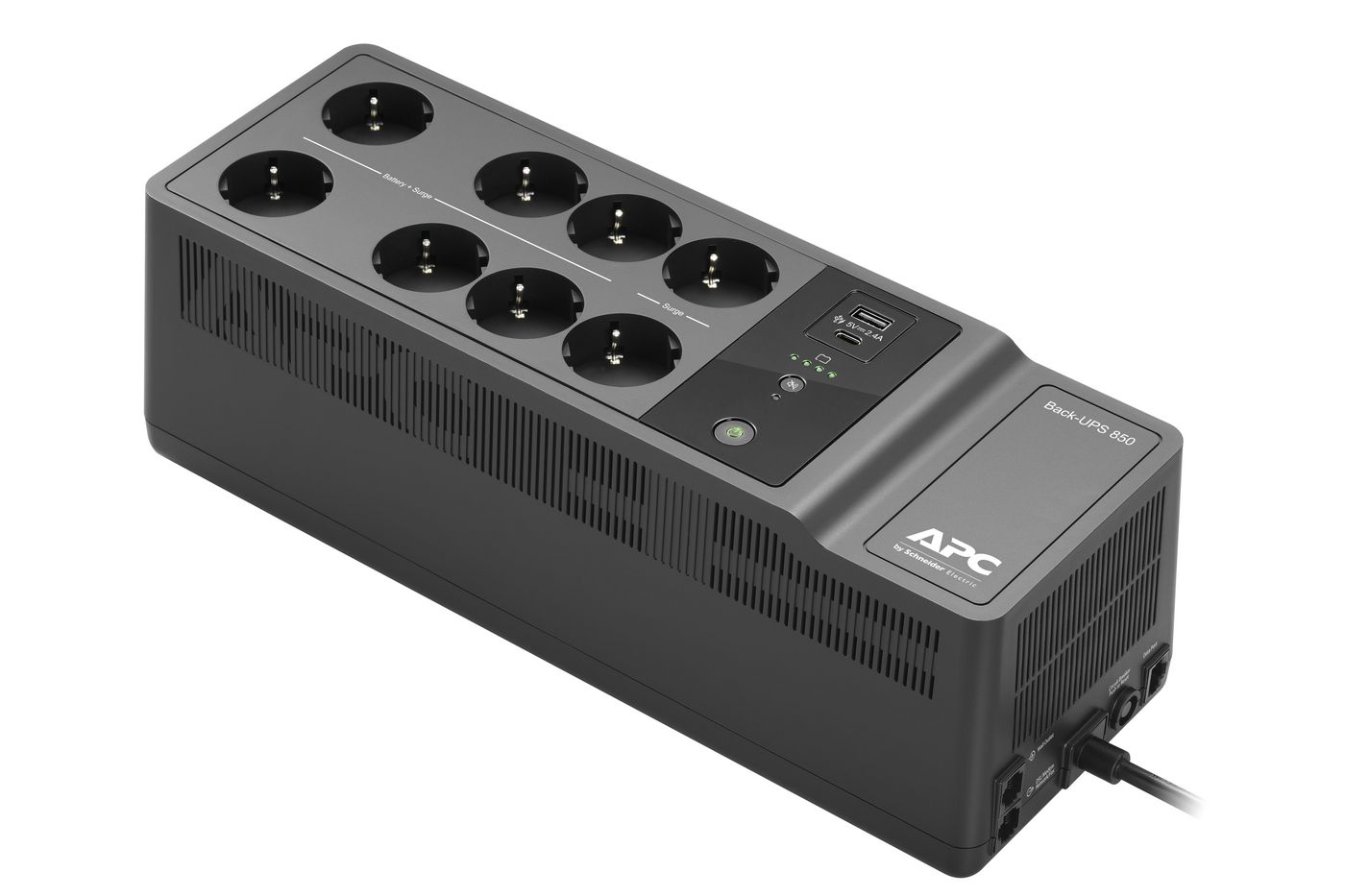

APC Back-UPS 850VA 230V USB Type-C and A charging ports. UPS topology: Standby (Offline), Output power capacity: 0.85 kVA, Output power: 520 W. AC outlet types: Type F, Power plug: Type F, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 93 Ah, Typical backup time at full load: 2 min. Form factor: Compact, Product colour: Black, Cable length: 1.83 m. Width: 130 mm, Depth: 365 mm, Height: 120 mm
Product Description
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Audible alarms
Provides notification of changing utility power and UPS power conditions
LED status display
Quickly understand unit and power status with visual indicators.
