Stock Status: 1x unit in stock
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Wall-mount holes
Allow flexibility for setup in tight locations and mounting on wall or other surfaces.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Sleek design
Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Cold-start capable
Provides temporary battery power when the utility power is out.
Advanced Safety Features
Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Specs
| Weight & dimensions |
| Width |
160 mm |
| Depth |
305 mm |
| Height |
92 mm |
| Weight |
5.3 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating altitude |
0 - 1968.3 m |
| Ports & interfaces |
| AC outlet types |
Type F |
| AC outlets quantity |
4 AC outlet(s) |
| Other features |
| Nominal output voltage |
230 V |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
7 Ah |
| Battery voltage |
12 V |
| Battery recharge time |
8 h |
| Cold start |
Yes |
| Design |
| Form factor |
Compact |
| Product colour |
Black |
| Cable length |
1.52 m |
| LED indicators |
Yes |
| Features |
| UPS topology |
Line-Interactive |
| Output power capacity |
0.8 kVA |
| Output power |
450 W |
| Waveform |
Sine |
| Input operation voltage (min) |
170 V |
| Input operation voltage (max) |
280 V |
| Input frequency |
50/60 Hz |
| Output frequency |
50/60 Hz |
| Automatic Voltage Regulation (AVR) |
Yes |
| Surge energy rating |
156 J |
| Transfer time (Line Mode to Battery Mode) |
6 ms |
| Number of input phases |
1 |
| Number of output phases |
1 |
| Noise level |
40 dB |
| Surge protection |
Yes |
| Audible alarm(s) |
Yes |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| Logistics data |
| Harmonized System (HS) code |
85078000 |
| Packaging data |
| Package width |
373 mm |
| Package depth |
143 mm |
| Package height |
237 mm |
| Package weight |
5.6 kg |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
CE
REACH |
Features

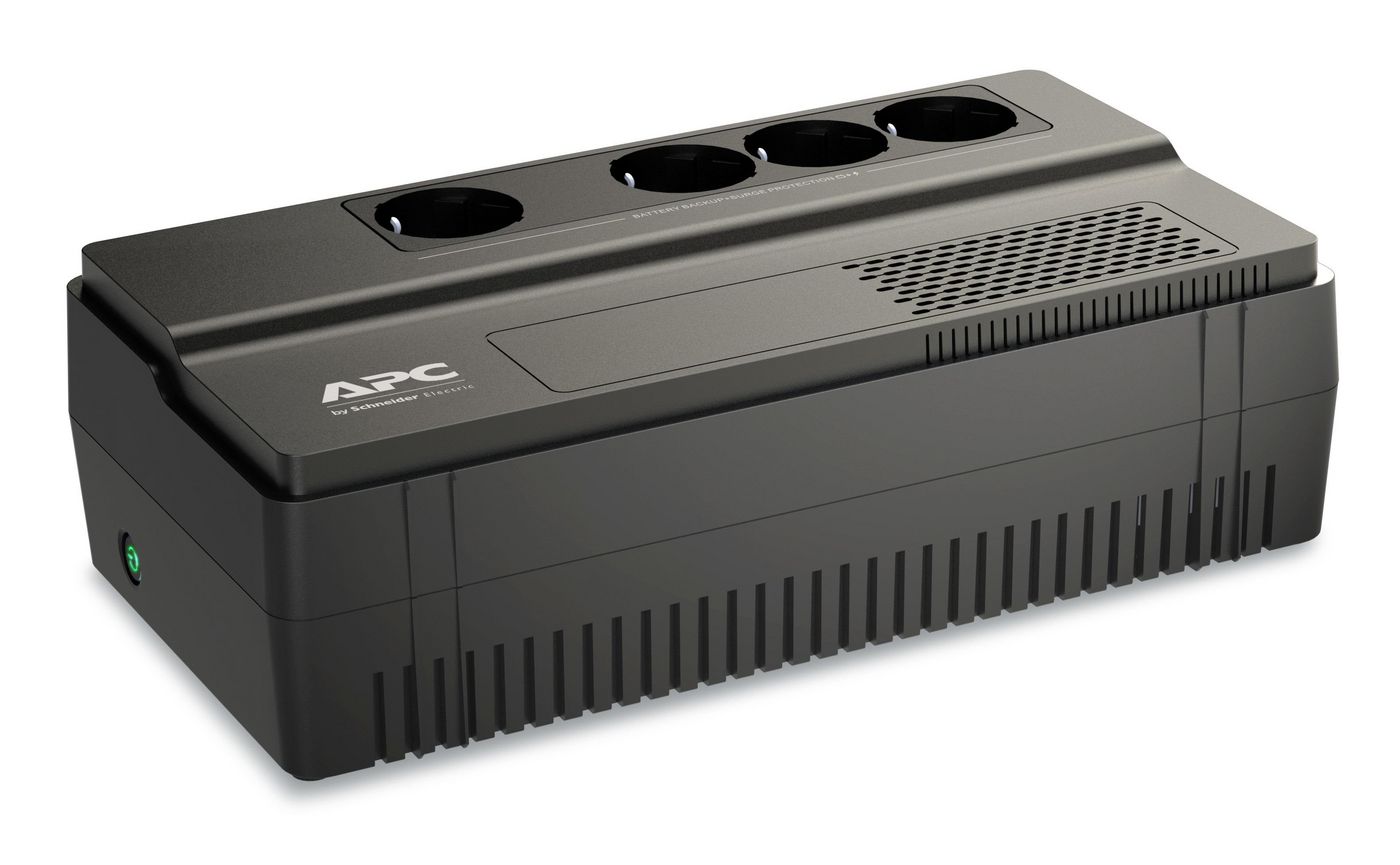

APC BV800I-GR. UPS topology: Line-Interactive, Output power capacity: 0.8 kVA, Output power: 450 W. AC outlet types: Type F, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Compact, Product colour: Black, Cable length: 1.52 m. Compliance certificates: RoHS, Certification: CE REACH
Product Description
Automatic Voltage Regulation (AVR)
Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
Wall-mount holes
Allow flexibility for setup in tight locations and mounting on wall or other surfaces.
Transformer-block spaced outlets
Protect equipment with input transformer blocks without blocking access to other receptacles.
Sleek design
Slim, modern design can be upright, flat, or wall-mounted to comfortably fit any electronics set-up and complement home décor.
Boost Automatic Voltage Regulation (AVR)
Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
Cold-start capable
Provides temporary battery power when the utility power is out.
Advanced Safety Features
Safeguard your Home UPS from overloads, excessive mains voltages, short circuits, installation mishaps and battery damage due to low voltage situations.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
Battery backup and surge protection
Outlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
