Stock Status: 1x unit in stock
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Specs
| Weight & dimensions |
| Width |
447 mm |
| Depth |
57 mm |
| Height |
44 mm |
| Weight |
2.5 kg |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage temperature (T-T) |
-25 - 65 °C |
| Power |
| Nominal input voltage |
120 V |
| AC input frequency |
50 - 60 Hz |
| Nominal output voltage |
120 V |
| Load capacity |
2400 VA |
| Maximum input current per phase |
20 A |
| Maximum total current draw per phase |
20 A |
| Ports & interfaces |
| Input connection type |
NEMA 5-20P |
| Output connections |
10x NEMA 5-20R |
| Design |
| Product colour |
Black |
| Features |
| Cable length |
3.66 m |
| Certification |
| Certification |
cUL Recognized,CSA,UL 1363,UL Recognized, RoHS |
Features

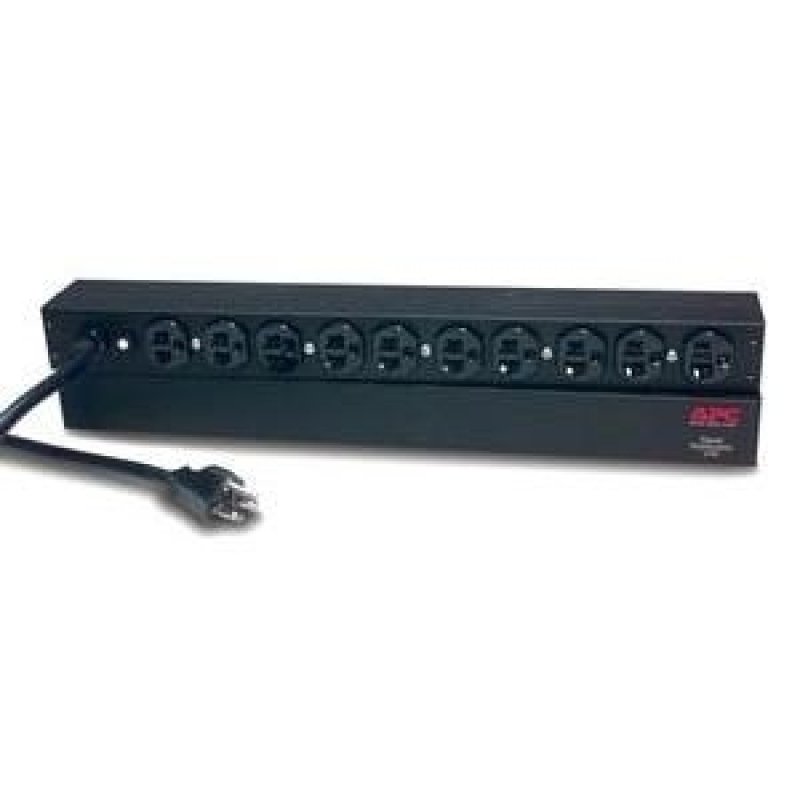

APC Rack PDU, Basic, 1U, 20A, 120V. Product colour: Black. Input connection type: NEMA 5-20P, Output connections: 10x NEMA 5-20R. Cable length: 3.66 m. Nominal input voltage: 120 V, AC input frequency: 50 - 60 Hz, Nominal output voltage: 120 V. Certification: cUL Recognized,CSA,UL 1363,UL Recognized, RoHS
Product Description
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
