Stock Status: 1x unit in stock

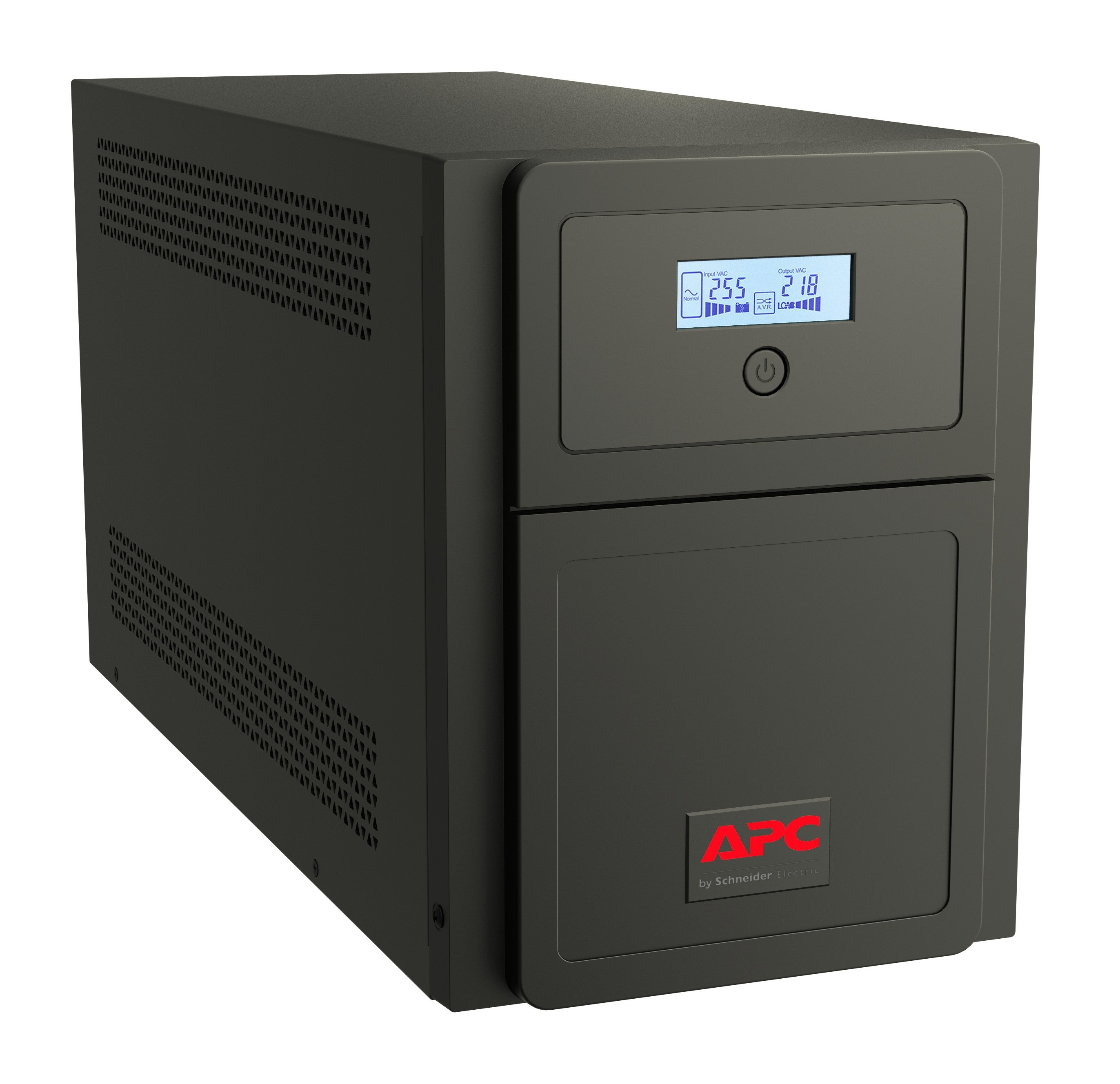

This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 3kVA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C20 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The UPS has an intelligent card slot for an optional network management card (APV9602) that enables network-based UPS monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV209.
Specs
| Weight & dimensions |
| Width |
180 mm |
| Depth |
455 mm |
| Height |
240 mm |
| Weight |
25.2 kg |
| Battery width |
32.6 cm |
| Battery depth |
60.1 cm |
| Battery height |
41 cm |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Ports & interfaces |
| AC outlet types |
IEC 320 |
| AC outlets quantity |
6 AC outlet(s) |
| USB port |
Yes |
| SmartSlot |
No |
| SmartConnect port |
No |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
9 Ah |
| Battery voltage |
12 V |
| Number of batteries supported |
4 |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
4 h |
| Cold start |
Yes |
| Battery weight |
28.9 kg |
| Design |
| Form factor |
Tower |
| Product colour |
Black |
| Display type |
LCD |
| LED indicators |
Yes |
| International Protection (IP) code |
IP20 |
| Features |
| UPS topology |
Line-Interactive |
| Output power capacity |
3 kVA |
| Output power |
2100 W |
| Waveform |
Sine |
| Input operation voltage (min) |
157 V |
| Input operation voltage (max) |
303 V |
| Input frequency |
45/65 Hz |
| Output operation voltage (min) |
230 V |
| Output operation voltage (max) |
230 V |
| Output frequency |
50/60 Hz |
| Output voltage regulation |
-1 - 1% |
| Automatic Voltage Regulation (AVR) |
Yes |
| Maximum current |
25 A |
| Crest factor |
3:1 |
| Noise level |
45 dB |
| Power protection features |
Overload, Short circuit |
| Audible alarm(s) |
Yes |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| Logistics data |
| Harmonized System (HS) code |
85078000 |
| Certification |
| Certification |
CE |
| Packaging content |
| Cables included |
USB cable |
| Management card included |
No |
| Manual |
Yes |
Features
APC Easy UPS 1 Ph Line Interactive, 3kVA, Tower, 230V, 6 IEC C13 outlets, AVR, Dry Contact, LCD, W/O Network Card support. UPS topology: Line-Interactive, Output power capacity: 3 kVA, Output power: 2100 W. AC outlet types: IEC 320, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Display type: LCD. Certification: CE
Product Description
This APC Single phase Easy UPS is designed for essential power protection needs of small to medium businesses even in the most unstable power conditions. This 3kVA line interactive tower UPS provides pure sine wave power to handle a wide voltage range and inconsistent power conditions. The plug and play SMV comes with IEC 320 C20 input connection and 6x IEC 320 C13 outlets. The line interactive UPS supports communication interfaces like the USB port and RS-232 for monitoring and management. The UPS has an intelligent card slot for an optional network management card (APV9602) that enables network-based UPS monitoring and management. The Easy UPS and built-in lead-acid battery are covered by a 2-year warranty. Ideal for business PC/workstations, small offices, server rooms, audio/video systems, and retail point-of-sale. The UPS is compatible with the replacement battery APCRBCV209.
