Stock Status: 1x unit in stock

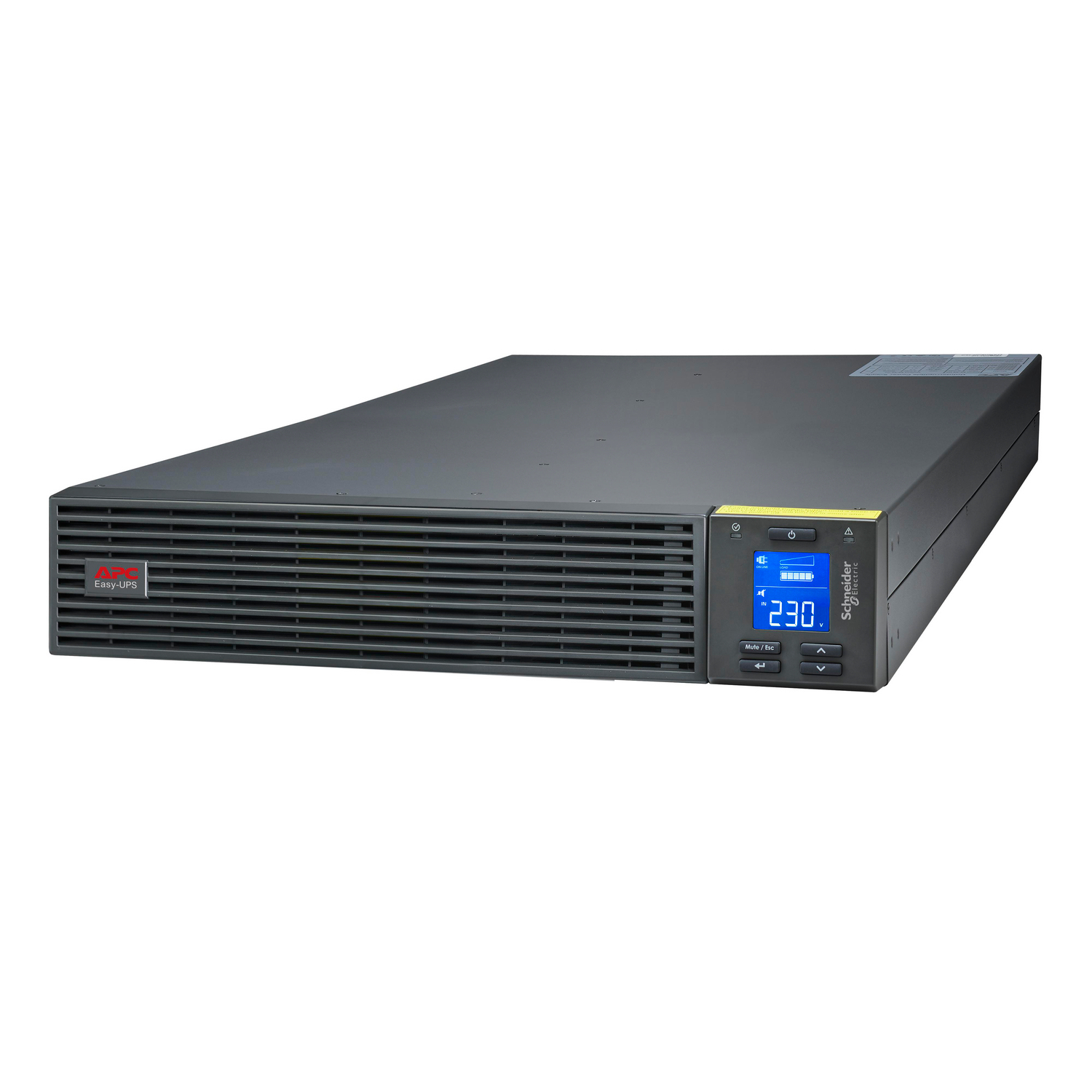

"This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity." "This 6kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions." "The SRV comes with hard wire 3-wire(1P+N+E) input and 1x hard wire 3-wire(1P+N+E) outlet." "The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGLS9901I) that enables network-based UPS monitoring and management." "The UPS can connect to EcoStruxure IT or third-party centralized management platforms." "The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS." "The UPS is compatible with SRVRK1 and SRVRK2 rail kit sold separately." "The Easy UPS has a 2-year warranty." "Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT."
Specs
| Weight & dimensions |
| Width |
438 mm |
| Depth |
615 mm |
| Height |
87 mm |
| Weight |
14 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 14763.6 m |
| Ports & interfaces |
| AC outlet types |
Hard Wire 3-wire (1P + N + E) |
| Power plug |
Terminal |
| USB port |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port type |
USB Type-B |
| Serial interface |
Yes |
| Serial ports quantity |
1 |
| Emergency Power Off (EPO) connector |
Yes |
| SmartSlot |
Yes |
| Other features |
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
3 h |
| Automatic battery test |
Yes |
| Design |
| Form factor |
Rackmount |
| Product colour |
Black |
| Rack capacity |
2U |
| Display type |
LCD |
| LED indicators |
Yes |
| Features |
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
6 kVA |
| Output power |
6000 W |
| Waveform |
Pure sine |
| Input frequency |
40/70 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
600 J |
| Crest factor |
3:1 |
| ECO mode |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Audible alarm(s) |
Yes |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| Auto-restart |
Yes |
| Maintenance-free |
Yes |
| Logistics data |
| Harmonized System (HS) code |
85078000 |
| Packaging data |
| Software CD |
Yes |
| Package width |
600 mm |
| Package depth |
760 mm |
| Package height |
240 mm |
| Package weight |
18 kg |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
CE, IEC 62040-1-1, IEC 62040-1-2
REACH |
| Packaging content |
| Cables included |
USB cable |
| Manual |
Yes |
Features
APC Easy UPS On-Line, 6kVA/6kW, Rackmount 2U, 230V, 1x Hard wire 3-wire(1P+N+E) outlet, Intelligent Slot, Extended runtime, No battery, W/O rail kit. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 6000 W. AC outlet types: Hard Wire 3-wire (1P + N + E), Power plug: Terminal, USB port type: USB Type-B. Battery technology: Sealed Lead Acid (VRLA), Battery recharge time: 3 h. Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Compliance certificates: RoHS, Certification: CE, IEC 62040-1-1, IEC 62040-1-2 REACH
Product Description
"This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity." "This 6kVA double-conversion on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions." "The SRV comes with hard wire 3-wire(1P+N+E) input and 1x hard wire 3-wire(1P+N+E) outlet." "The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGLS9901I) that enables network-based UPS monitoring and management." "The UPS can connect to EcoStruxure IT or third-party centralized management platforms." "The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS." "The UPS is compatible with SRVRK1 and SRVRK2 rail kit sold separately." "The Easy UPS has a 2-year warranty." "Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT."
