Stock Status: 1x unit in stock

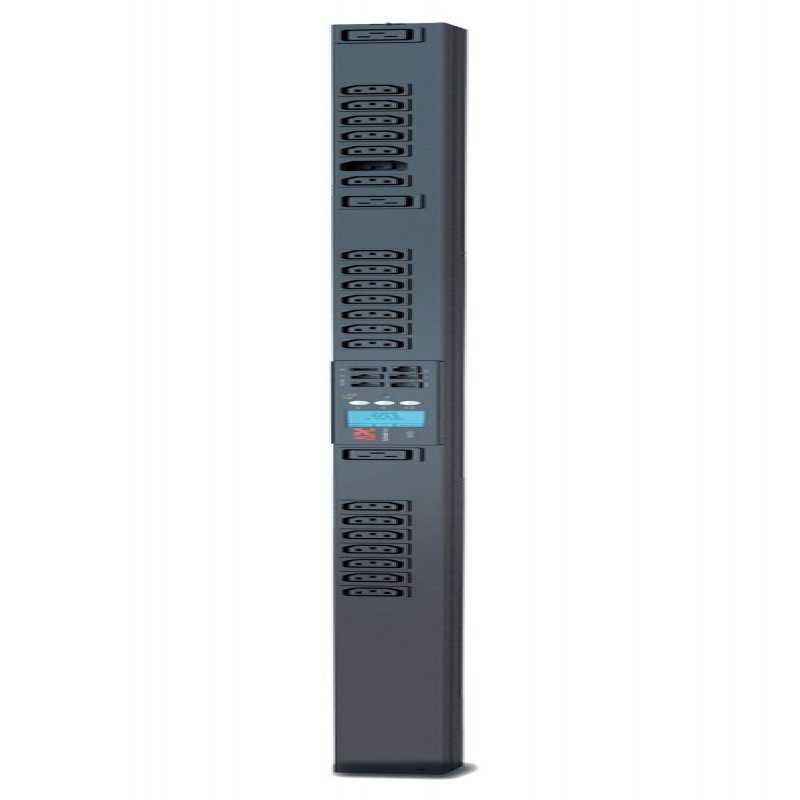

APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection Current metering provides real-time remote monitoring of connected loads Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency
Specs
| Weight & dimensions |
| Width |
56 mm |
| Depth |
51 mm |
| Height |
1829 mm |
| Weight |
5.08 kg |
| Operational conditions |
| Operating temperature (T-T) |
-5 - 45 °C |
| Storage temperature (T-T) |
-25 - 65 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Non-operating altitude |
0 - 15000 m |
| Power |
| Nominal input voltage |
200-230 V |
| Maximum current |
20 A |
| AC input frequency |
50 - 60 Hz |
| Nominal output voltage |
200-230 V |
| Load capacity |
3680 VA |
| Maximum input current per phase |
16 A |
| Maximum total current draw per phase |
16 A |
| Maximum power |
3680 W |
| Ports & interfaces |
| AC outlets quantity |
24 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Design |
| PDU types |
Metered, Metered-by-outlet |
| Rack capacity |
0U |
| Mounting |
Vertical |
| Product colour |
Black |
| Management features |
| Monitoring |
Current, Power, Voltage |
| Features |
| LED indicators |
Yes |
| Logistics data |
| Total carbon footprint (kg of CO2e) |
4728.07 |
| Packaging data |
| Package weight |
8.35 kg |
| Package width |
163 mm |
| Package depth |
117 mm |
| Package height |
2037 mm |
| Certification |
| Compliance certificates |
RoHS |
| Certification |
EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, PSE, UL Listed, VCCI Class A, VDE |
Related Products
|
apc 1.8m C13 To C14 Power Cable Kit Qty 6 Ap8706s-ww - AD01
|
|
apc Apc 2.4m Power Cable C19 To Bs1363a Uk Plug Ap9895 - AD01
|
|
Apc - Racks And Pdus Power Cord Iec 320 C19 To Iec 320 C20 Ap9877
|
|
Power Cord, C19 To IEC309 16A, 2.5m AP9876 - C2000
|
|
Power Cord, Locking C19 To CEE/7 Schuko, 3.0m AP8755 - C2000
|
|
Power Cord, C19 To CEE/7 Schuko, 2.5m AP9875 - C2000
|
|
Apc - Smart Ups&smart Ups X Smart-ups Rt 2200va Marine In Surtd2200xlim
|
|
Power Cord Kit (6 Ea), Locking, C19 To C20, 1.8m AP8716S - C2000
|
|
Power Cord Kit (6 Ea), Locking, C19 To C20, 1.2m AP8714S - C2000
|
|
APC Smart-UPS RT 1000 - Marine - UPS - AC 220/230/240 V - 700 Watt - 1000 VA - RS-232 - Output Connectors: 6 - 2U - Black SURT1000XLIM - C2000
|
Features
APC Rack PDU 2G, Metered-by-Outlet, ZeroU, 16A, 100-240V, (21) C13 & (3) C19. PDU types: Metered, Metered-by-outlet, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler. Monitoring: Current, Power, Voltage. Nominal input voltage: 200-230 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, Certification: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, PSE, UL...
Product Description
APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection Current metering provides real-time remote monitoring of connected loads Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency
