Stock Status: 1x unit in stock
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Power-saving outlets
Automatically cuts power to idle equipment to conserve electricity.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Extendable Run Time
Additional batteries can be added to provide power to the load for an extended period of time in the event of utility supply failure.
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
Cold-start capable
Provides temporary battery power when the utility power is out.
Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Dataline Surge Protection
Provides protection of connected equipment from power surges on the data lines.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
Specs
| Weight & dimensions |
| Width |
112 mm |
| Depth |
380 mm |
| Height |
301 mm |
| Weight |
12.7 kg |
| Package width |
238 mm |
| Package depth |
488 mm |
| Package height |
387 mm |
| Package weight |
14.3 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 9000 m |
| Non-operating altitude |
0 - 15000 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| AC outlets quantity |
10 AC outlet(s) |
| Number of output IEC jumpers |
2 |
| USB port |
Yes |
| Other features |
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
| Packaging content |
1x Detachable IEC Power Cord |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
187 VAh |
| Typical backup time at full load |
3.7 min |
| Typical backup time at half load |
12.4 min |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
8 h |
| Hot-swap battery |
Yes |
| Automatic battery test |
Yes |
| Cold start |
Yes |
| Replacement battery cartridge |
APCRBC124 |
| Design |
| Product colour |
Black |
| Display type |
LCD |
| Certification |
A-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS |
| Features |
| UPS topology |
Line-Interactive |
| Output power capacity |
1.5 kVA |
| Output power |
865 W |
| Waveform |
Sine |
| Input operation voltage (min) |
156 V |
| Input operation voltage (max) |
300 V |
| Input frequency |
50/60 Hz |
| Output frequency regulation |
50/60 Hz |
| Automatic Voltage Regulation (AVR) |
Yes |
| Surge energy rating |
441 J |
| Hold time (min) |
10 ms |
| Hold time (max) |
12 ms |
| Efficiency |
98.9% |
| Crest factor |
3:1 |
| Noise level |
45 dB |
| Surge protection |
Yes |
| Surge protection features |
Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone |
| Audible alarm(s) |
Yes |
| Audible alarm modes |
Low battery alarm, Overload alarm |
| Logistics data |
| Products per pallet |
20 pc(s) |
| Harmonized System (HS) code |
85078000 |
| Products per master (outer) case |
1 pc(s) |
| Packaging data |
| Cables included |
Phone (RJ-11), USB cable |
| Manual |
Yes |
| Warranty card |
Yes |
| Software CD |
Yes |
| Bundled software |
PowerChute Personal Edition |
| Technical details |
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
RoHS |
Features

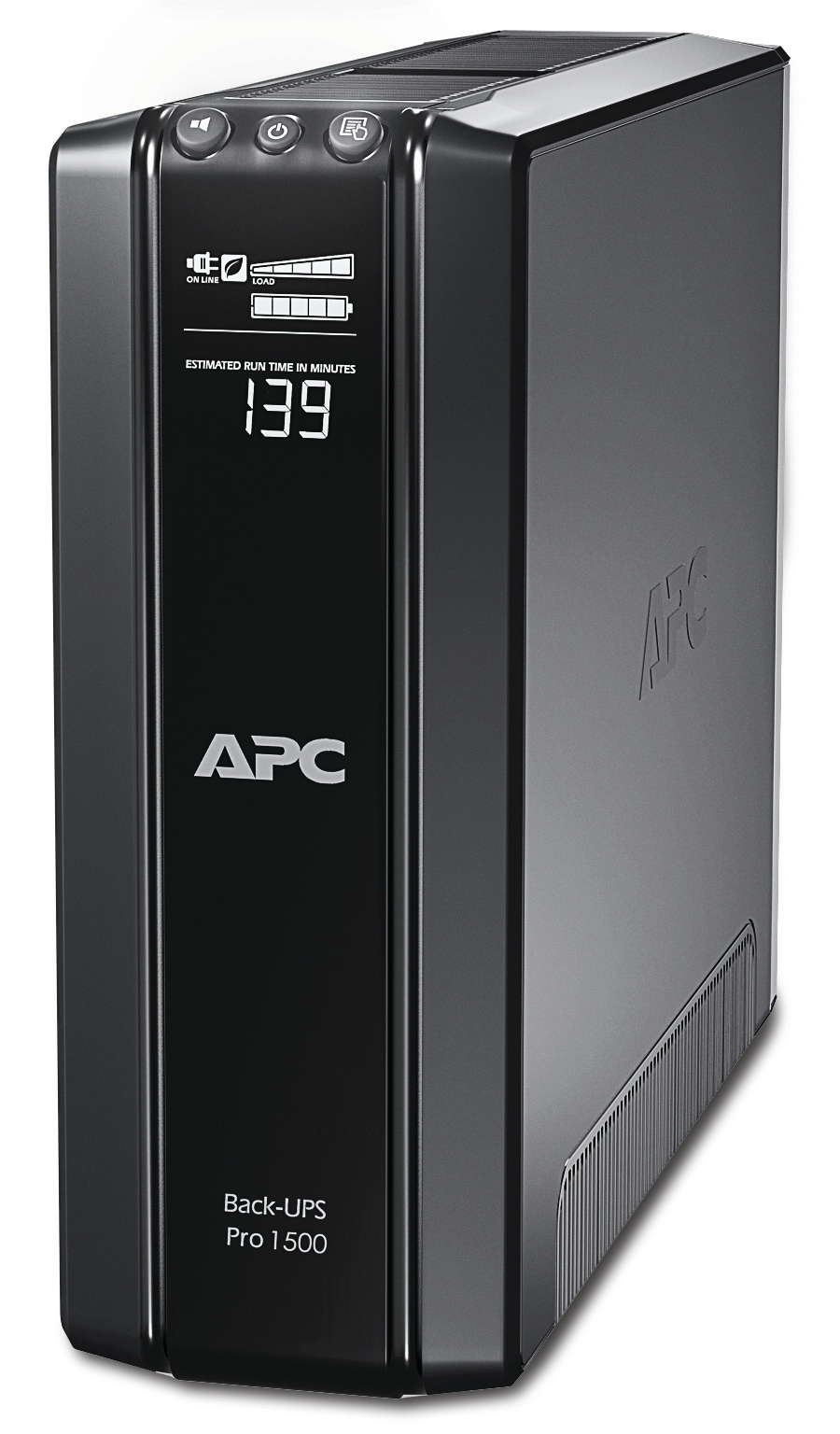

APC Back-UPS Pro. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 865 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 187 VAh, Typical backup time at full load: 3.7 min. Product colour: Black, Display type: LCD, Certification: A-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS. Width: 112 mm, Depth: 380 mm, Height: 301 mm
Product Description
Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Power-saving outlets
Automatically cuts power to idle equipment to conserve electricity.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Extendable Run Time
Additional batteries can be added to provide power to the load for an extended period of time in the event of utility supply failure.
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment
Cold-start capable
Provides temporary battery power when the utility power is out.
Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC's Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Dataline Surge Protection
Provides protection of connected equipment from power surges on the data lines.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
