Stock Status: 1x unit in stock

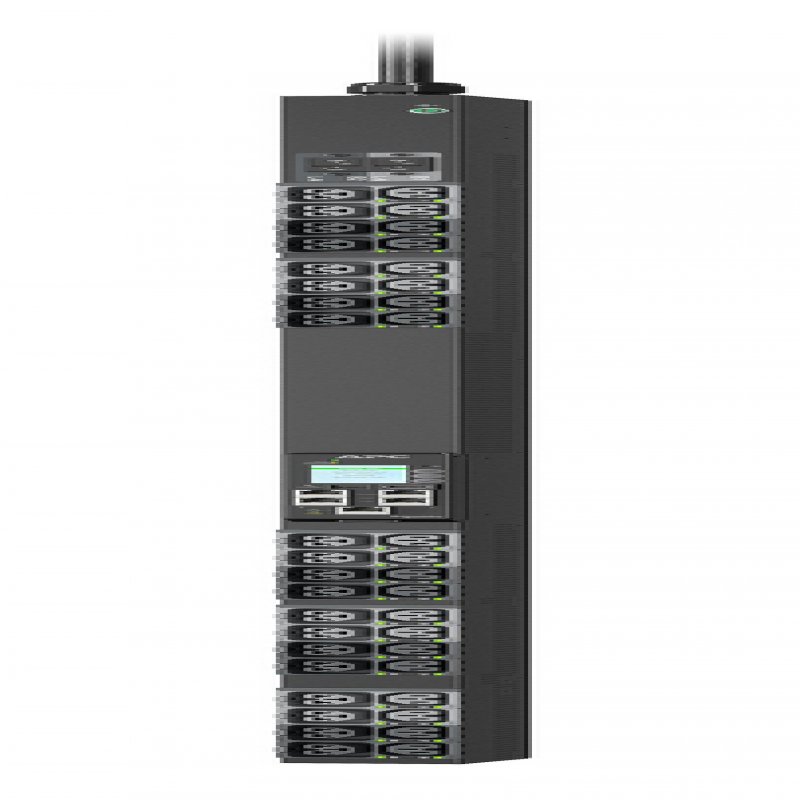

APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. Switched outlets allow for turning outlets on or off remotely. Outlet and PDU level power metering provide power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is IEC-309 32 A and features 20 count C13/C15/C19/C21 combo outlets and 20 count C13/C15 outlets.
Specs
| Weight & dimensions |
| Width |
56 mm |
| Depth |
75 mm |
| Height |
1490 mm |
| Weight |
7.5 kg |
| Operational conditions |
| Operating temperature (T-T) |
23 - 140 °F |
| Storage temperature (T-T) |
-25 - 65 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
0 - 3048 m |
| Non-operating altitude |
0 - 15240 m |
| Power |
| Nominal input voltage |
230 V |
| Maximum current |
32 A |
| AC input frequency |
50/60 Hz |
| Nominal output voltage |
230 V |
| Load capacity |
7400 VA |
| Number of phases |
3 |
| Ports & interfaces |
| AC outlets quantity |
40 AC outlet(s) |
| AC outlet types |
C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Ethernet LAN (RJ-45) ports |
5 |
| USB ports quantity |
1 |
| Design |
| PDU types |
Metered |
| Rack capacity |
0U |
| Type |
Three-phase |
| Product colour |
Black |
| Management features |
| Management platform |
NMC3 |
| Packaging data |
| Package weight |
8.2 kg |
| Package width |
116 mm |
| Package depth |
208 mm |
| Package height |
1720 mm |
| Certification |
| Certification |
UKCA, CE, EN 62368-1, RoHS |
Features
APC NetShelter Rack PDU Advanced Gen 2, Switched Metered Outlet, 7.4kW, 1Phase, 230V, 32A, 332P6, 40 Outlet. PDU types: Metered, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 40 AC outlet(s), AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler. Management platform: NMC3. Nominal input voltage: 230 V, Maximum current: 32 A, AC input frequency: 50/60 Hz. Certification: UKCA, CE, EN 62368-1, RoHS
Product Description
APC NetShelter Rack PDU Advanced (11K Series) provides reliable power distribution to IT equipment within server and/or networking racks. Switched outlets allow for turning outlets on or off remotely. Outlet and PDU level power metering provide power visibility and notification of potential overload. 4-in-1 combination outlets which can be used as either C13, C19, C15, or C21 outlets provide unparalleled deployment flexibility. Maximum outlet density with 40 outlets in a 2.2 in. (5.6 cm) wide form factor allows for more equipment in the rack. Outlets on the PDUs are color coded and labeled by breaker. Live Swap the NMC3 to minimize downtime in the unlikely event of an NMC power event. The rack PDU integrates with EcoStruxure IT through an NMC3 and can be accessed and configured via web, SNMP, and command line interface (CLI). A 10-foot (3-meter) input cord makes it easier for the PDU to reach the power supply. Rated to operate up to 60 C (140 F) at full load ensures reliability and availability even in today's high-density deployments. One gigabit Ethernet/network port (10/100/1000) enhances and standardizes network connectivity. Two link ports are available to cascade to up to 32 PDUs, with a network port sharing (NPS) feature to enable power sharing between Rack PDUs in the cascading group. Track or bill power usage confidently with 1% metering accuracy. Two environmental sensor ports allow for optional sensors (sold separately) to be connected. For data center deployments across multiple regions, these PDUs have the following certifications: UL, CE, CSA, UKCA, Nemiko, PSE, KC, China RoHS, RCM, and CMIM. This model’s input power cord is IEC-309 32 A and features 20 count C13/C15/C19/C21 combo outlets and 20 count C13/C15 outlets.
