Stock Status: 1x unit in stock
Features:
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities
Specs
| Weight & dimensions |
| Dimensions (WxDxH) |
56 x 44 x 1619 mm |
| Weight |
5.57 kg |
| Operational conditions |
| Operating temperature (T-T) |
-25 - 65 °C |
| Storage temperature (T-T) |
0 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Power |
| Nominal input voltage |
230 V |
| Nominal output voltage |
230 V |
| Output voltage |
230 V |
| Load capacity |
7680 VA |
| Maximum input current per phase |
32 A |
| Maximum total current draw per phase |
32 A |
| Maximum power |
7680 W |
| Ports & interfaces |
| AC outlets quantity |
24 AC outlet(s) |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
IEC 60309 |
| Input connection type |
IEC 309 32A |
| Output connections |
(20) IEC 320 C13
(4) IEC 320 C19
|
| I/O ports |
(20) IEC 320 C13
(4) IEC 320 C19
IEC 309 32A
|
| Design |
| PDU types |
Basic |
| Rack capacity |
0U |
| Type |
Single-phase |
| Mounting |
Vertical |
| Product colour |
Black |
| Features |
| Cable length |
3050 m |
| Packaging data |
| Package dimensions (WxDxH) |
152 x 127 x 2134 mm |
| Package weight |
6.48 kg |
Features

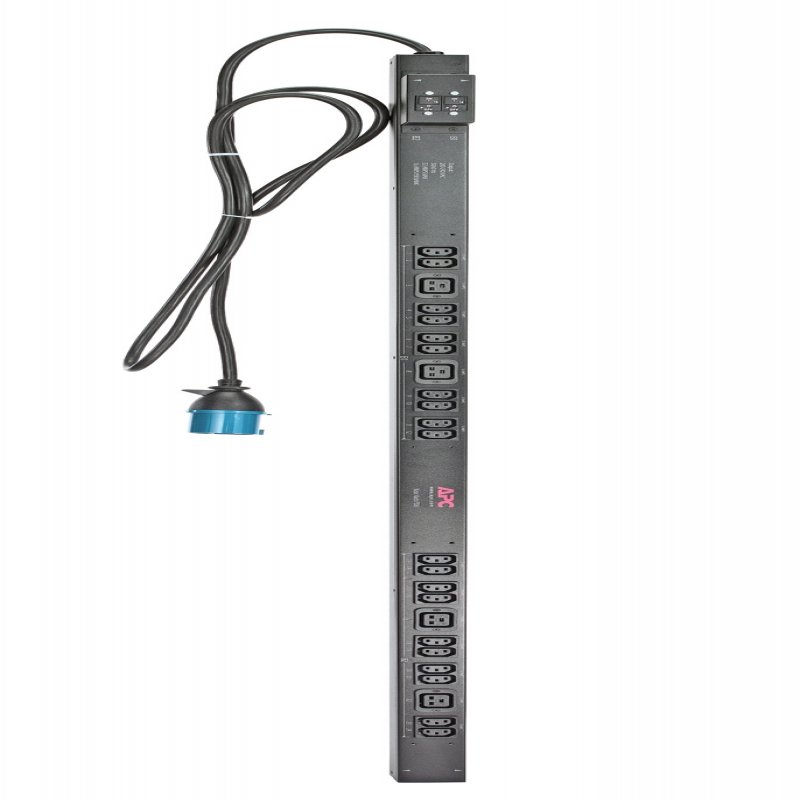

APC RACK PDU. BASIC. ZERO U. 32A. 230V. (20)C13 & (4)C19. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3050 m. Nominal input voltage: 230 V, Nominal output voltage: 230 V, Output voltage: 230 V. Dimensions (WxDxH): 56 x 44 x 1619 mm, Weight: 5.57 kg
Product Description
Features:
Single input power source
Toolless Mounting Capabilities
Vertical Mounting Capabilities
