Stock Status: 1x unit in stock
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Network manageable
Provides remote management of the UPS over the network.
Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial Connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Specs
| Weight & dimensions |
| Width |
432 mm |
| Depth |
667 mm |
| Height |
85 mm |
| Weight |
37.3 kg |
| Package width |
596 mm |
| Package depth |
869 mm |
| Package height |
243 mm |
| Package weight |
45.4 kg |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 15000 m |
| Ports & interfaces |
| AC outlet types |
C13 coupler, C19 coupler |
| Power plug |
C20 coupler |
| AC outlets quantity |
9 AC outlet(s) |
| Number of output IEC jumpers |
2 |
| USB port |
Yes |
| SmartSlot |
Yes |
| Other features |
| Nominal output voltage |
230 V |
| Nominal input voltage |
230 V |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery capacity |
702 VAh |
| Typical backup time at full load |
9.8 min |
| Typical backup time at half load |
25.3 min |
| Battery life (max) |
5 year(s) |
| Battery recharge time |
3 h |
| Hot-swap battery |
Yes |
| Automatic battery test |
Yes |
| Design |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Rack capacity |
2U |
| Cable length |
1.83 m |
| LED indicators |
Battery replacement |
| Certification |
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IEC 60950, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI |
| Features |
| UPS topology |
Line-Interactive |
| Output power capacity |
2.2 kVA |
| Output power |
1980 W |
| Waveform |
Sine |
| Input frequency |
50/60 Hz |
| Output operation voltage (min) |
208 V |
| Output operation voltage (max) |
240 V |
| Output frequency regulation |
50/60 Hz |
| Automatic Voltage Regulation (AVR) |
Yes |
| Surge energy rating |
645 J |
| Response time |
4 ms |
| Hold time (min) |
2 ms |
| Hold time (max) |
10 ms |
| Efficiency |
98.1% |
| Emergency Power Off (EPO) |
Yes |
| Noise level |
55 dB |
| Surge protection |
Yes |
| Audible alarm(s) |
Yes |
| Auto-restart |
Yes |
| Logistics data |
| Products per pallet |
8 pc(s) |
| Harmonized System (HS) code |
85078000 |
| Packaging data |
| Rack mount kit |
Yes |
| Cables included |
RS-232, USB cable |
| Manual |
Yes |
| Software CD |
Yes |
| Technical details |
| Sustainability certificates |
Green Premium |
| Compliance certificates |
RoHS |
Features

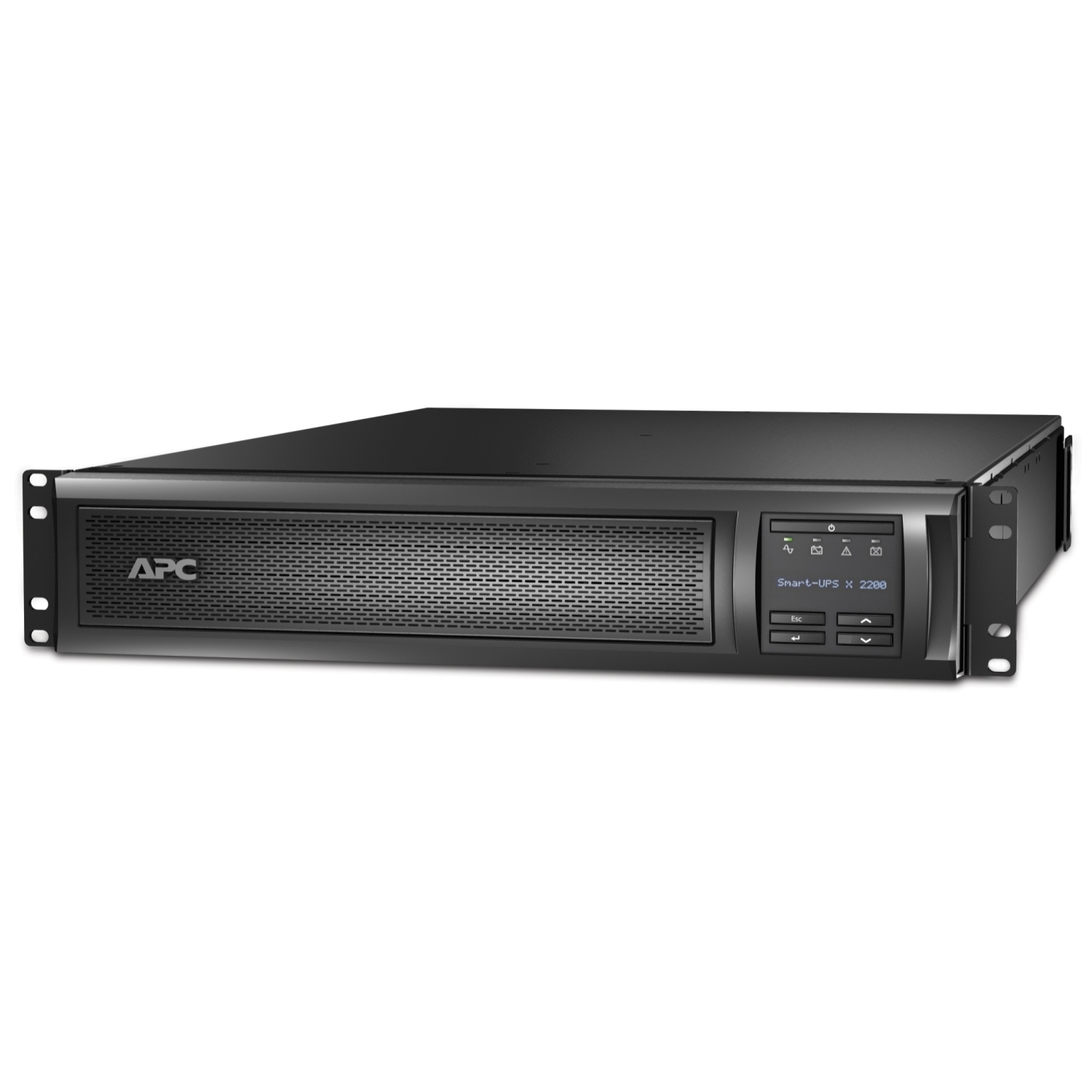

APC Smart-UPS. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1980 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 9 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 702 VAh, Typical backup time at full load: 9.8 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Width: 432 mm, Depth: 667 mm, Height: 85 mm
Product Description
Boost and Trim Automatic Voltage Regulation (AVR)
Gives higher application availability by correcting low and high voltage conditions without using the battery.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Disconnected battery notification
Warns when a battery is not available to provide backup power.
Network manageable
Provides remote management of the UPS over the network.
Audible alarms
Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.
LED status indicators
Quickly understand unit and power status with visual indicators.
Serial Connectivity
Provides management of the UPS via a serial port.
USB connectivity
Provides management of the UPS via a USB port (not available on all models).
Disconnected battery notification
Warns when a battery is not available to provide backup power.
